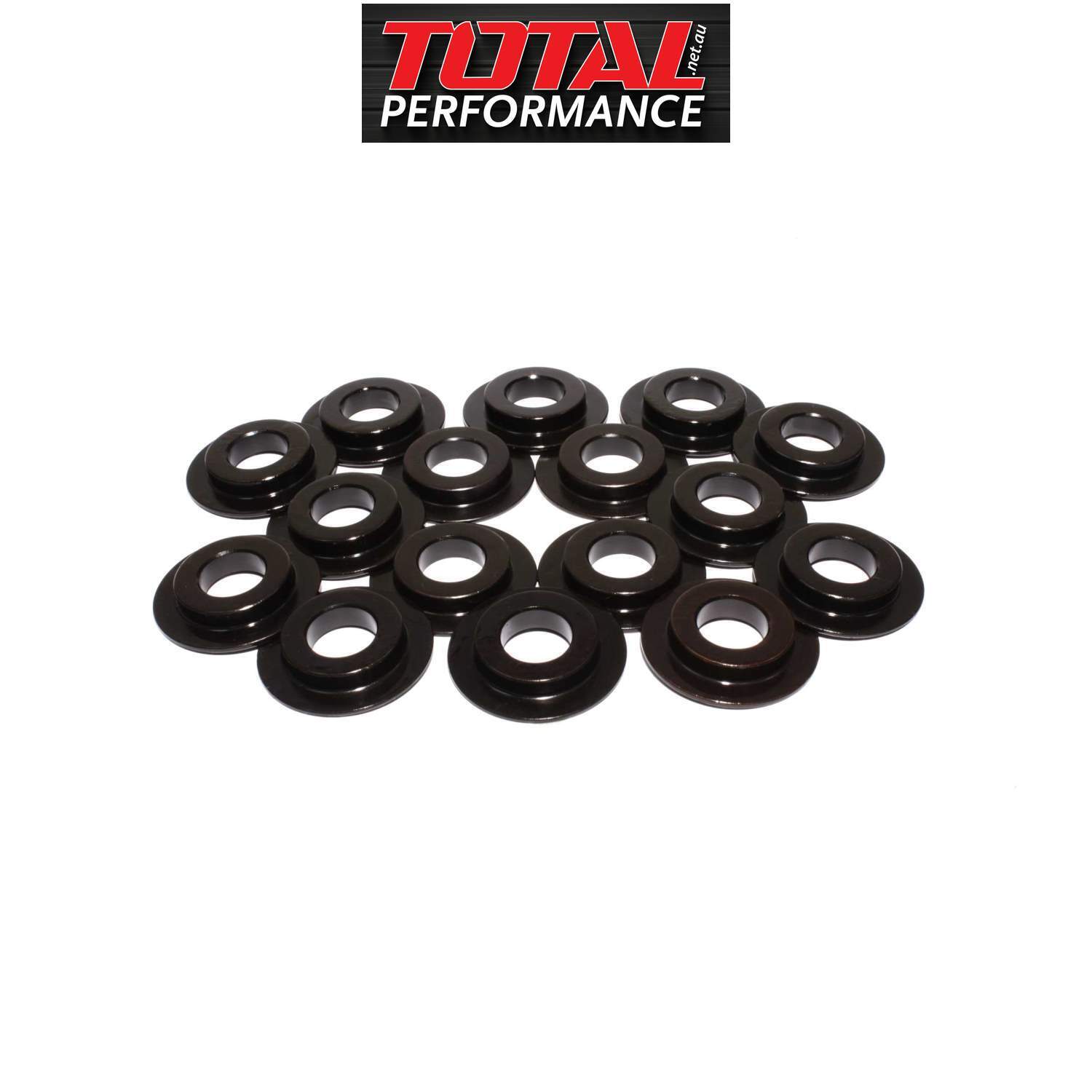

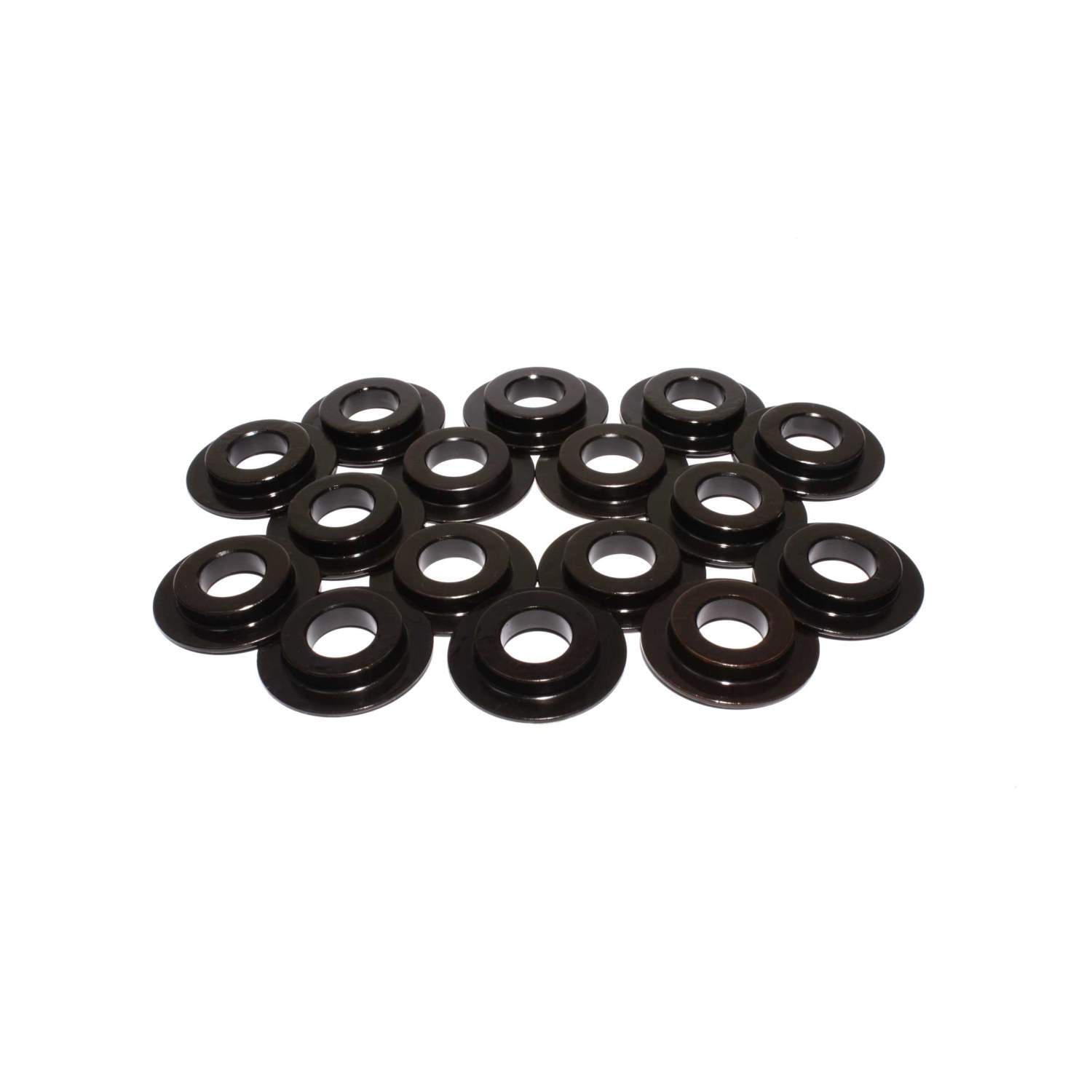

Valve Springs Locators - 570" ID Guide, Suits DRP SSS, Hydraulic Roller Ford 351C, Chevy SBC 350, SBF 302W

SKU: DRP-SL570-16

Valve Springs Locators - 570" ID Guide, Suits DRP SSS, Hydraulic Roller Ford 351C, Chevy SBC 350, SBF 302W

Suits aftermarket cylinder Heads with .570" guides.

$102.01

or 4 payments of $25.50 with Info

IN STOCK

*Free shipping on orders over $200

Description

DRP Valve Springs bottom spring locators. Fits Dual Valve Springs for the Aftermarket Chevy, Ford Windsor, Cleveland Cylinder heads.

*Note may fit some AFR cylinder heads - please check the base of the valve guide.

Made from hardened steel, these premium valve spring locators use an inboard locating shoulder to center the seat and hold the dual valve springs in place.

Locator OD  1.300"

Locator ID   0.575" ID,  (aftermarket bronze valve guides)

Locator Spring ID   0.650"

Locator Thickness:  0.060"

Quantaty:  Set of 16

Specifications

SKU DRP-SL570-16
Brand DRP
Locator Inner Diameter 0.57
Locator Outer Diameter 1.3
Spring Inner Diameter 0.65
Locator Thickness 0.06
