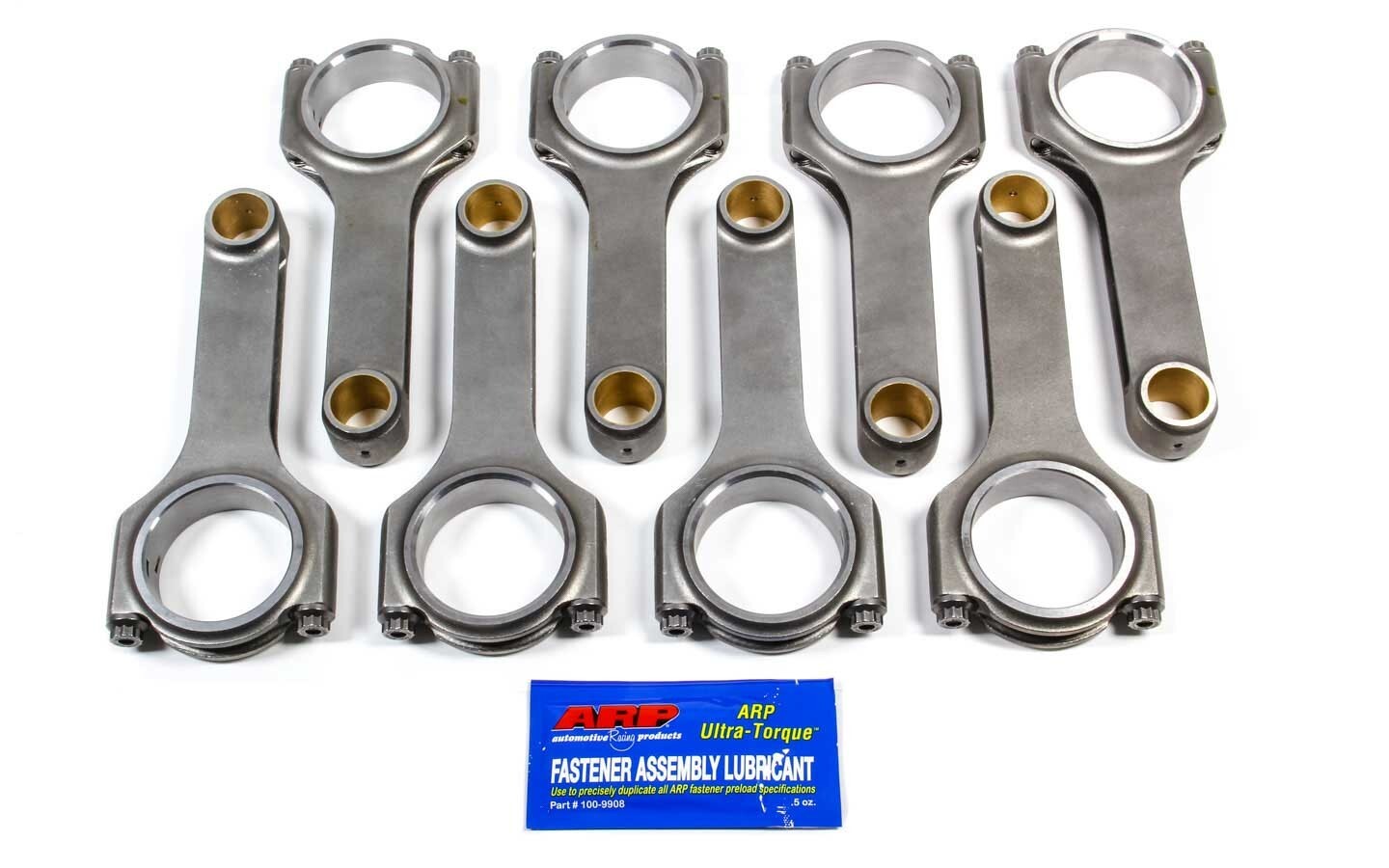

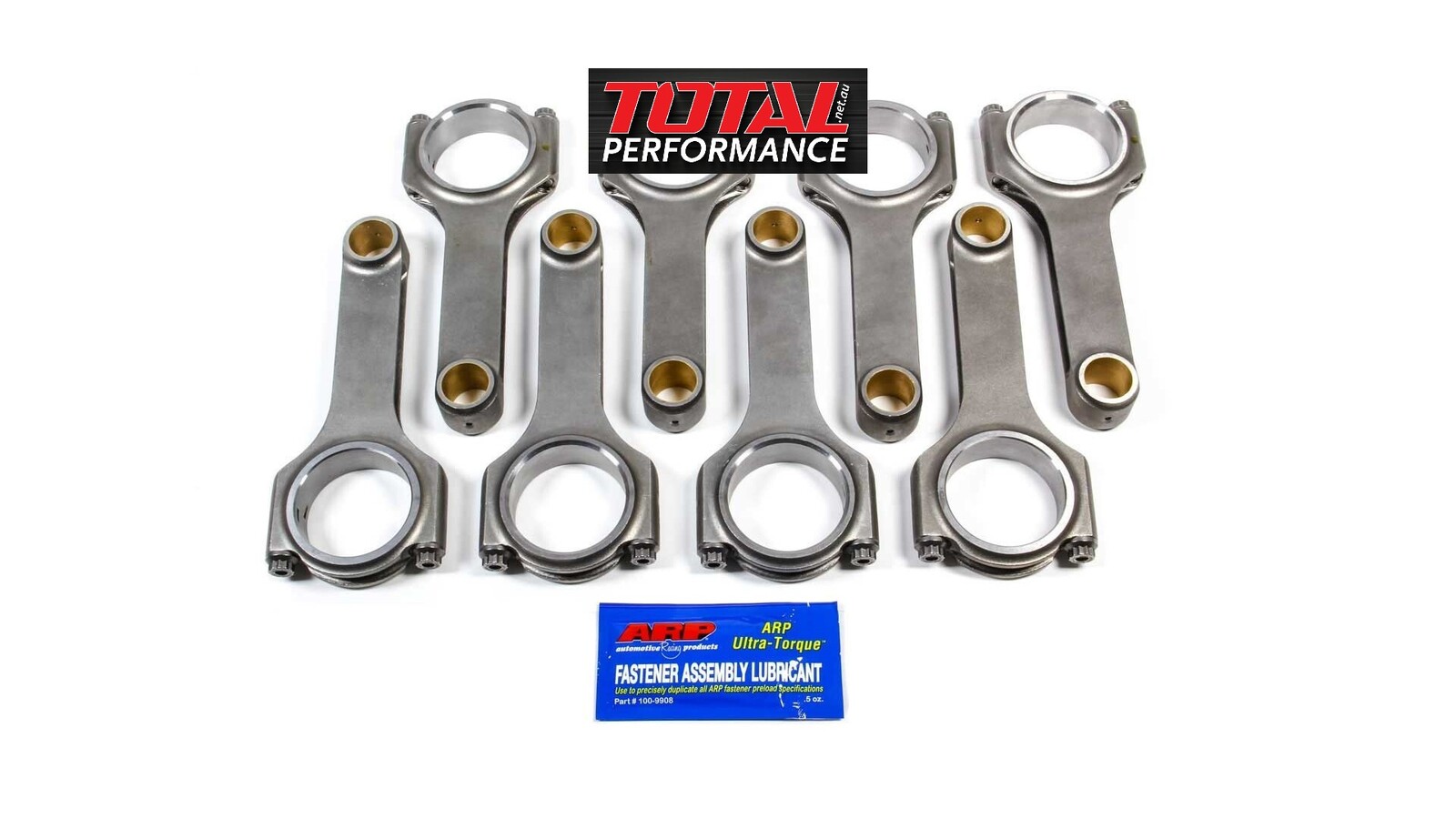

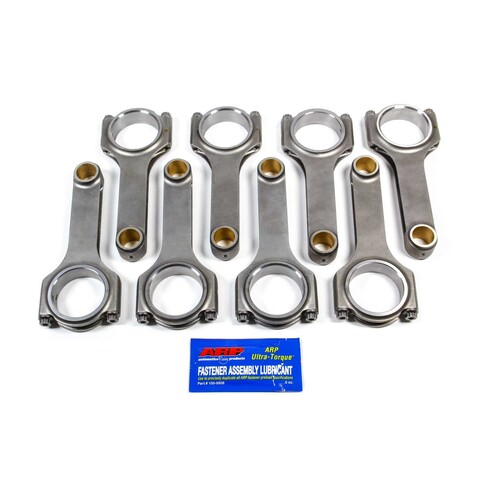

Scat H-beam connecting rods are the strongest Scat connecting rods available by Scat. These Scat H-beam connecting rods are perfect for supercharged and nitrous applications. These rods incorporate a special doweled cap for specific cap-to-rod alignment and are profiled with extra clearance for stroker applications. Forged 4340 material with ARP 7/16 8740 rod bolts make them very strong and affordable. H Beam rods with ARP 8740 Bolts are rated to 750 horsepower on small blocks and 850 on big blocks,
Rod Series: Standard Weight
Rod Length Center to Center (in.): 6.000 in.
Rod Beam Style: H-beam
Rod Material: Forged 4340 steel
Rod Finish: Shot-peened and tumbled
Wrist Pin Style: Floating
Rod Journal Diameter (in.): 2.100 in.
Big End Bore Diameter (in.): 2.2250 in.
Big End Width (in.): 0.940 in.
Pin End Bore Diameter: 0.927 in.
Clearanced for Stroker: No
Cap Retention Style: Cap screw
Connecting Rod Bolt Brand: ARP
Connecting Rod Bolt Diameter: 7/16 in.
Connecting Rod Bolt Material: 8740 chromoly steel
Fastener Tensile Strength (psi): 180,000 psi
Connecting Rod Bolt Head Style: 12-point
Weight Matched Set: Yes
Advertised Weight: (average)
