SKU: 01-421-8

01-421-8 Xtreme Energy 236/242 LSA 110 Hydraulic Roller Cam for Chevrolet Big Block GEN VI


or 4 payments of $167.75 with Info

Sold Out

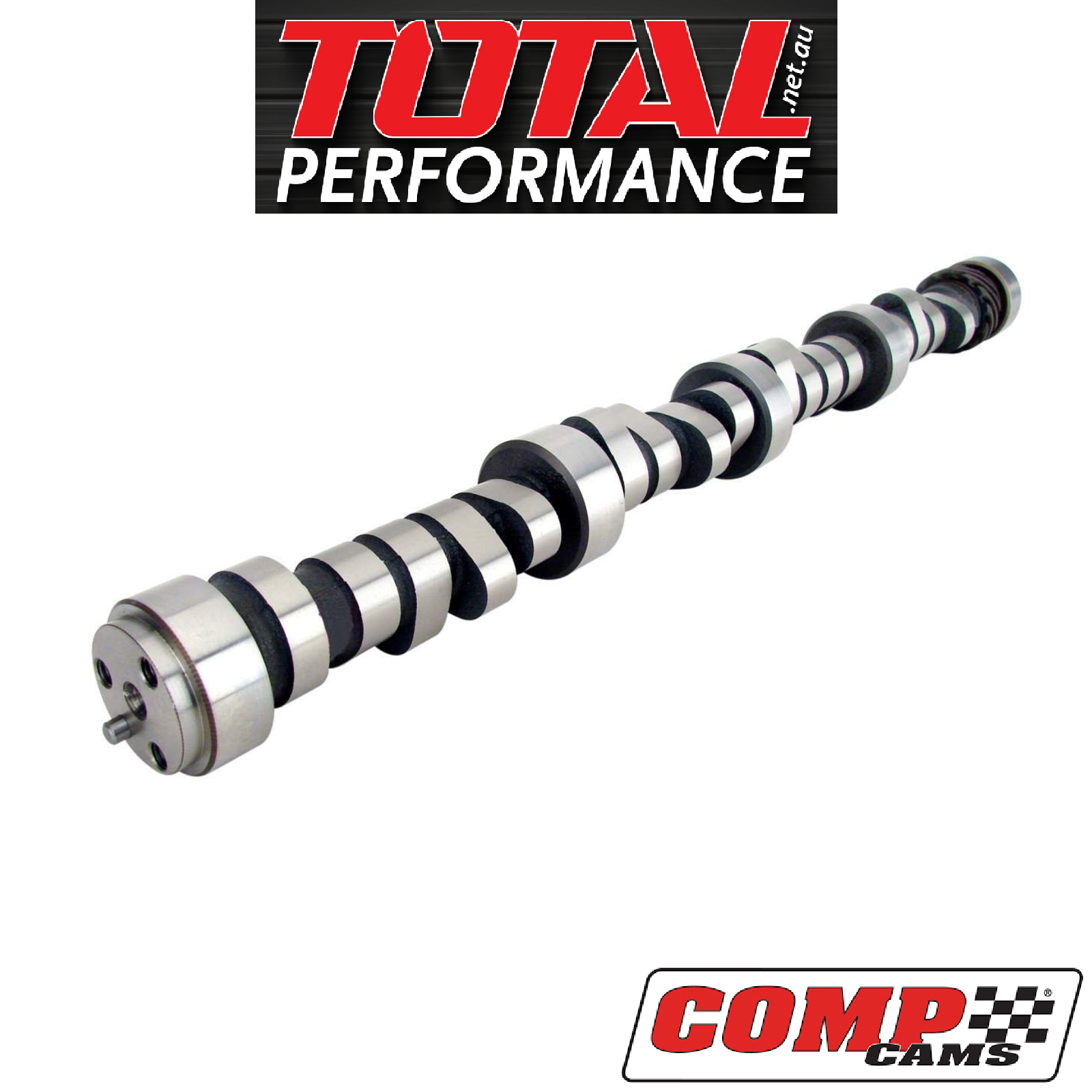

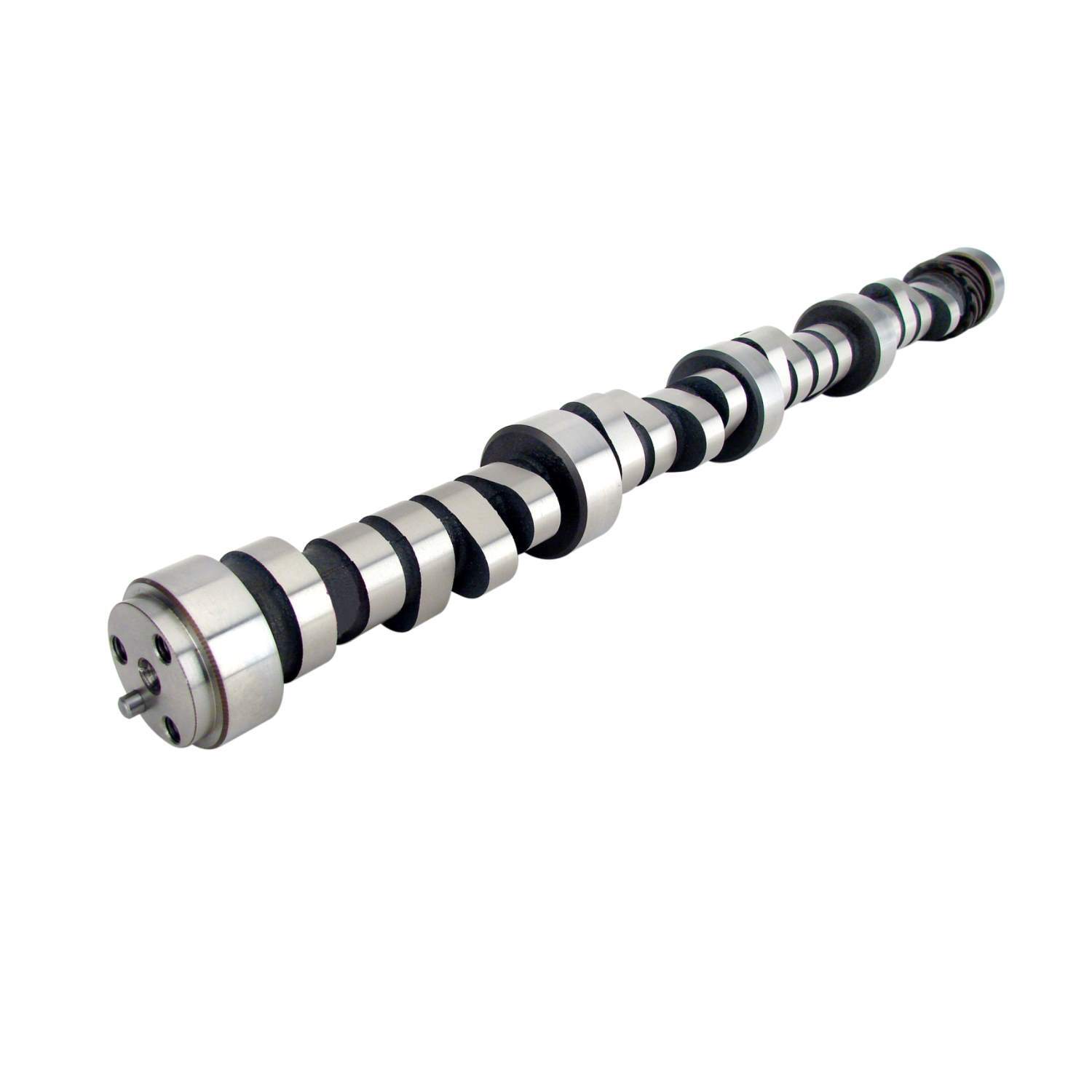

Comp Cams, 01-421-8, Gen 6 Big Block Chevy, Hydraulic Roller Camshaft.

Street/strip applications with 10:1+ compression and 2800+ stall. Rough idle, needs good intake and headers.

Comp Cams Xtreme Energy™ 236/242 Hydraulic Roller Camshaft for Chevy Big Block GEN VI. Best in high performance street and race engines. Needs intake, headers and ower gears. 2600+ stall. Programmer required.

Brand:  Comp Cams

Engine Family:   Chevrolet GEN VI 454 and 502 c.i. 8 Cylinder (1996-1999)

RPM Operating Range:   2,200-6,200

Grind Number:   XR288HR-14

Cam Type:  Hydraulic Roller

Lifter Style:  Hydraulic Roller

Camshaft Series:   Xtreme Energy Computer Controlled

Usage:   Street/Performance

Advertised Intake Duration:  288

Advertised Exhaust Duration:   294

Intake Duration at .050 Inch Lift:   236

Exhaust Duration at .050 Inch Lift:   242

Intake Valve Lift:  0.52

Exhaust Valve Lift:   0.539

Lobe Separation:   114

Exhaust Close ATDC:   5

Intake Open BTDC:  6

Exhaust Open BBDC:   57

Intake Close ABDC:  50

Camshaft Gear Attachment:  3-Bolt

Comp Cams Australia, Total Performance is a Comp Cams Australia Dealer.


SKU 01-421-8
Barcode # 036584063476
Intake Valve Lift 0.521
Camshaft Gear Attachment 3-Bolt
Basic Operating Rpm Range 2,500-6,000
Lobe Separation 110
Cam Type Hydraulic Roller
Lifter Type Hydraulic Roller
Valve Springs Required Yes
Grind Number XR288HR
Intake Duration At .050 Inch Lift 236
Advertised Intake Duration 288
Exhaust Valve Lift 0.54
Camshaft Material Austempered Ductile Iron
Lifters Included No
Camshaft Series Xtreme Energy
Exhaust Duration At .050 Inch Lift 242
Advertised Exhaust Duration 294
