SKU: 35-246-3

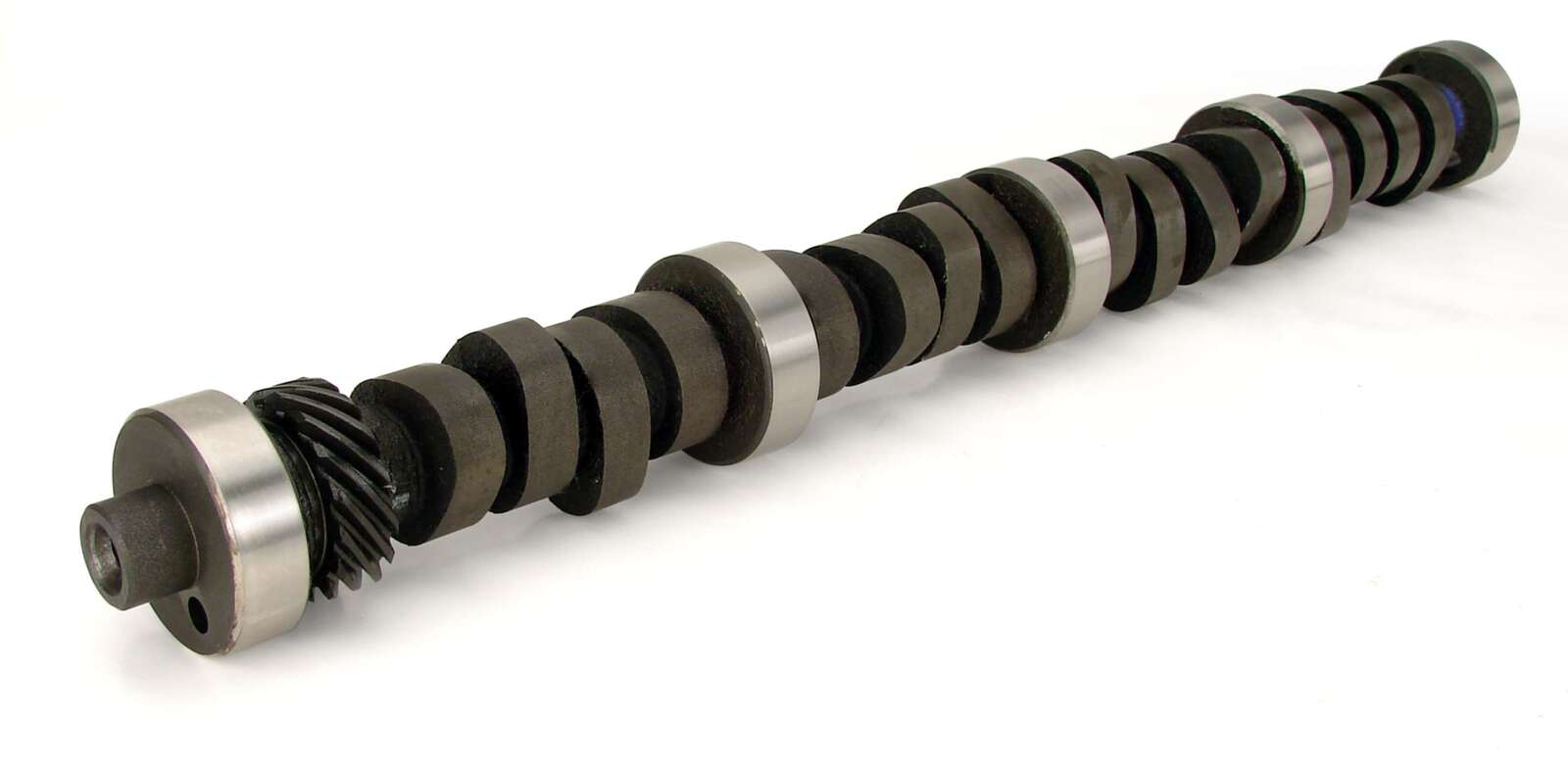

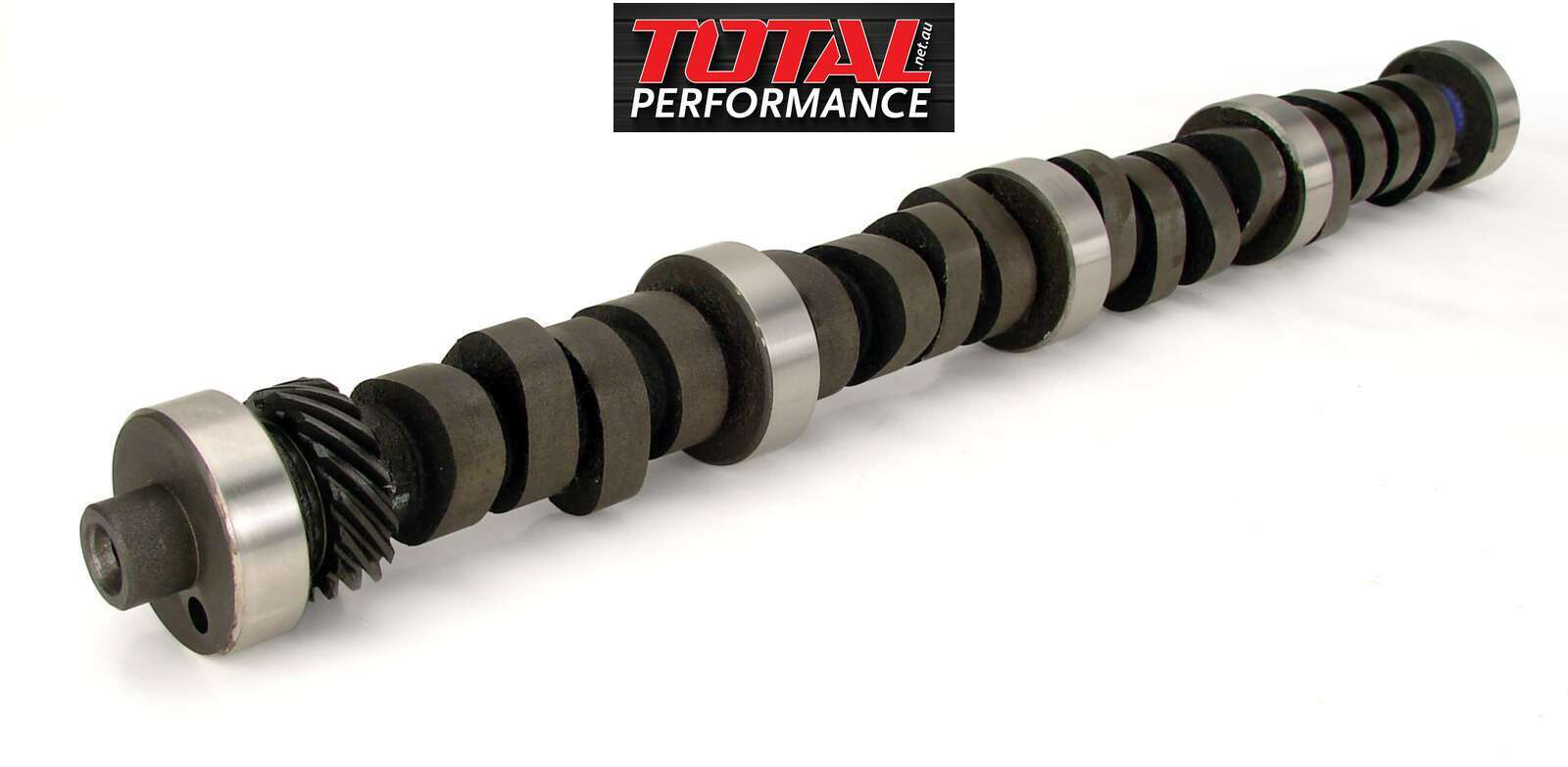

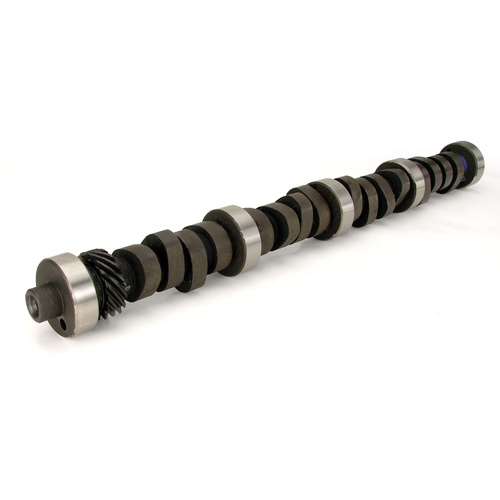

425HP Xtreme Energy 230/236 LSA 110 Hydraulic Flat Tappet Camshaft Ford 302W 347 351W Windsor SBF

RPM Range: 1800-6000

$464.68

or 4 payments of $116.17 with Info

IN STOCK  FREE SHIPPING

Description

Comp Cams all round performance camshaft for Ford Windsor Small Block, Fits 302, 347 351 Windsor.

Very strong torque and throttle response, Recommed 2500+ stall. (depending on cubic inches. )

Produces on average 425HP and 445 lbs/ft in a 347 Windsor Stroker with DRP heads.

Best all round street performacne and driveability camshaft.

Compression: Recommend 10.3:1 to 10.9:1

Specifications

SKU 35-246-3
Barcode # 036584031246
Brand COMP CAMS
intake valve lift 0.519
Exhaust Valve Lift 0.523
Lifter Type Hydraulic Flat Tappet
Advertised Exhaust Duration 286
Advertised Intake Duration 274
Cam Type Hydraulic Flat Tappet
Exhaust Duration At .050 Inch Lift 236
Intake Duration At .050 Inch Lift 230
Lobe Separation 110
Camshaft Series Xtreme Energy
Grind Number XE274H
Basic Operating Rpm Range 1,800-6,000
Lifters Included No
Valve Springs Required Yes
Camshaft Gear Attachment 1-Bolt
Camshaft Material Cast Iron
