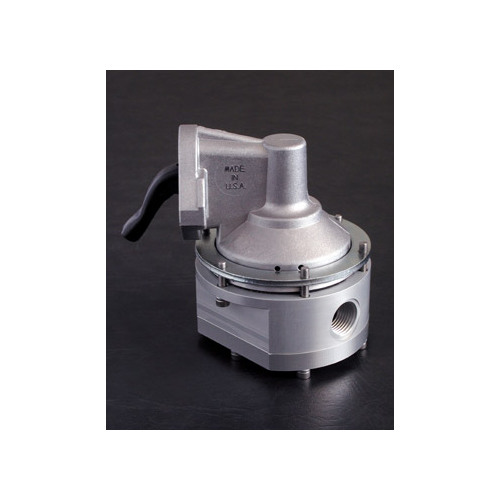

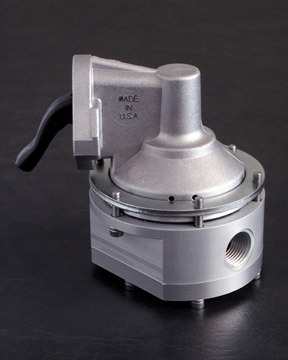

SBC SMALL BLOCK CHEVY MECHANICAL 550HP HIGH VOLUME Fuel Pump Mechanical Hi Flow

SBC SMALL BLOCK CHEVY MECHANICAL FUEL PUMP

550HP HIGH VOLUME FUEL PUMP BY ROBBMC - MECHANICAL HI FLOW.

Application:  Chevrolet 262-400 series SMALL Blocks

Note: will not clear frame and/or motor mount on 1955-1964 Fullsize cars and 1967-1973 Camaro and 1968-1972 Nova.

• See PDF instructions as an attachement on this webpage.
• includes: Gasket + Block off bung and vent fitting.
• Outlet port is on the bottom of the Pump
• For engines upto 550Hp
• Valve body can be rotated to any angle - no disassembly required.
• Maximum output pressure: 7psi (+/- 1psi)
• Side inlet port: 1/2" NPT
• Bottom outlet port: 1/2" NPT
• Bottom Vapour return port: 1/8" NPT (metered)
• Recommended Fuel: Gasoline or Gasoline/Ethanol Blends
• Recommended MINIMUM feed line size: 3/8"(-6AN) up to 450hp and 1/2" (-8AN) for up to 550hp.
• Recommend pre-filter: RobbMc RM-1024
