SKU: 12-504-5

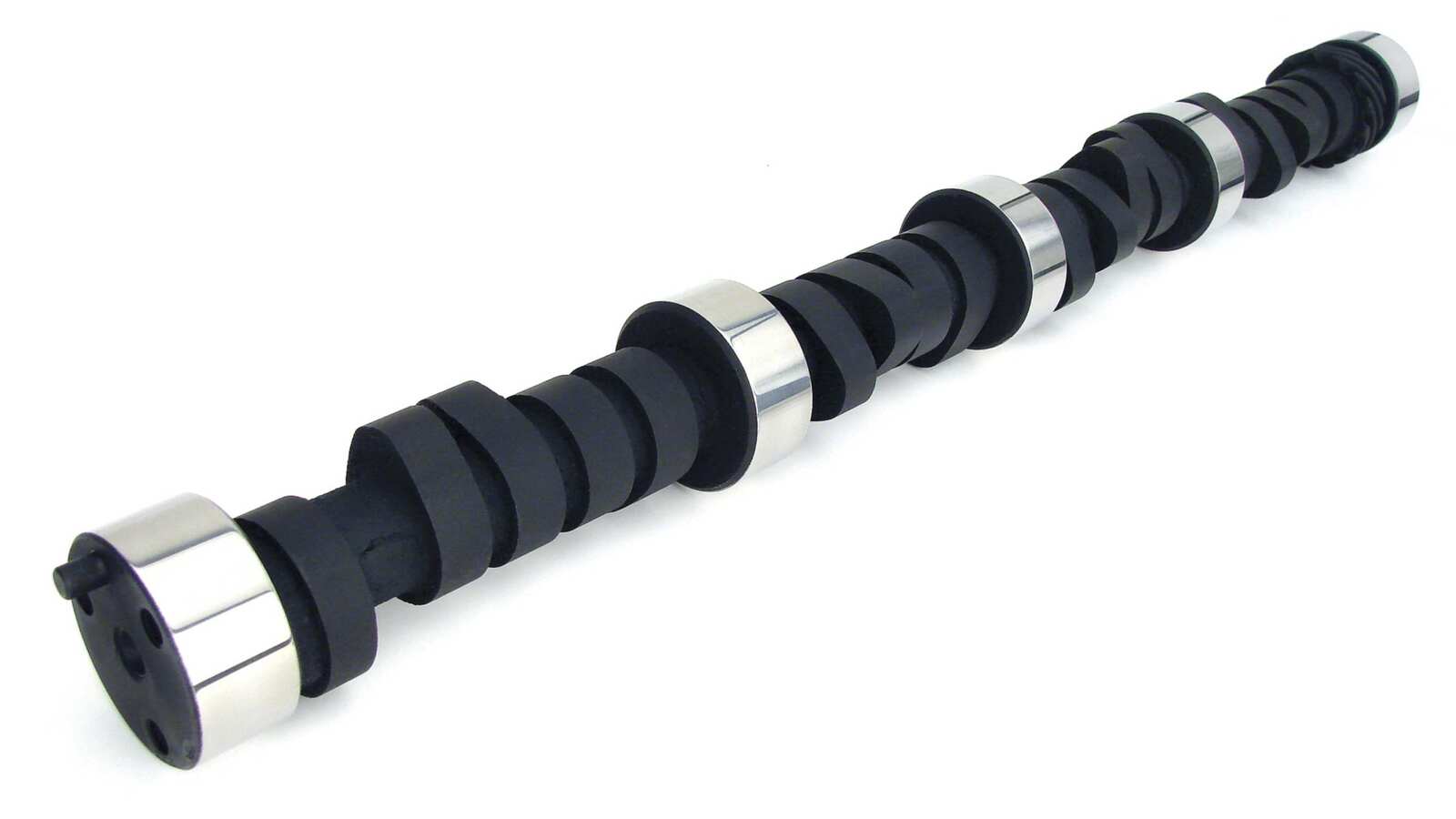

12-504-5 Tight Lash 254/254 Solid Flat Cam for Chevrolet Small Block

$599.51

or 4 payments of $149.88 with Info

SOLD OUT

*Free shipping on orders over $200

Description

Good baseline cam for Late Model Stock. Short 1/4-3/8 mile asphalt track. Best with 358, limited intake and carb.

Specifications

SKU 12-504-5
Barcode # 036584540199
Brand COMP CAMS
intake valve lift 0.54
Exhaust Valve Lift 0.54
Lifter Type Solid Flat Tappet
Advertised Exhaust Duration 284
Advertised Intake Duration 284
Cam Type Solid Flat Tappet
Exhaust Duration At .050 Inch Lift 254
Intake Duration At .050 Inch Lift 254
Lobe Separation 106
Camshaft Series Tight Lash
Grind Number 284TL-6
Basic Operating Rpm Range 3,000-7000
Lifters Included No
Valve Springs Required Yes
Camshaft Gear Attachment 3-Bolt
Camshaft Material Cast Iron
