SKU: 08-503-8

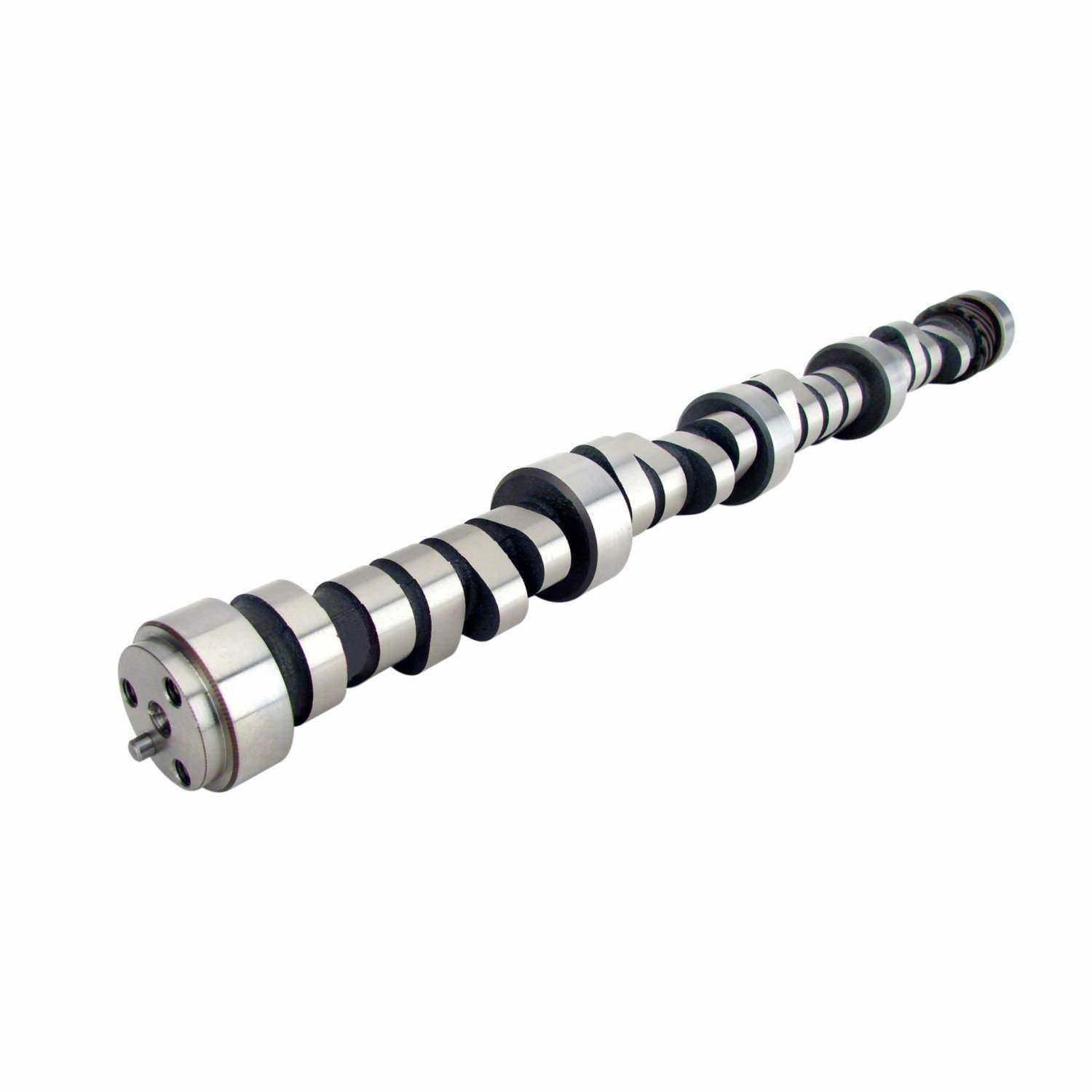

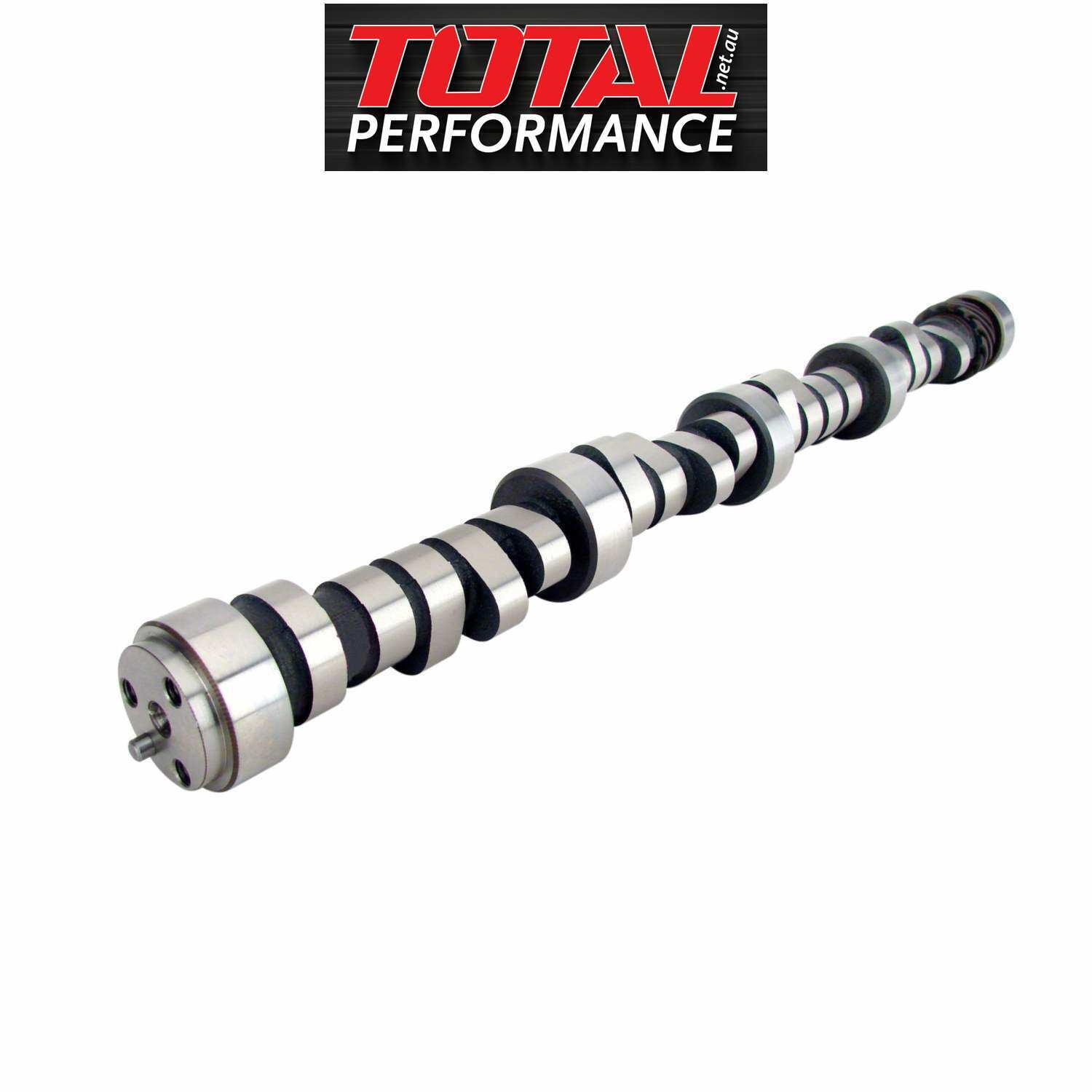

XR276HR Chevy 350 Vortec TPI & Marine Xtreme Energy 224/230 LSA 112 Hydraulic Roller Camshaft OEM SBC Roller Blocks

RPM range: 1800-5800 O.E. Roller (1987-1998)

RRP $948.02 SAVE $118.22 (12%)
$829.80

or 4 payments of $207.45 with Info

IN STOCK  FREE SHIPPING

*FREE SHIPPING ON ORDERS OVER $200!


Description

Needs modified TPI w/injectors, plenum, runners, exhaust, 2000+ stall. Requires custom tuning.

Specifications

SKU 08-503-8
Barcode # 036584063247
Brand COMP CAMS
intake valve lift 0.503
Exhaust Valve Lift 0.51
Lifter Type Hydraulic Roller
Advertised Exhaust Duration 281
Advertised Intake Duration 276
Cam Type Hydraulic Roller
Exhaust Duration At .050 Inch Lift 230
Intake Duration At .050 Inch Lift 224
Lobe Separation 112
Camshaft Series Xtreme Energy Computer Controlled
Grind Number XR276HR
Basic Operating Rpm Range 1,800-5,800
Lifters Included No
Valve Springs Required Yes
Camshaft Gear Attachment 3-Bolt
Camshaft Material Austempered Ductile Iron
