SKU: PT8RW21320-A-005

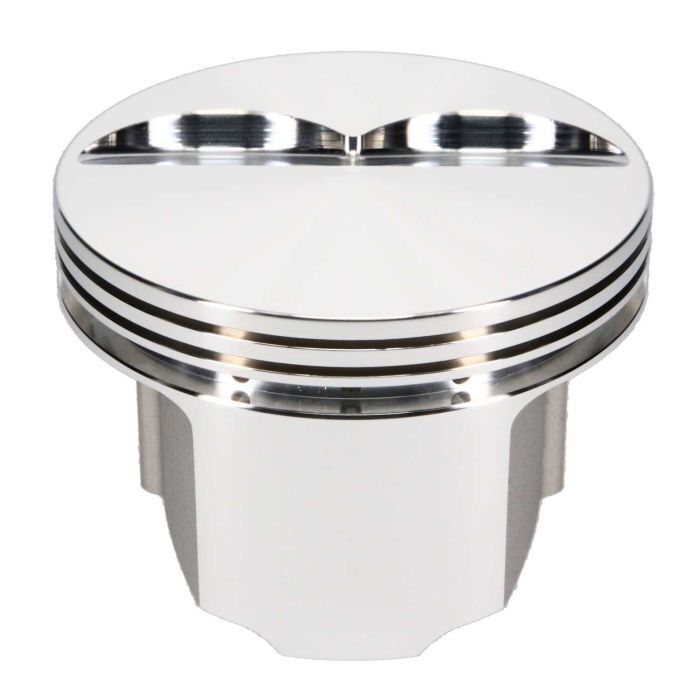

3.903" +.005" LS1/5.7L Flat Top Pistons, Cast/Hypatec CH: 1.340" suits Standard Stroke & Standard Rod 6.098"

Flat Top - Suits Standard Stroke & Standard conrod

$446.11

or 4 payments of $111.53 with Info

IN STOCK  FREE SHIPPING

*FREE SHIPPING ON ORDERS OVER $200!


Description

Hypatec Pistons –Chevy LS1, 5.7L overize +.005"

3.903" Flat Top - Cast/Hypatec Pistons Replacement

LS Cast Pistons Specs:

  • Pistons Suit: Chevy LS1 / 5.7L (Holden Commodore, VT, VX, VY, VZ)
  • Wrist Pin Size: 0.945
  • Piston Bore Size: 3.903"
  • Piston Compression Height: 34.2mm 1340"
  • Rod Length: 6.098”
  • Piston Top: Dish Top
  • Crankshaft Stroke: 3.622”
  • Rings Size: 1.5mm, 1.5mm, 3.0mm rings
  • Piston Rings included: NO  *see below recommendations
    • See DRP-PRG3905P-8  (NPR Stainless Top & Napier 2nd)
    • See 2M9600005  HASTINGS (Moly)

Specifications

SKU PT8RW21320-A-005
Brand HYPATEC
