Ford 302W & 5.0L Cylinder Head Studs Kit 7/16 in Studs 6 Point Hex Nuts FORD WINDSOR 5.0L 289 302W

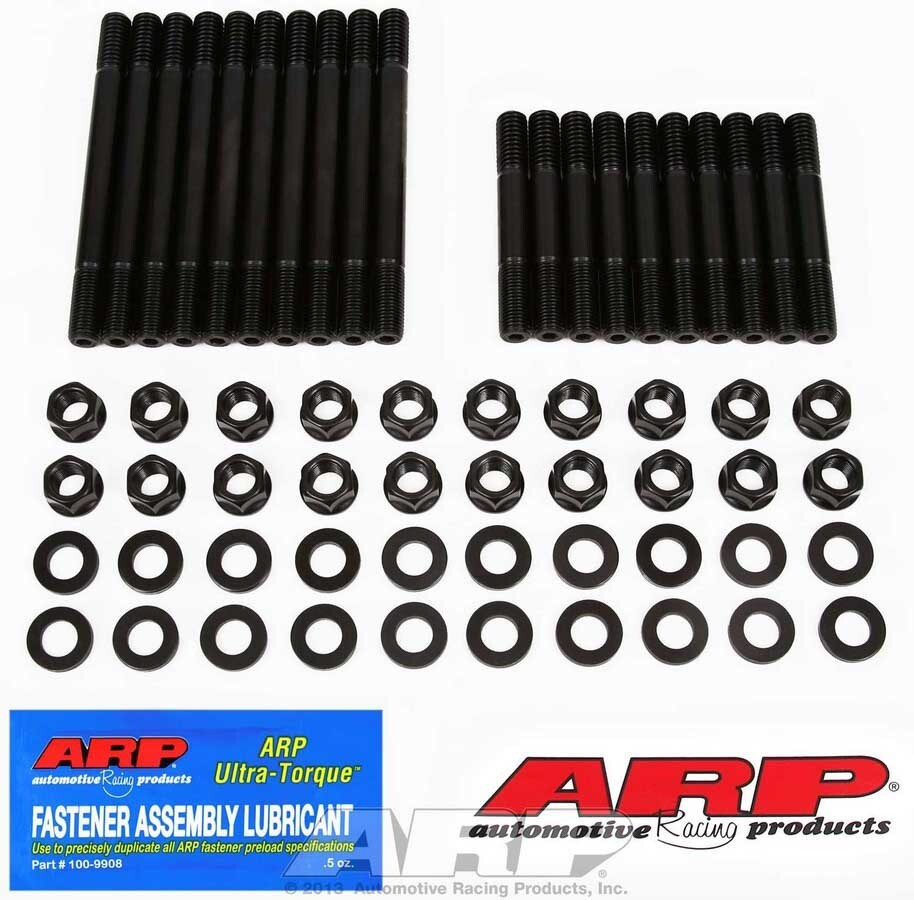

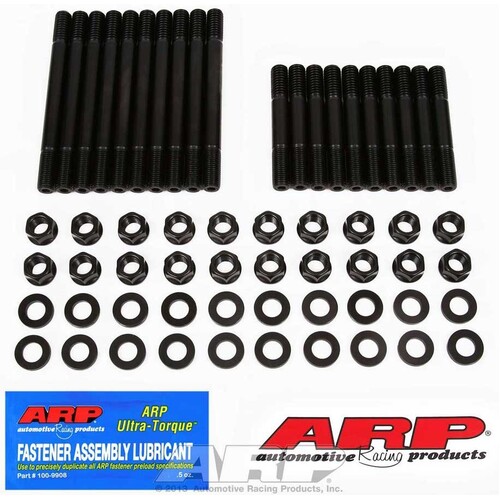

ARP #154-4001 Premium Ford Windsor Head Studs kit for 5.0L 302 Windsor Small Block Ford. 6 POINT X 7/16"

Pro Series ARP Head studs suits FORD 302W SBF WINDSOR

SUITS OEM STOCK TYPE HEADS + AFTERMARKET ALLOY DRP + EDELBROCK Cylinder Heads *

Note: some aftermarket heads may need a step down washer from the 351W 1/2" holes to suit the smaller 302W 7/16 studs. DRP has these included in the cylinder heads.

• ARP Fastener Type: High-Strength Studs Kit

• Application: Ford Windsor Performance Engine Stud Kit

• Material: 8740 Chromoly Alloy Steel - Heat-Treated Chromoly

• Head Style: 6 Point Hex Head Stud

• Socket Head Size: 5/8" Hex

• ARP Stud Thread Size: 7/16"

• Broached Allen Size: 3/16" Internal Drive

• Finish: Black Oxide Coated for Corrosion Resistance

• Washers Included: Yes – Hardened Washers Supplied

• Quantity: 2 x Ford Windsor Cylinder Heads Kit

• Installation Notes:

  This stud kit suits OEM Ford 302 / 5.0L Windsor blocks and is compatible with both factory and most aftermarket cylinder heads.

  It does not fit Dart blocks or 351 Windsor blocks, as those blocks use a larger 1/2" head stud size, whereas the OEM 302 Windsor uses 7/16" studs.

  Many aftermarket aluminium cylinder heads are machined for 1/2" fasteners, so when fitting to a 302W block you may require hardened step-down washers to correctly locate the 7/16" studs in the larger head bolt holes. Use Edelbrock #ED9680 step down washers.

  DRP Windsor cylinder heads already include the required step-down washer inserts.
