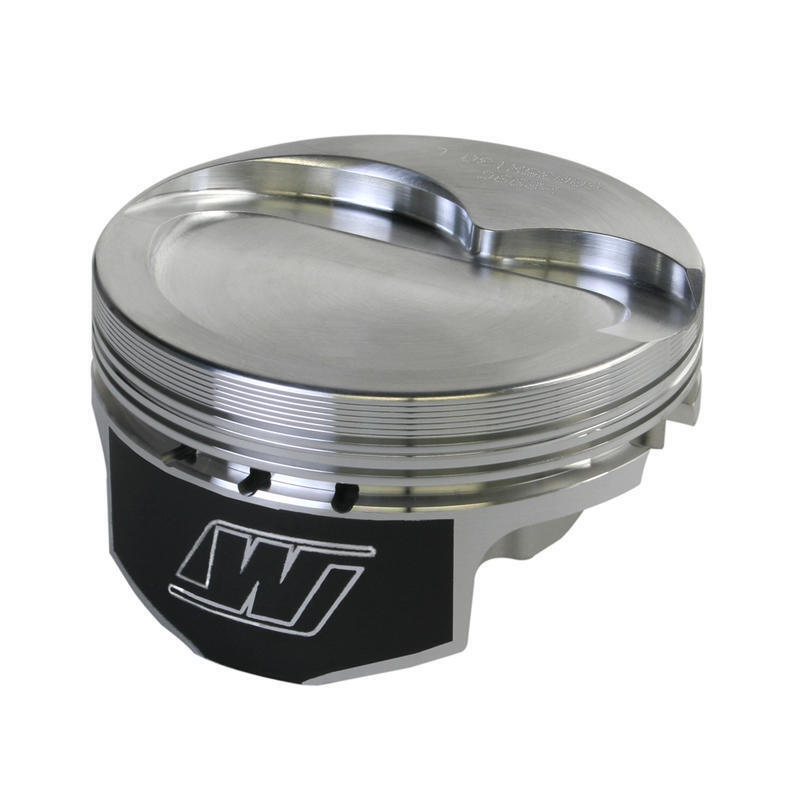

Wiseco PTS511A3 4.030 Windsor Pistons dome Top 302W 363 Stroker Ford SBF Forged 4032 Pistons -7cc

** FREE SHIPPING ON ORDERS OVER $200 **

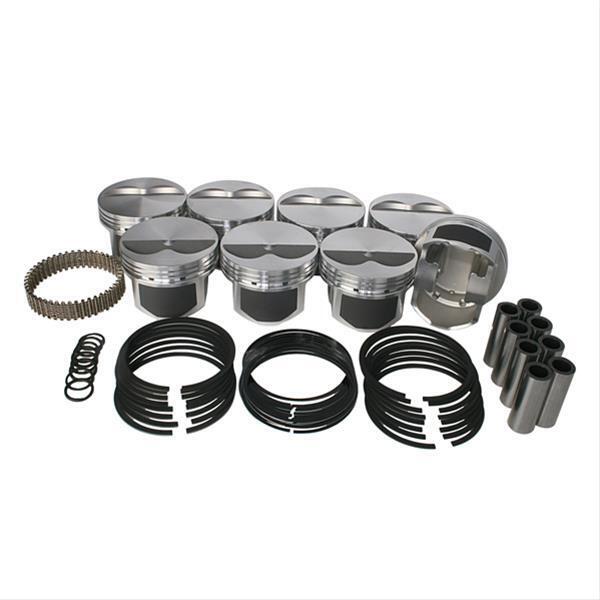

4.030" 347 Windsor Forged Pistons & Rings Kit, Flat Top Ford 302W Stroker, 0.927" Pin CH: 1.090" Suits: 3.400 x 5.400" SBF

Description

PTS511A3W Wiseco Forged Flat Top pistons & Rings Kit to suit Ford Windsor 302W / 347 Stroker.

Wiseco Windsor Stroker Pistons, Pro Tru Street, use the latest design technology to manufacture some of the best aftermarket performance forged pistons on the market. Trust your new engine with a set of Wiseco forged flat top Pistons, Ford Windsor 302 Stroker.

Series: Wiseco Pro Tru Street

Make: Ford

Engine: 347 SBF Windsor (302W Stroker)

Bore: 4.030” Bore

Stroke: 3.400" Stroke

Rod Length: 5.400" Rod

Crown Volume: -7.0cc Flat Top

Compression Height: 1.090" (Crank 3.400” x 5.400” conrod)

Pin Diameter: .927" Pin (Chevy Gudgeon Pin size)

Piston Material: Forged 4032 Alloy

Ring Lands: 1/16 in. x 1/16 in. x 3/16 in.

Top Ring Type: Moly-Faced Ductile Iron

Second Ring Type: Phosphate-Coated Cast Iron

Oil Ring Tension: Standard Tension

Coated Skirt Type: ArmorGlide-Coated Skirt

Quantity: Sold As Kit (for 8 cylinder)

Specifications

SKU	PTS511A3
Barcode #	00193564093134
Brand	Wiseco
Piston Top	DOME
PISTON PIN	CHEVY .927
Piston Bore	4.125
