4.030'' +030" FLAT TOP 304 (308) Holden 304 Standard Stroke Pistons, CH 1.710" (Replacement upgrade) Cast/Hypertec

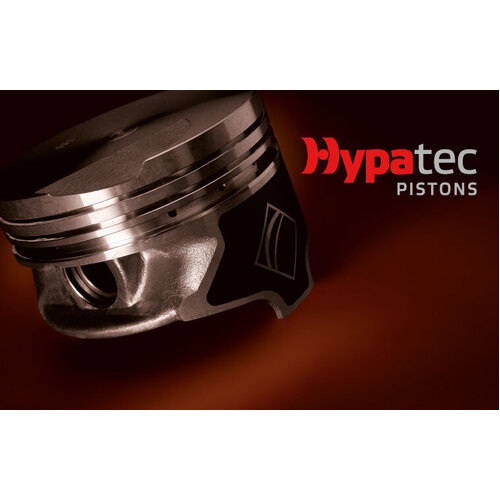

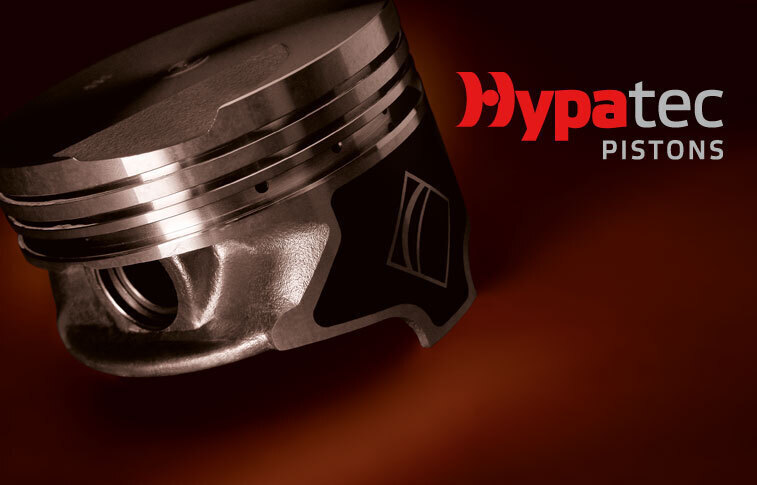

HYPATEC Pistons - Holden 304 Pistons.

4.030" Flat Top - Hypertec Pistons

NOTE: Suits the 304 shorter stroke crankshaft.

• Holden V8, 304 combination: 304 Standard Crankshaft 3.025" x Standard Conrod 5.627"
• Piston Bore Size:  4.030"
• Piston Oversize: + 030"
• Piston Compression Height CH: 1.710"
• Piston Top:   Flat Top
• Piston Reliefs:
• Rings Size:  4.030"  1/16, 1/16, 3/16"
• Piston Rings NOT included: We recommend part # HAST-139030

Hypatec pistons are renowned for their high quality and performance. These pistons are specifically engineered for Holden VN V8 304 with standard stroke applications. Manufactured from an 11-13% silicon alloy and treated with T6 heat treatment, Hypatec pistons offer superior strength compared to many other pistons on the market. Each piston is precisely crafted using state-of-the-art CAD/CNC diamond-tipped machinery, ensuring they can withstand the severe loads typical of today's high-performance engines.

The high silicon alloy used in Hypatec pistons provides significant strength and resistance to scuffing and seizure. Silicon acts as small insulators, repelling the heat generated in the combustion chamber. This allows the combustion process to be more efficient, keeping the combustion chamber hot while the piston remains cooler. This feature is particularly beneficial for Holden 304 VN engine upgrades.

Hypatec's T6 heat treatment process involves heating the piston to 500°C for nine hours before water quenching it to form a single-phase alloy. The second stage heats the piston to 180°C for ten hours, followed by air cooling. This process results in the formation of CuAI2 crystals, which enhance the alloy's strength.

Manufactured by original equipment piston manufacturers, Hypatec pistons incorporate the latest design features such as anodizing, alfin inserts, ceramic fiber squeeze casting, and gallery cooling. These advancements, originally developed for OEM applications, are now available in the Hypatec piston range for SBC, Holden 355 stroker, Chevy 383 stroker, Chevy 350, and Holden Stroker Pistons, making them a top choice for aftermarket performance enhancements.
