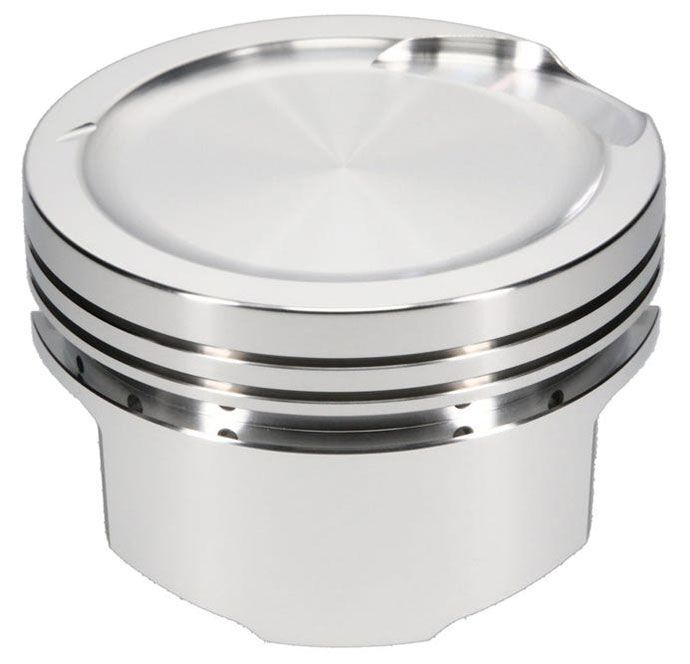

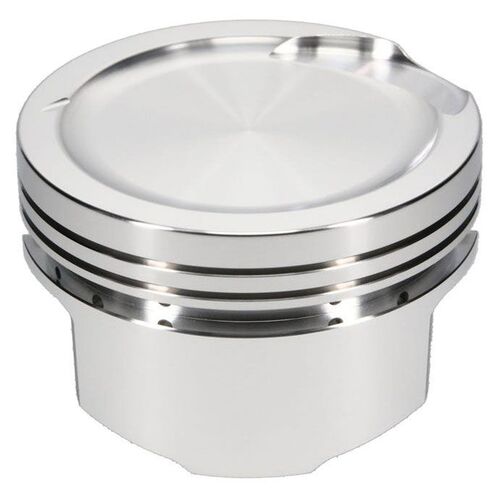

4.030" Ford 351C 393 Cleveland Stroker Pistons, Dished, 4032 Forged Pistons, -11.7cc CH: 1.260 (3.850" x 6.000")

Autotec 1000524 Ford 351 Cleveland 393 Stroker Pistons

Autotec 1000524 pistons are built for Ford 351C Cleveland 393 stroker combinations using a 4.030" bore, 3.850" stroke and 6.000" rod. The -11.7cc dish gives useful compression control compared with flat top pistons, especially where chamber size, cam timing, fuel quality and street use all need to be considered together.

The 1.260" compression height suits the listed 393 Cleveland stroker combination. Final deck height, gasket thickness, chamber volume and piston-to-valve clearance still need to be checked by the engine builder during mock-up. Do not assume final compression or clearance from piston specs alone, because that is how engines become expensive paperweights.

Common Searches This Product Covers

• Autotec 1000524 pistons
• AT-1000524 Ford Cleveland pistons
• 4.030 forged 351 Cleveland pistons
• Ford 351C 393 stroker pistons
• 393 Cleveland dished pistons
• 351 Cleveland 3.850 stroke 6.000 rod pistons
• 4032 forged Cleveland pistons
• Ford 351C stroker pistons Australia

Builder Notes

• Use with a 4.030" finished bore.
• Built around a 3.850" stroke and 6.000" connecting rod combination.
• Check piston-to-valve clearance with the actual camshaft, cylinder head, gasket and rocker setup being used.
• Confirm final compression ratio against your chamber volume, gasket bore, gasket thickness and deck height.
• Use correct 4.030" bore ring pack. DRP-PRG4030P-8 is the recommended matching DRP piston ring set.

Total Performance supplies Ford Cleveland engine parts, stroker pistons, piston rings, bearings, rods, crankshafts, camshafts and valvetrain parts for serious 351C builds. We are not a faceless dropship seller. We hold and supply our own stock where available and support customers with practical engine-builder advice.
