SKU: AT-1000162

4.030'' DOME SBC SMALL BLOCK CHEVY 350 23 deg, 4032 Forged Pistons, +12.7cc CH 1.260" +030"

+12.7cc DOME - Standard Stroke with 6.000" Rod

$1,082.40

or 4 payments of $270.60 with Info

In Stock

Description

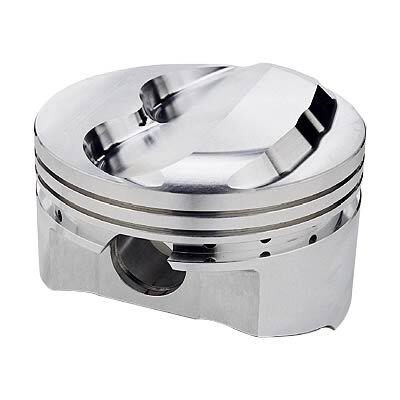

Racetec / Autotec AT-1000162 Forged Pistons Small Block Chevy 350

4.030" DOME Top - High Compression Forged Pistons - Compression Height 1.260"

Suits:

  • Small Block Chevy 350 with a cubic capacity of 355
  • Standard Stroke (3.480") with 6.000" conrods

Racetec / Autotec Forged Pistons

  • Manufactured on forged side relief, 4032 low expansion, high silicon material excellent for street or strip applications.
  • Piston Top: DOME Top + 12.7cc
  • Diamond turned skirts.
  • Machined Reliefs/dome tops
  • Wrist Pin Size: 0.927
  • Piston Bore Size: 4.030"
  • Overbore size: +030"
  • Piston Compression Height: 1.260"
  • Rod Length: 6.000”
  • Crankshaft Stroke: 3.480”
  • Weight: 494 grams
  • Rings Size: 1.5mm, 1.5mm, 3.0mm rings
  • Piston Rings included: NO

Specifications

SKU AT-1000162
Brand AUTOTEC
