4.120" Ford FE 390 Pistons, + 030" Flat Top, 4032 Forged Pistons, -5 cc CH 1.770" Big Block Ford

Forged Pistons Ford FE 390 Flat Top

Racetec / Autotec AT-1028267

4.120"  Flat Top - Forged Pistons Suits:

• Ford FE 390 Big Block
• Standard Stroke with Standard Conrod

Racetec / Autotec Forged Pistons

Manufactured on forged side relief, 4032 low expansion, high silicon material excellent for street or strip applications. Diamond turned skirts. CNC precision machined ring grooves. These forged pistons come with Top ring land gas distribution grooves to enhance performance & improved ring seal. These precision forged pistons also come with broached pin oiling & accumulator grooves.

• Piston Material: Forged 4032 low expansion
• Engine: Ford FE Big Block - 390
• Engine Cubic Capacity: 395
• Bore Oversize: "
• Piston Bore Size: 4.120"
• Piston Compression Height: 1.770"
• Crankshaft Stroke: 3.780”  (390 Crankshaft)
• Rod Length: 6.490”  (Factory FE)
• Piston Top: Flat Top -5cc
• Wrist Pin Size: 0.975"  (Factory FE)
• Piston Weight:
• Rings Size: 1.5mm, 1.5mm, 3.0mm rings
• Gudgeon/Wrist Pin:  0.975" - Included.
• Wire Locks:  Included
• Piston Rings included: NO - Recommend AT-4125

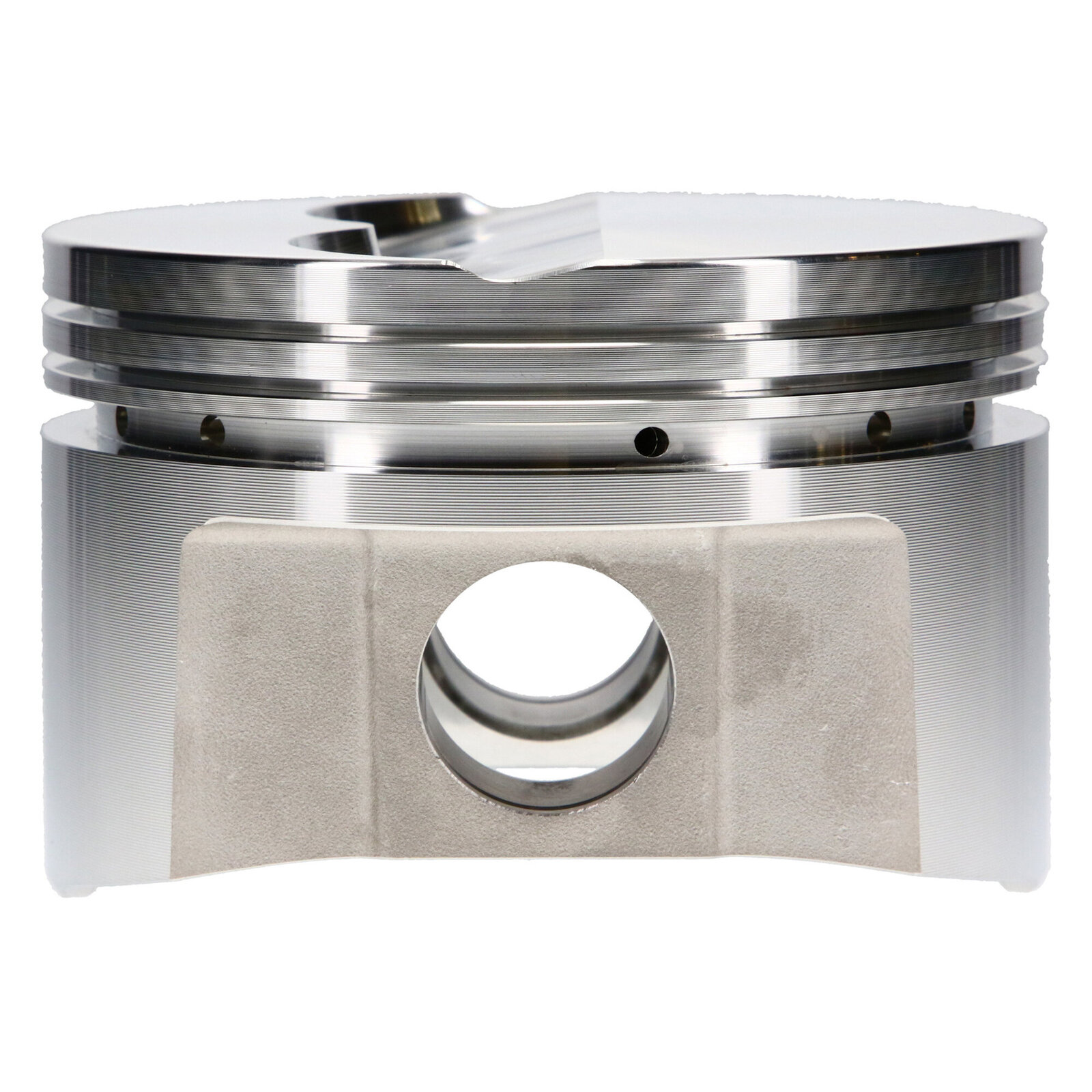

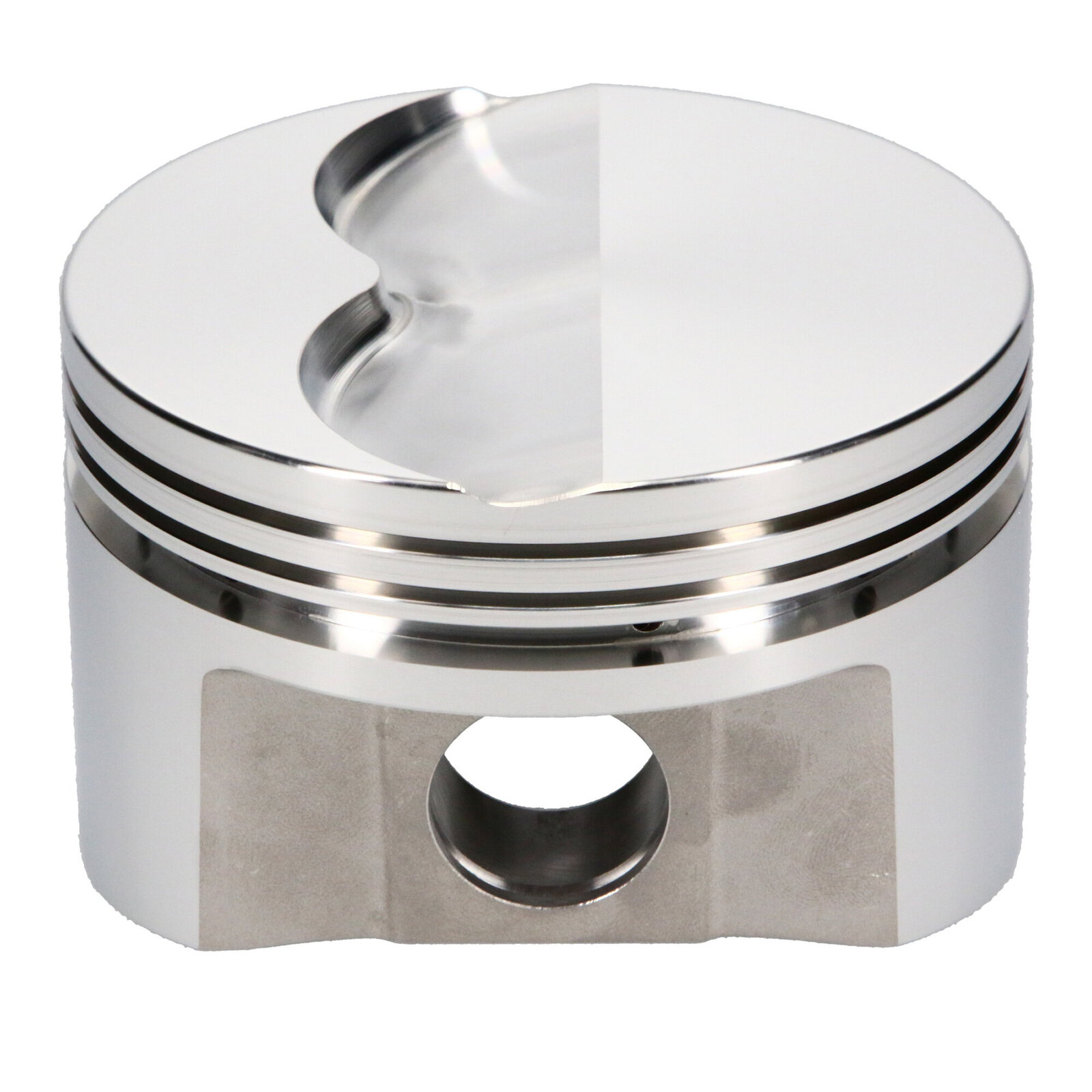

Note: Photos are not of actual product, Image may differ from actual product.
