SKU: FEL-1037

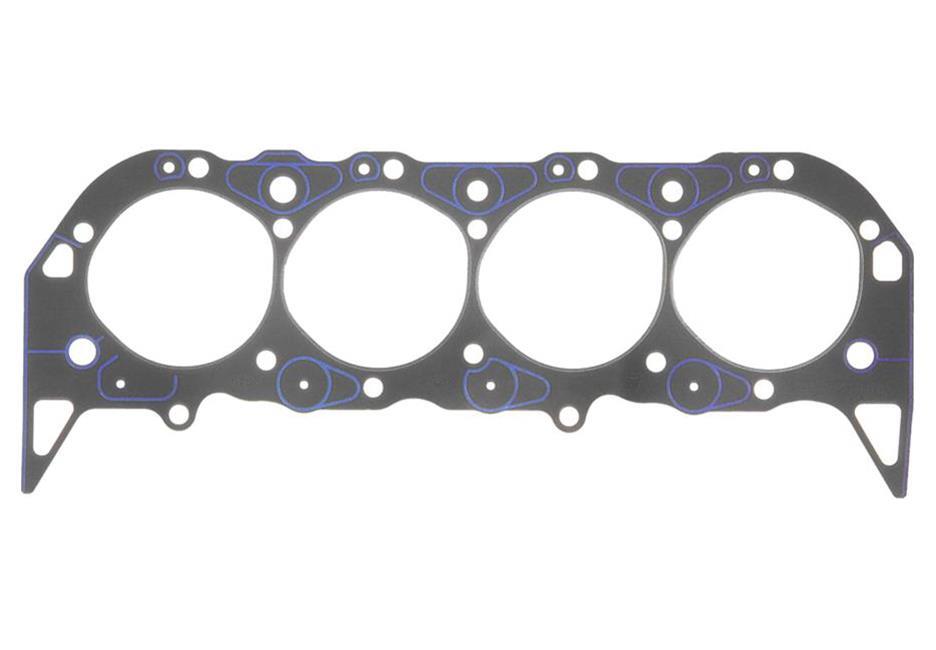

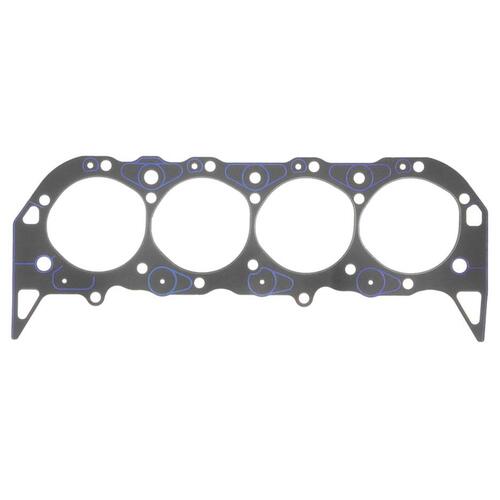

BBC 454 Cylinder Head Gasket 4.370" Bore, Steel Core Laminate, Gen V & VI, Big Block Chevy 454, Iron & Aluminium Heads.

0.039" COMPRESSED THICKNESS

$140.80

or 4 payments of $35.20 with Info

Sold Out

Description

Fel-Pro Cylidner Head Gasket - 454 Chevy Big Block - Suits Mark V and Mark VI BBC. Aluminum and Iron Cylinder heads*

Has a Built In Copper or Steel wire ring conbusion seal.

NOTE: For Mark IV applications, this gasket will requie the drilling of three additional water jacket holes into the engine block.

Cylinder Head Gasket Dimensions

Material  Stainless Steel Core Laminate

Thickness (IN)  0.039

Engine Displacement  396, 402, 427, 454, 502, 510, 540, 572

Combustion Chamber Volume (Cc)  9.70

Application Notes  Cast Iron Or Aluminum Heads - Suitable For Marine Applications

Engine Family  Chevrolet V8 Big Block

Bore Size (In.) (IN)  4.370

Combustion Seal Design  Pre-Flattened Steel Wire

Product Notes - information taken directly from the Fel-Pro website.

Fits Gen IV Pass. Car And H/P Block; Pre-1971 Blocks May Require Modification; Fits Gen IV Truck And Bow Tie Block; Fits Gen V Block; Fits Gen VI Block; One Coolant Hole Per End; Three Lower Coolant Holes; Minimal Brinelling Of Aluminum Heads

Notes:  Pre-flattened steel wire. 1971 and earlier blocks may require modification. Also suitable for marine applications.

Specifications

SKU FEL-1037
Barcode # 084113010378
Brand FEL-PRO
