Description
This rocker stud and nut assembly allows for improved clamping load, adding up to a more rigid, stable and high revving valve train assembly. Additionally, it saves the threads in aluminum cylinder heads, especially in race applications that see constant disassembly. The stud kit also aids during installation of shaft mount rocker systems by accurately guiding the rocker arm assembly into position.
The 12 point flange nuts provide ample clearance to rocker arms for maximum lift potential while a rounded nose on top of the stud prevents cross threading of the nut during assembly. Manufactured from grade 12.9 hardware, these high-strength studs also help to prevent thread fatigue and pulling of threads in aluminum heads

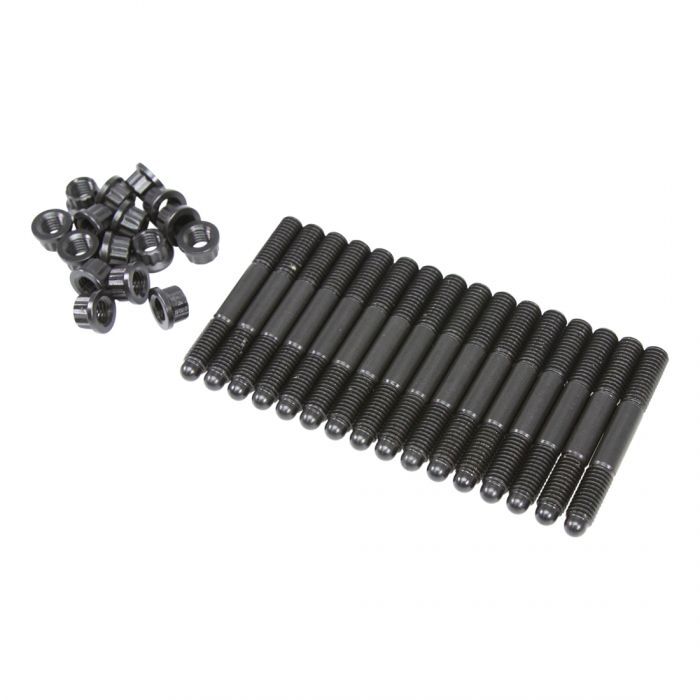

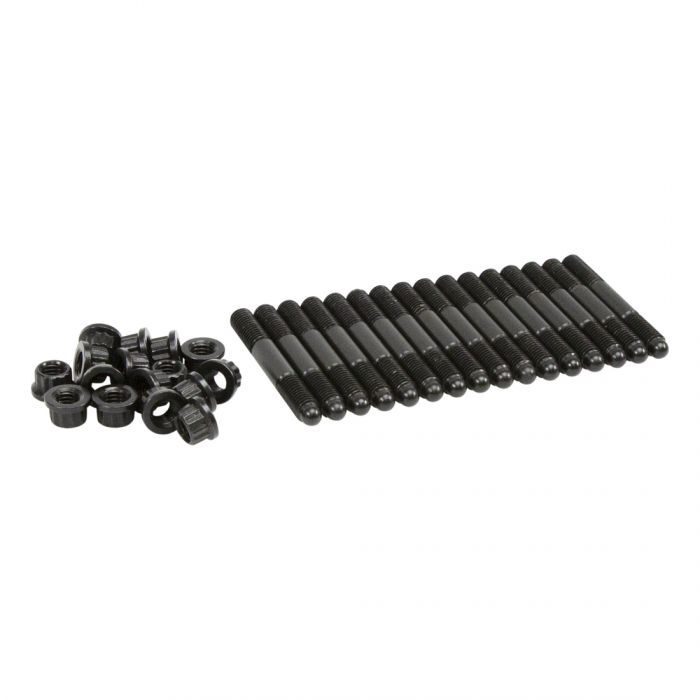

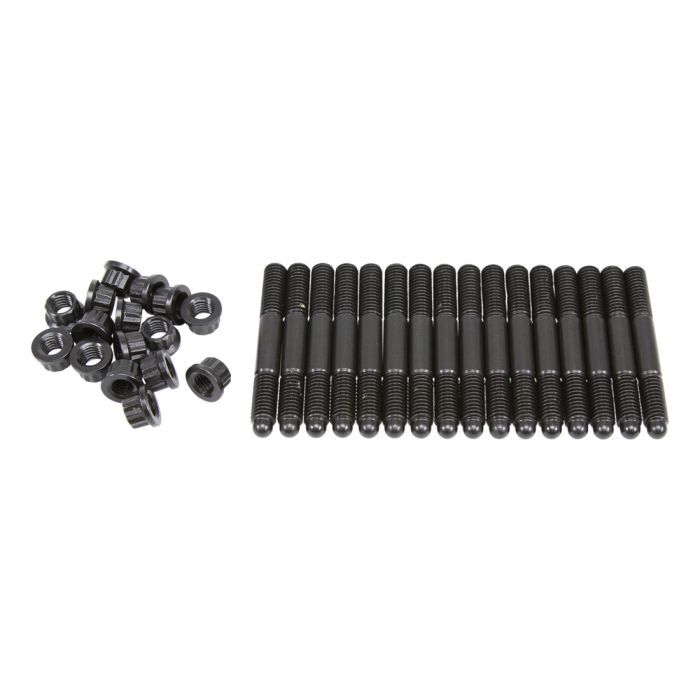

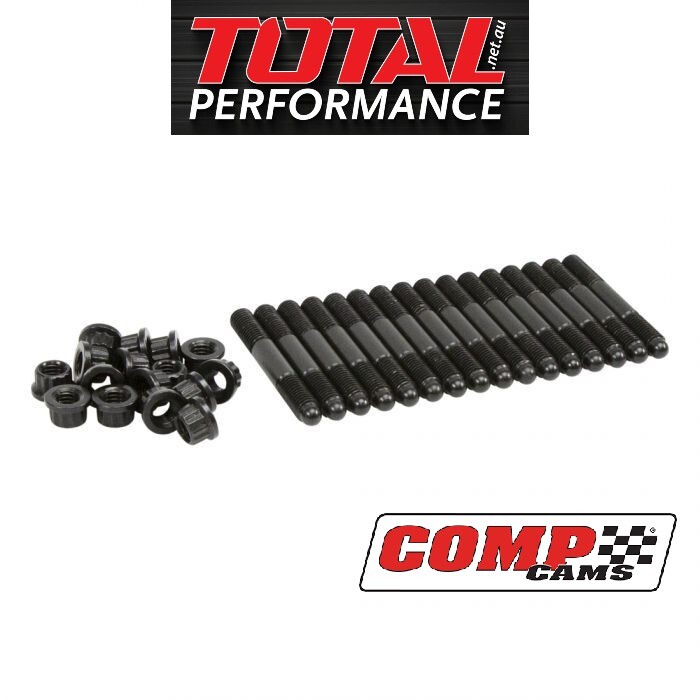

Rocker Arm Stud Kit
GM LS1, LS3
Manufactured from Grade 12.9 Hardware
12 Point Flange Nuts
Set of 16
Specifications
SKU | 4582-KIT |
Brand | COMP CAMS |
Rocker Arm Material | 8650 Chromemoly Steel |
Rocker Arm Ratio | 1.8 |
Rocker Arm Series | Ultra Pro Magnum |
Rocker Stud Diameter | 3/8 |
Maximum Valve Spring Open Pressure | 850 |
