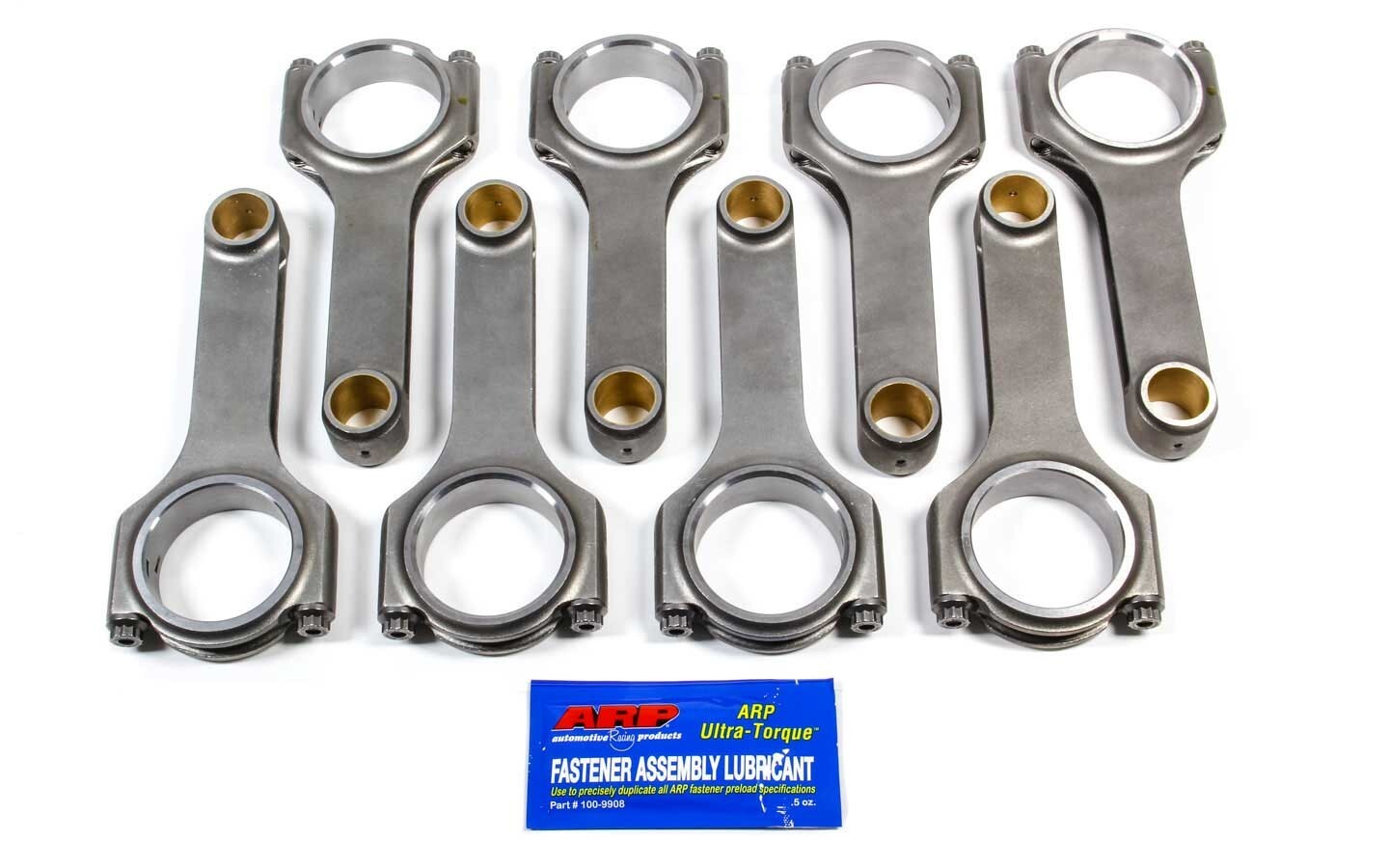

5.850" SJ 2.000" 4340 H-Beam Conrods ARP 2000 rod bolts, Stroker Clearance, SBC Chevy 350 Small Block, (6585020A) small journal

5.850" long with Small Journal - Holden 383 Stroker Conrods

Scat H-beam connecting rods are the strongest Scat connecting rods available by Scat. These Scat H-beam connecting rods are perfect for supercharged and nitrous applications. These rods incorporate a special doweled cap for specific cap-to-rod alignment and are profiled with extra clearance for stroker applications. Forged 4340 material with ARP 7/16 2000 rod bolts make them very strong and affordable. H Beam rods with ARP 8740 Bolts are rated to 750 horsepower on small blocks and 850 on big blocks,

Rod Series:  PRO SPORT H BEAM with ARP 2000 rod bolts

Rod Length Center to Center (in.):  5.850 in.

Rod Beam Style:  H-beam

Rod Material:  Forged 4340 steel

Rod Finish:  Shot-peened and tumbled

Wrist Pin Style:  Floating

Rod Journal Diameter (in.):  2.000 in. Small Journal

Big End Bore Diameter (in.):  2.225 in.

Big End Width (in.):  0.940 in.

Pin End Bore Diameter:  0.927 in.

Clearanced for Stroker:  No

Cap Retention Style:  Cap screw

Connecting Rod Bolt Brand:  ARP

Connecting Rod Bolt Diameter:  7/16 in.

Connecting Rod Bolt Material:   2000 SERIES

Fastener Tensile Strength (psi):

Connecting Rod Bolt Head Style:   12-point

Weight Matched Set:  Yes

Advertised Weight:

Magnafluxed:  No
