500HP FORD 351 CLEVELAND CYLINDER HEADS 2V PAIR CNC PORTED & ASSEMBLED HYDRAULIC FLAT TAPPET

PAVTEK 500HP FORD 2V CLEVELAND CYLINDER HEADS, CNC PORTED, ASSEMBLED PAIR OUTRIGHT.

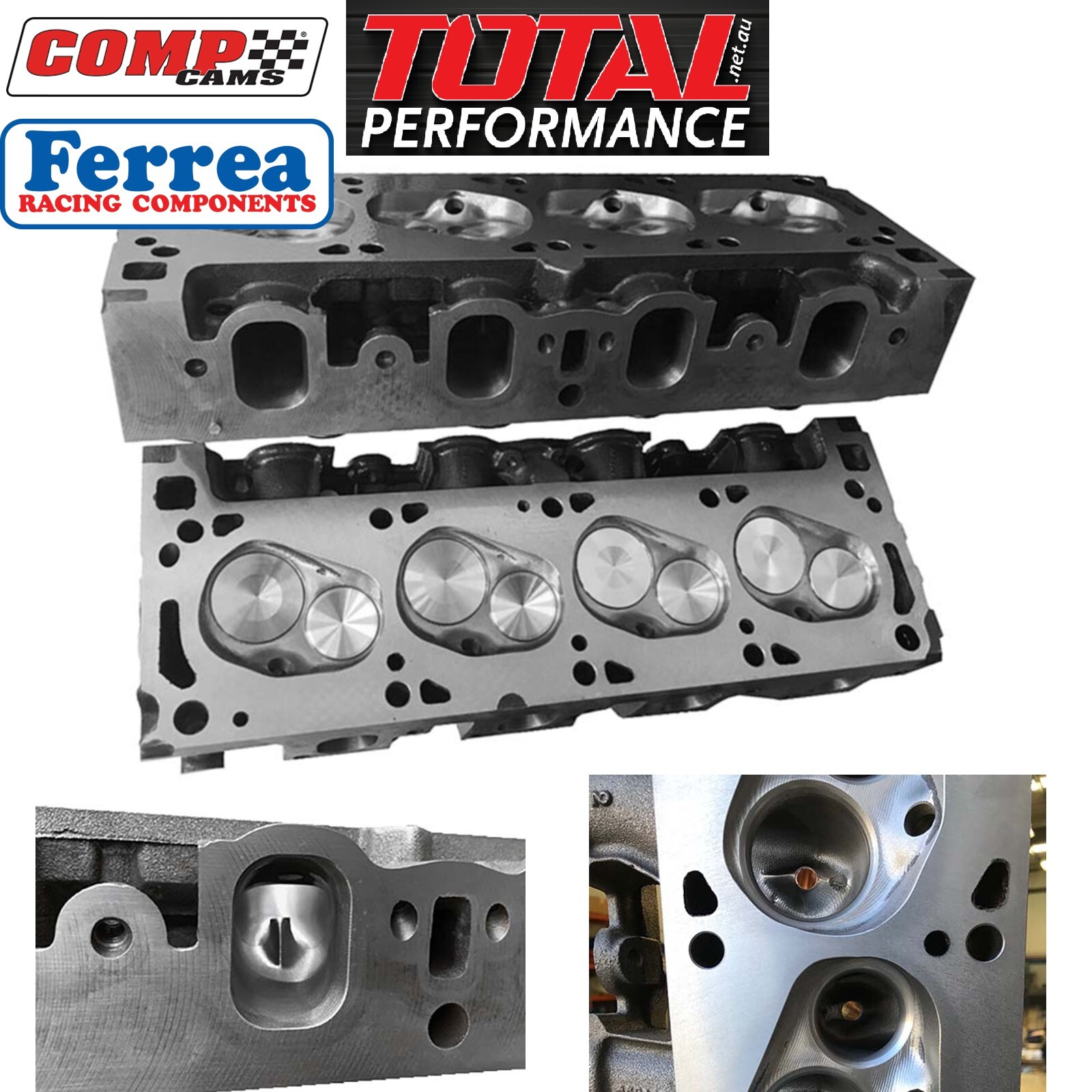

Assembled by TOTAL PERFORMANCE to suit HYDRAULIC FLAT TAPPET CAMSHAFT - FERREA VALVES & COMP CAMS HARDWARE*

Chamber Volume:  62-72cc* Please advise - ALLOW APPROX 1 - 2 WEEKS FOR ASSEMBLY. Call if urgent

*Does not include Guide Plates or Screw In Studs.

Sold as Outright (no exchange or core charge).

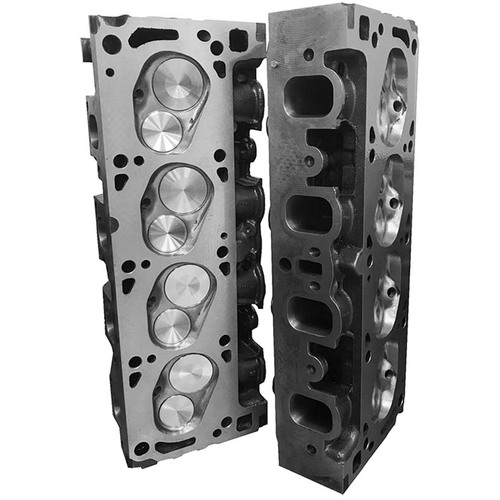

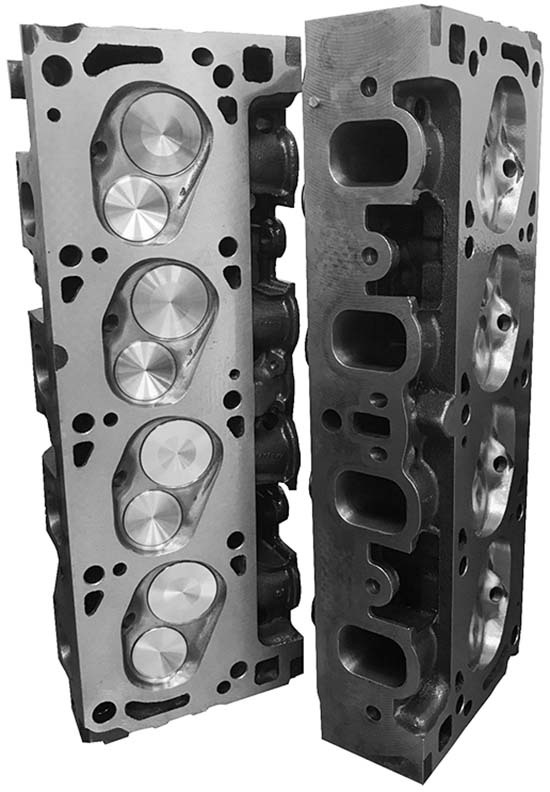

These CNC ported Ford OEM 2V Cast Iron Cleveland cylinder heads produce 505HP normally aspirated at 7000 Rpm with a street/stip solid flat tappet camshaft and a TFC single plane intake manifold. They also produce an impressive 481 HP @ 6800 Rpm with an Edelbrock/DRP Rpm Airgap dual plane intake. These cylinder heads are for the Ford enthusiast  that wants to retain the authentic OEM look and would prefer not to use aftermarket cylinder heads. The OEM 2V cylinder head has many flaws in it's original design and PAVTEK have spent countless hours re-developing these ports to achieve the maximum power potential within the restrictions of the factory castings.

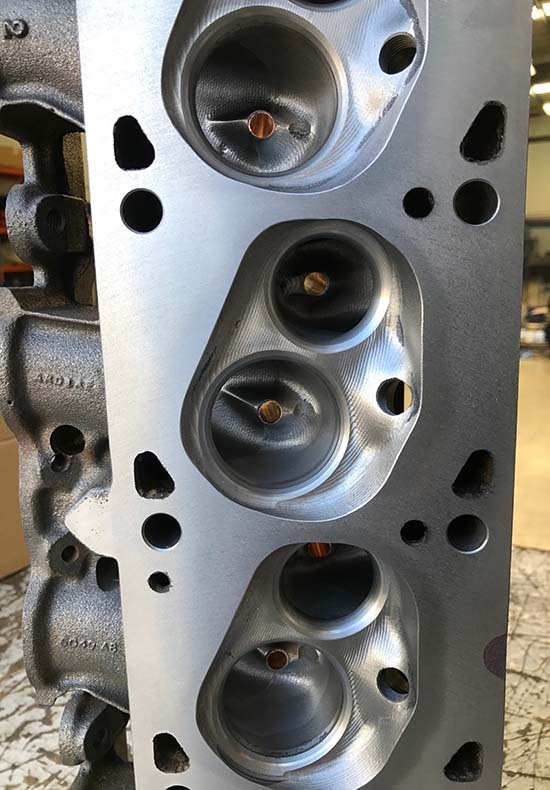

The shape of the OEM 2V close chamber cylinder heads have been modified and CNC finished to enable them to be used on 351 and larger cubic inch engines. Combustion chamber volumes are available between 62 to 72cc depending on how much the heads are final milled.

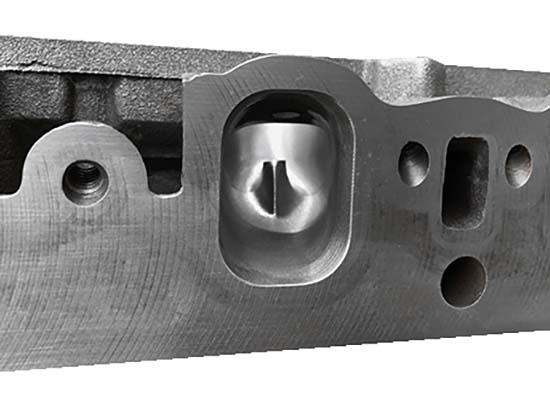

5 Axis CNC Competition Porting - Chambers/ Intake/ Exhaust

Machined to suit screw in studs

Pressure test of cylinder heads after porting

Multiangle Valve Seat Geometry

K- Line bronze valve guides - honed

TECHNICAL SPECIFICATIONS :

Intake Valve Diameter:  2.070"   FERREA 5000 VALVE

Exhaust Valve Diameter:  1.650" FERREA 5000 VALVE

Valve Springs:  Comp Cams Dual Valve Springs - suits Hydraulic FLAT TAPPET Camshaft

ntake Port Volume:        192cc

Exhaust Port Volume:    110cc

Chambers CNC Machined             Yes

Chamber Volume:           62-72cc* Please advise

Minimum Intake CSA      2.400"

Maximum Intake CSA     x.xxx"

Minimum Exhaust CSA   x.xxx"

Maximum Exhaust CSA  x.xxx"

Intake Seat Angle             45

Exhaust Seat Angle          45

Flow Test Bore Size         4.030"

Exhaust Flow figures with pipe    No

FLOW FIGURES:   Flow figures are not inflated for sales purposes.

Valve Lift	.100"	.200"	.300"	.400"	.500"	.600"	.700"	.800"	.900"	1.000"
Intake Flow @28" H2O	76.57	157.04	220.72	260.99	281.99	279.25	282.52	285.11	NA	NA
Exhaust Flow @28" H2O	65.23	111.52	138.83	162.62	180.23	195.72	207.05	217.88	NA	NA
