Small Block Chrysler, 318, 340, 360 Conrods Connecting Rods, I BEAM with ARP 2000 bolts (Premium Pro Series)

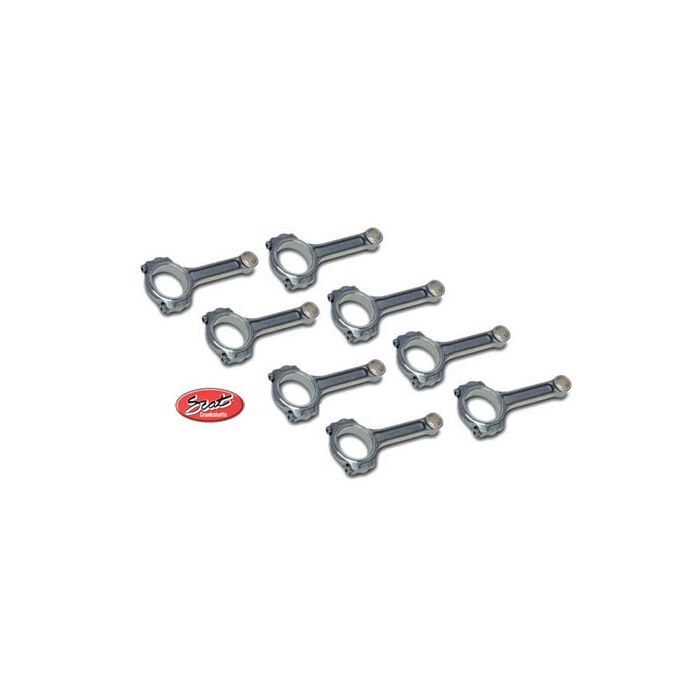

SCAT-2-ICR6123-2124A I-Beam 6.123 Connecting Rods - Suits Small Block Chrysler

Fits: Chrysler Small Block, 318, 340, 360 Stroker kits

Features: ARP 2000 Rod bolts.

Scat Premium 4340 forged I-Beam connecting rods are the ultimate rod that incorporates the strength and technology of an H beam rod. Scat offers the best possible I-Beam rod which offers a unique forging design to strengthen the big end, Stronger than all other I-beam designs. Scat rods feature single rib cap design for added strength and bearing support, polished beams to eliminate stress risers, special hollow dowels and huge ARP 7/16 cap screw rod bolts that greatly increase the strength and horsepower capabilities. Profiled clearance for stroker engine applications. These connecting rods with ARP 8740 7/16 bolts are rated to 700 Horsepower one Small blocks, and 800 horsepower on big blocks. ARP 2000 7/16 bolts upgrades the horsepower to 800 horsepower on small blocks and 900 horsepower on big blocks.

Connecting Rod Length Center to Center (in.):   6.123 in.

Connecting Rod Beam Style:   I-beam

Connecting Rod Material:   Forged 4340 steel

Connecting Rod Finish:   Shot-peened and tumbled

Wrist Pin Style:   Floating

Rod Journal Diameter (in):   2.100 in.

Big End Bore Diameter (in.):   2.2250 in.

Notes:   Custom pistons required when using connecting rods with custom wrist pin diameter and longer than stock length.
