6.125" LS 4340 H BEAM CONNECTING RODS LS1 LS2 LS3 CHEV 5.7L 6.0L 6.2L Stroker Conrods ARP 2000 ROD BOLTS

K1 Technologies, LS Connecting Rods, H Beam, 6.125" ARP 2000,

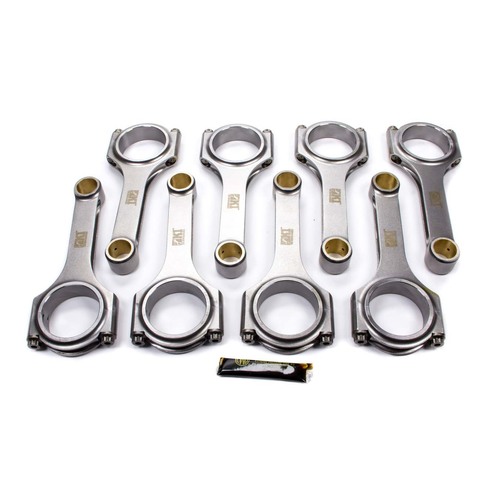

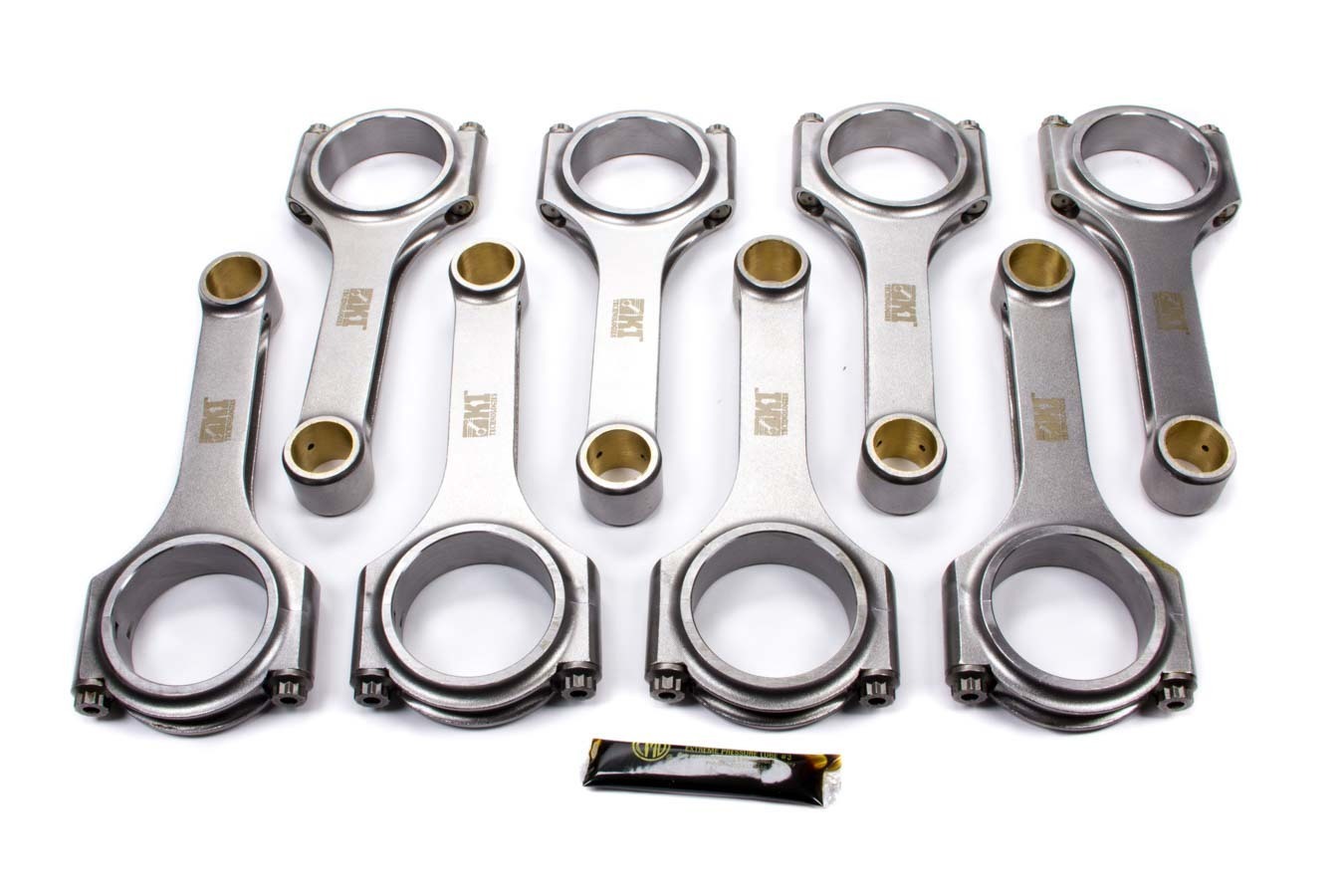

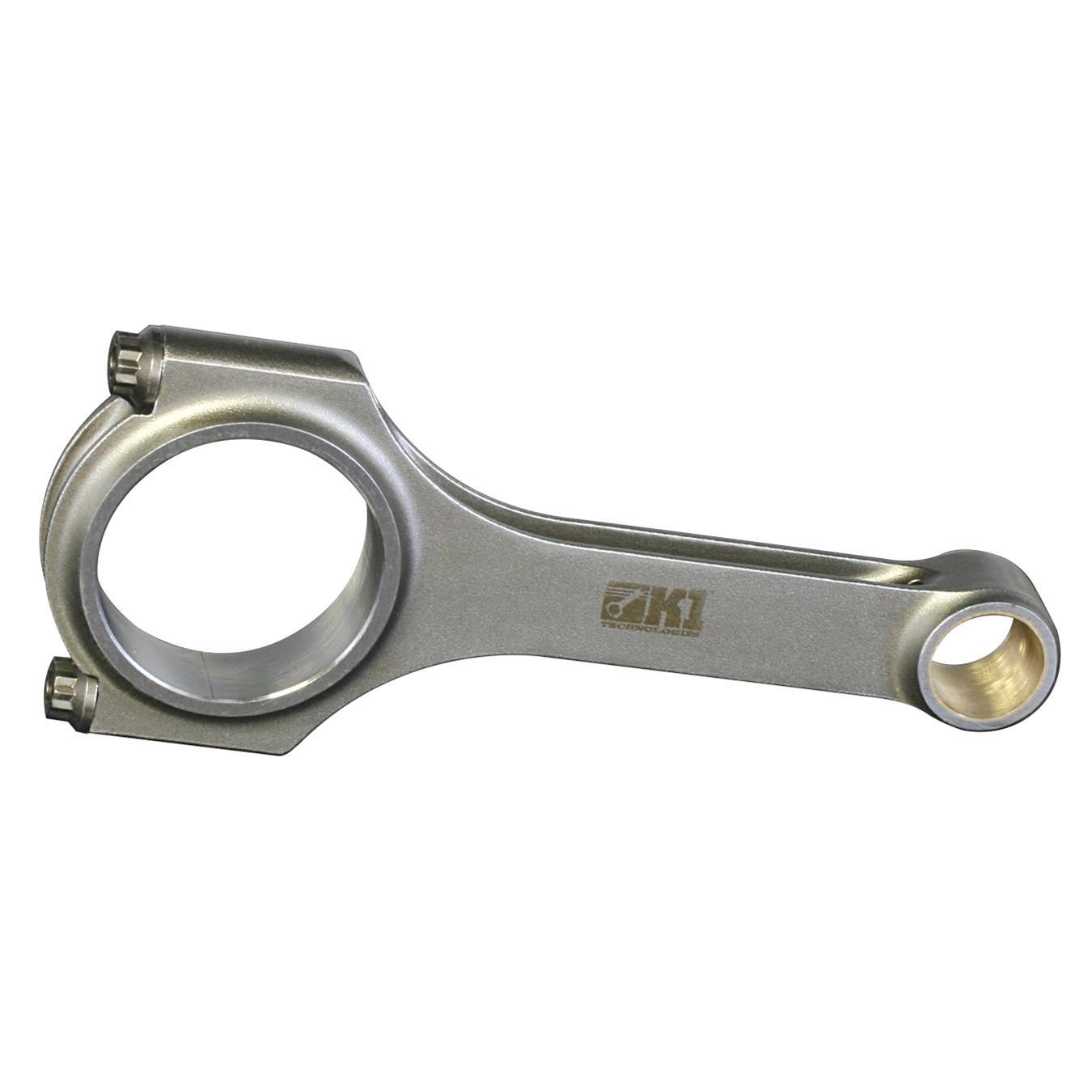

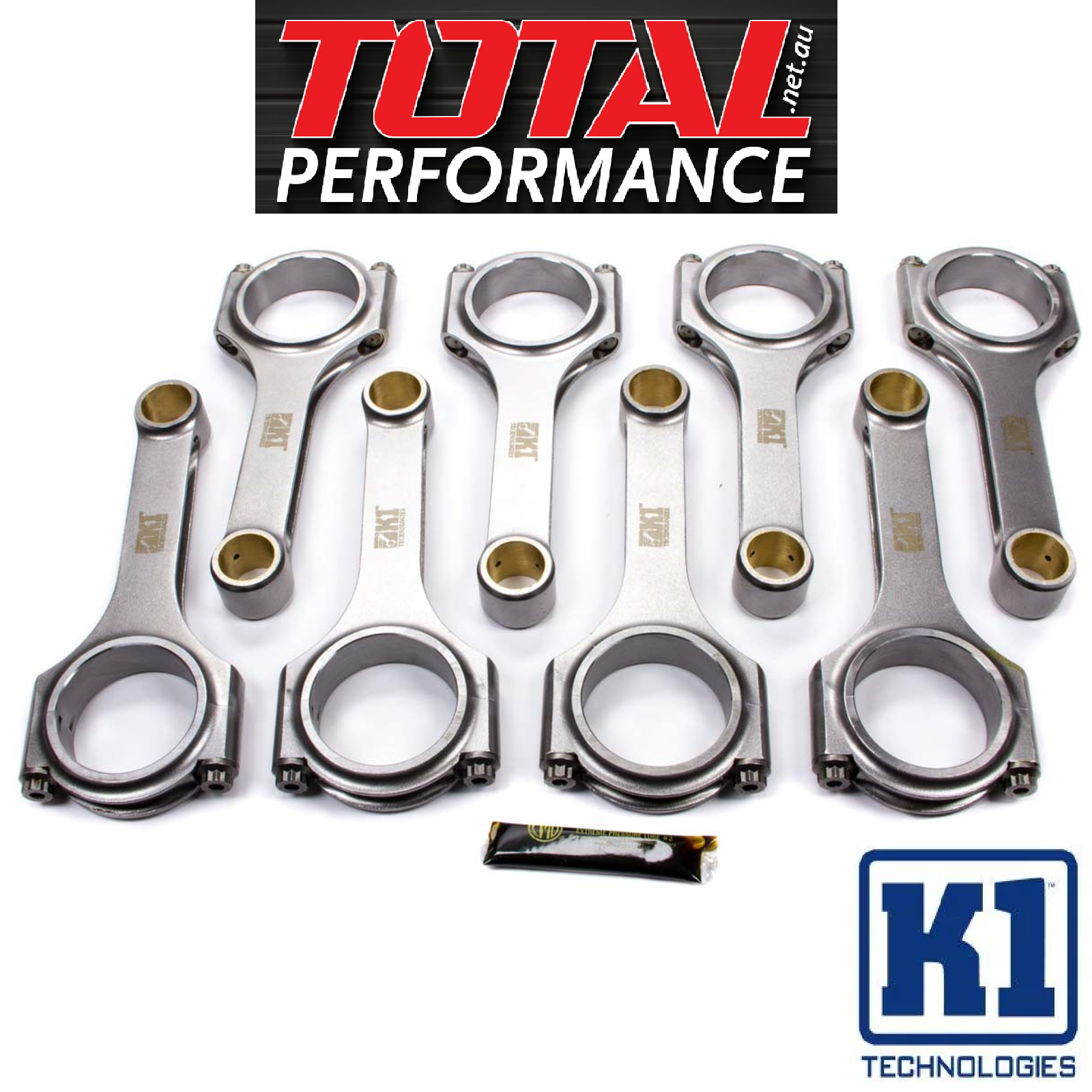

K1 Technologies H-Beam Billet LS Connecting Rods

K1 Technologies LS H beam billet connecting rods offer energy transfer technology at its best! Machined from billet 4340 steel, they're designed and finish-honed to some of the tightest tolerances in the industry. These rods are shot-peened for improved fatigue life and feature bronze wrist pin bushings and ARP 2000 rod bolts. K1 stroker conrods, performance with winning technology at an affordable price! K1 H beam billet LS connecting rods offer unbeatable world-class performance. Order the size and other options recommended for your application.

Connecting Rod Length Center to Center (in.):  6.125 in.

Connecting Rod Beam Style:  H-beam

Connecting Rod Material:  Forged 4340 steel

Connecting Rod Color:  Shot-peened

Wrist Pin Style:  Floating

Rod Journal Diameter (in.):  2.100 in.

Big End Bore Diameter (in.):  2.2250 in.

Big End Width (in.):  0.940 in.

Pin End Bore Diameter:  0.927 in. (Chevy)

Pin End Width (in.):  1.010 in.

Clearanced for Stroker:  No

Cap Retention Style:   Cap screw

Connecting Rod Bolt Brand:  ARP

Connecting Rod Bolt Diameter:   7/16 in.

Connecting Rod Bolt Material:  ARP 2000 SERIES

Fastener Tensile Strength (psi):   200,000 psi

Connecting Rod Bolt Head Style:   12-point

Approximate Connecting Rod Weight (g):   660

Weight Matched Set:   Yes

Magnafluxed:   Yes

Notes:   With bronze wrist pin bushings. Custom pistons required when using connecting rods with custom wrist pin diameter and longer than stock length.

Quantity:  Sold as a set of 8.
