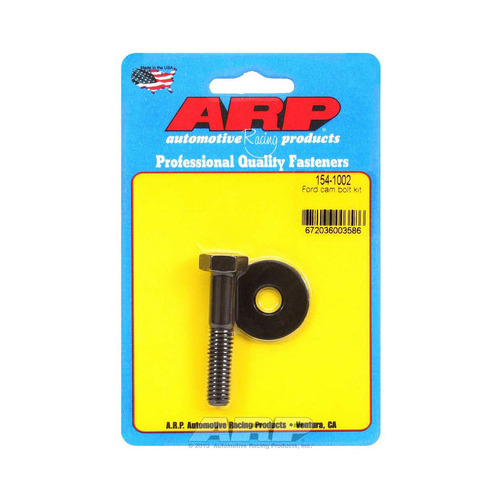

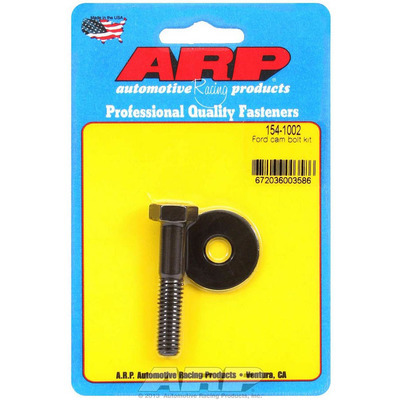

FORD WINDSOR CAM BOLT 5/8 HEX WITH WASHER 3/8 in bolt .-16 Thread 289, 302, 351W

by ARP

High-quality ARP cam bolts have increased preload clamping force to ensure positive timing gear register. Their increased material strength overcomes valvetrain harmonics and stress.

Fastener Material:   Chromoly

Fastener Finish:   Black oxide

Fastener Style:   Bolt

Fastener Head Style:   Hex head

Thread Size:   3/8 in.-16

Quantity:   Sold individually.

Notes:   High performance series 180,000 psi tensile strength.

NOTE:  CHECK BOLT DEPTH WITH AND WITHOUT WASHER TO MAKE SURE THE BOLT DOES NOT BOTTOM OUT WITH YOUR INSTALLED CAM GEAR. IF THE BOLT BOTTOMS OUT, YOU WILL NOT HAVE SUFFICIENT CLAMPING FORCE.
