LS MAIN STUDS KIT GEN 3 LS1 LS2 LS3 5.7L 6.0L 6.2L HOLDEN CHEV

LS MAIN STUDS KIT GEN 3

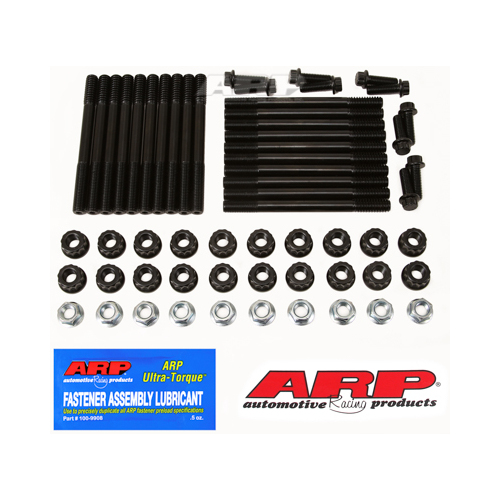

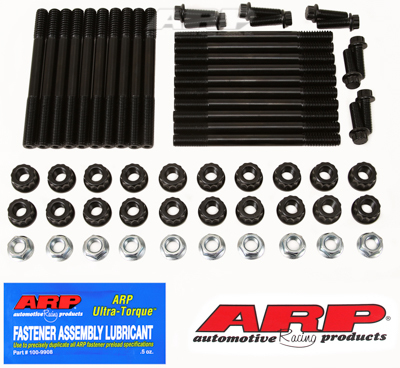

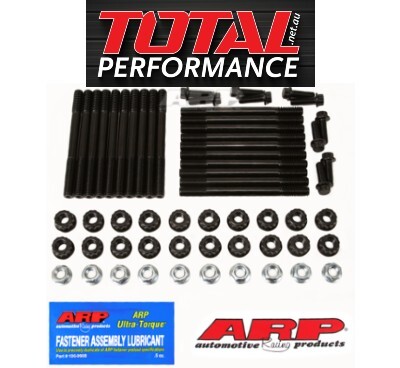

ARP Main Stud Kits

ARP main stud kits help eliminate main cap walk/fretting and protect the threads in your engine block. They include studs made from 8740 chromoly steel and heat-treated in-house to 190,000 psi tensile-strength rating. The precision J-form threads are rolled after heat-treat for much stronger threads than the competition. Kits come complete with hardened parallel-ground washers and high-quality nuts. Add confidence in the strength of your engine build with the ARP main stud kit designed for your application.

Socket Size(s)

• 16mm 12pt
• 14mm 12pt
• 10mm 12pt
• 4mm Allen

Main Bolt Style:                 6-bolt

Fastener Style:                  Stud

Fastener Nut Style:         Standard hex

Works with Windage Tray:           Yes

Fastener Tensile Strength (psi): 190,000 psi

Nuts Included:  Yes

Washers Included:          No

Quantity:             Sold as a kit.

Notes:

Works with the factory windage tray. Kit includes side bolts. Suits Gen III/LS Series small block and GMPP LSX blocks. New LT1 must use ARP-234-5802. Windage tray not included.

Installation Instructions: - please open the attached PDF.
