4.310'' ( +.060) 496 Stroker Pistons BBC 454 BIG BLOCK CHEVY, 4032 Forged, 39.8cc LARGE DOME CH 1.270"
Large Dome - Suits Stroker 4.250" x 6.385"
or 4 payments of $331.61 with
Info
*Free shipping on orders over $200
Description

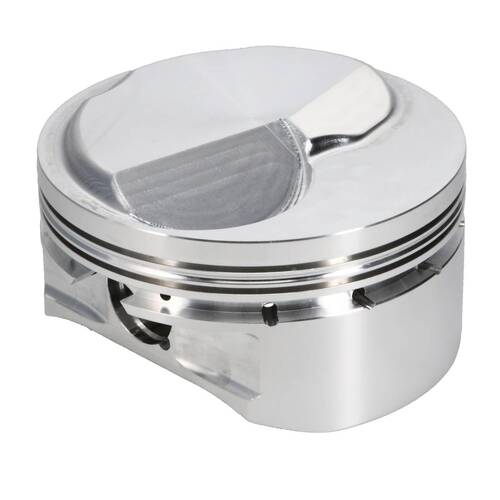

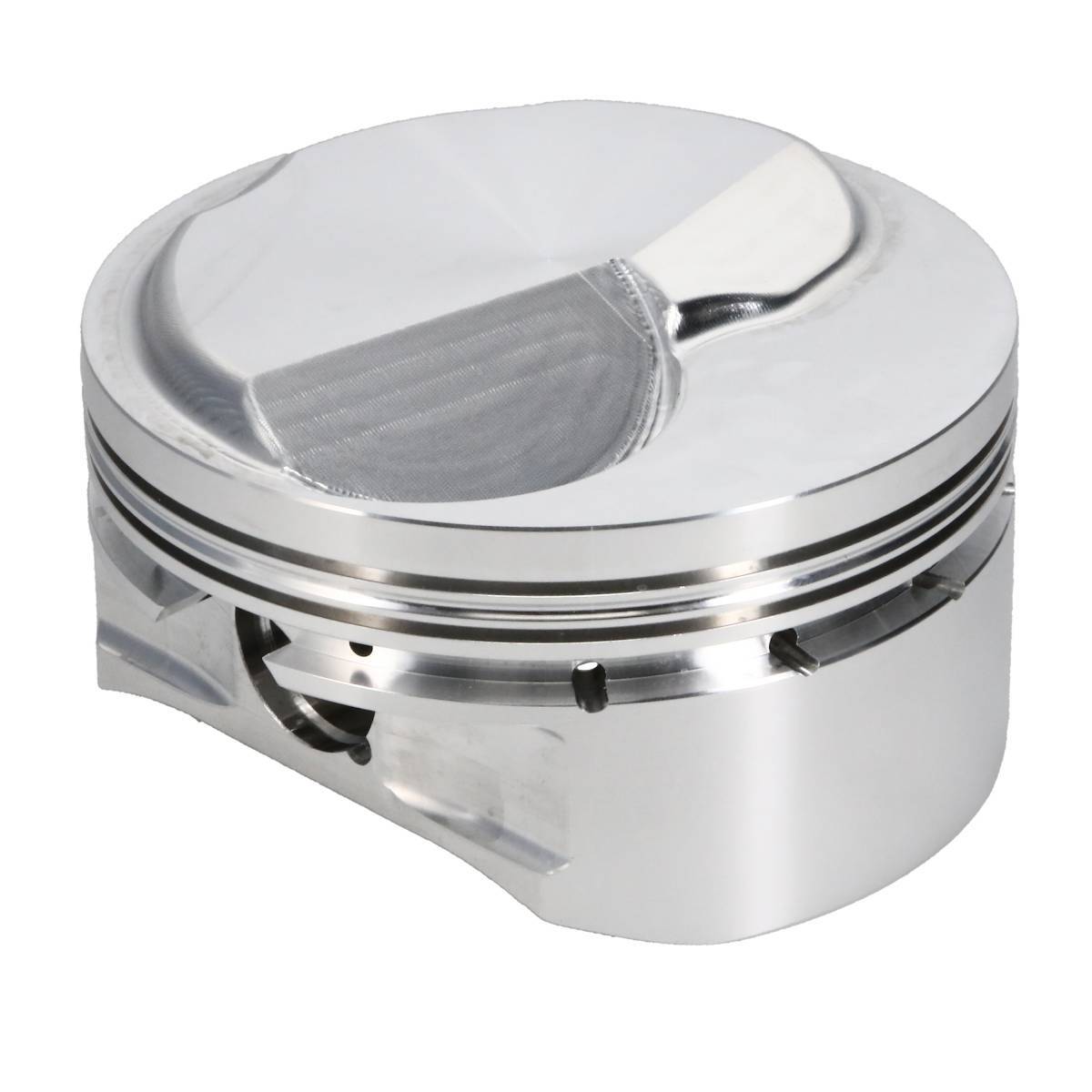

Auto Tec Pistons AT-1000676 Forged Large Dome Pistons.
Stroker Big Block Chevy 454
Auto Tec pistons are manufactured on a forged side relief, 4032 low expansion, high silicon material excellent for street/strip applications. Auto Tec pistons piston offer standard features like broached pin oilers for increased wrist pin lubrication, accumulator grooves, pin fitting wrist pins, wire locks included and 990-2800-51-15C wall wrist pin included. Auto Tec pistons have CNC Machined ring grooves that accept 1.5, 1.5, 3mm rings (Rings Sold Separately)
Bore Size: 4.310
Piston Oversize: + .060"
Piston Stroker Combination: STROKER Crank: 4.250" x Conrod 6.385
Crankshaft Stroke: 4.250"
Rod Length: 6.385
Piston Top Type: Large Dome
Compression Height: 1.270
Piston Material: 4032 Forged
Piston Ring Size: 1.5 1.5 3.0mm
Wrist Pin Size: 0.990" (Included)
Gudgeon Pin retention: Wire Locks (included)
BE ADVISED: IMAGE IS GENERIC AND MAY DIFFER FROM ACTUAL PRODUCT.
Specifications
| SKU | AT-1000676 |
| Brand | AUTOTEC |
