LS3 1 single bolt to 3 bolt Camshaft Timing Chain Gear Sprocket conversion kits LS2 LS3 Multi Trigger

SKU: BTR-12B

LS3 1 single bolt to 3 bolt Camshaft Timing Chain Gear Sprocket conversion kits LS2 LS3 Multi Trigger

LS3 Single Bolt to 3 Bolt conversions.

$84.70

or 4 payments of $21.18 with Info

SOLD OUT

*Free shipping on orders over $200

Notify Me

Description



PERFECT FOR 3 BOLT CAM INSTALLS!

BTR 3 Bolt Cam/Camshaft Conversion Kit-GM LS2/LS3.

LS2 LS3 Single Bolt Camshaft conversion to 3 Bolt Camshaft



This conversion kit is designed to allow installation of a 3-bolt style camshaft into a 2006 and newer LS2/LS3 engine that currently utilizes a single bolt camshaft. Some 2006+ Gen IV LS2/LS3 engines originally used a single bolt camshaft which has been known to potentially shear the camshaft dowel pin which allows the camshaft to come out of time with the engine crankshaft, resulting in catastrophic damage. This upgrade kit allows use of the superior 3-bolt camshaft design.

BTR 1-bolt to 3-bolt conversion kits will allow you to convert your Chevrolet LS Series 1-bolt to a 3-bolt LS camshaft. These kits include LS2/LS3 3-bolt, 4-pole 58X cam gear, and LS2/LS3 and LS7 style timing chain damper. Cam bolts are included.

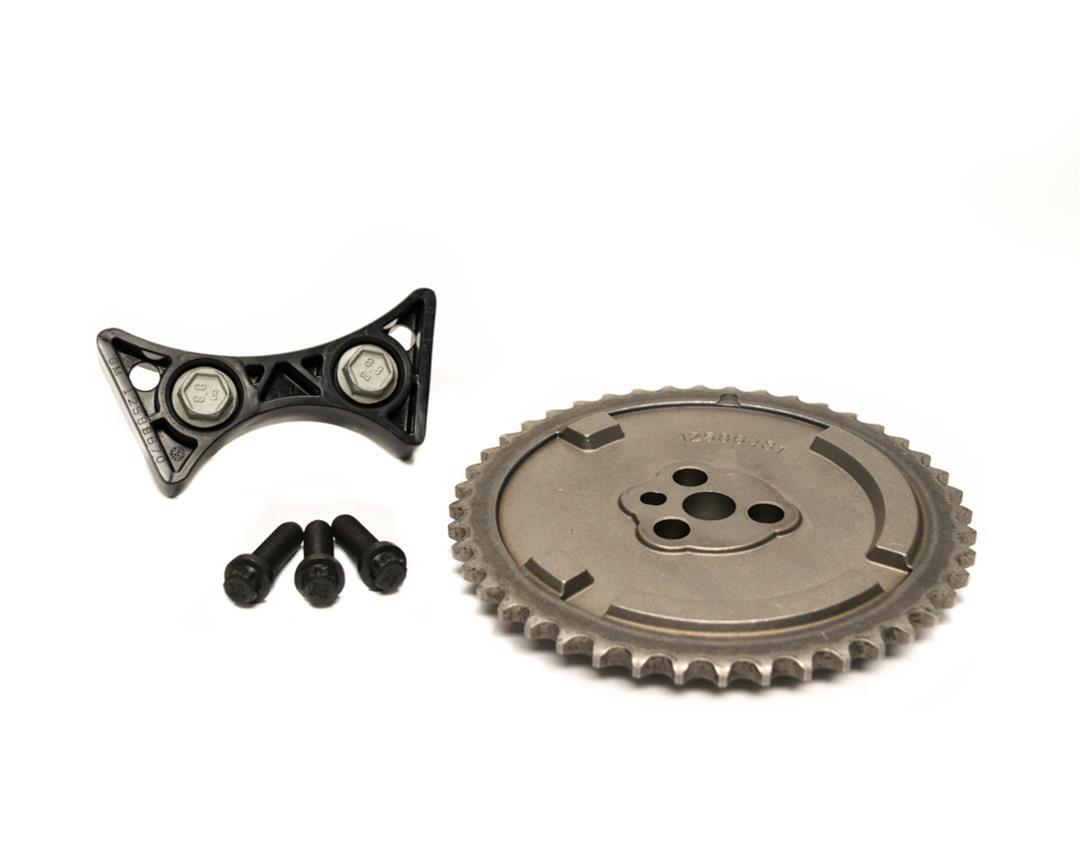

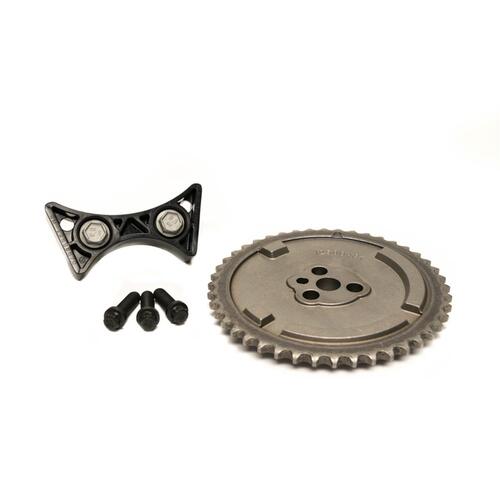

Kit Includes:

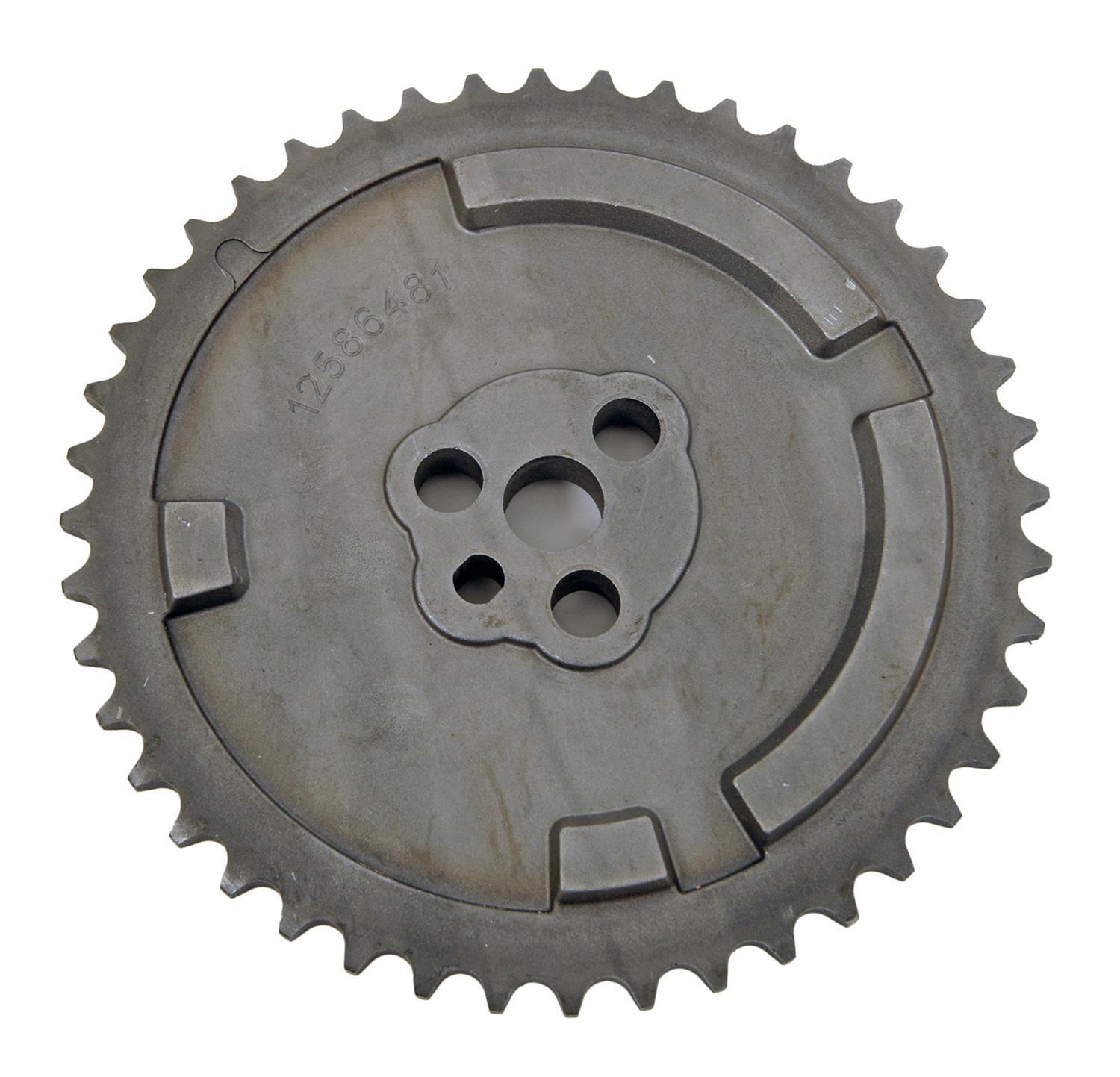

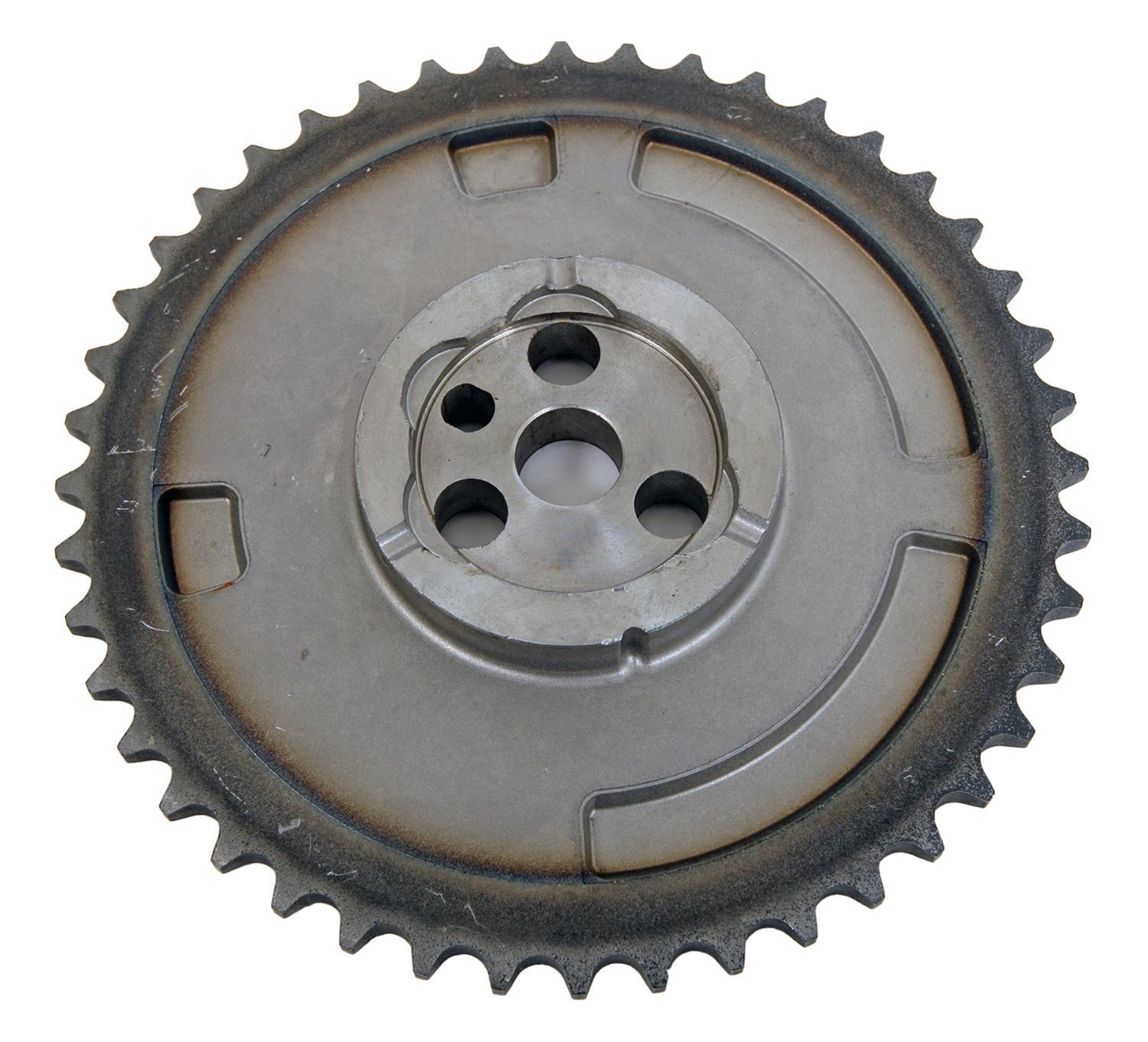

  • (1) Chevrolet Performance 3 Bolt 4 Pole Cam Gear (P/N 12586481)

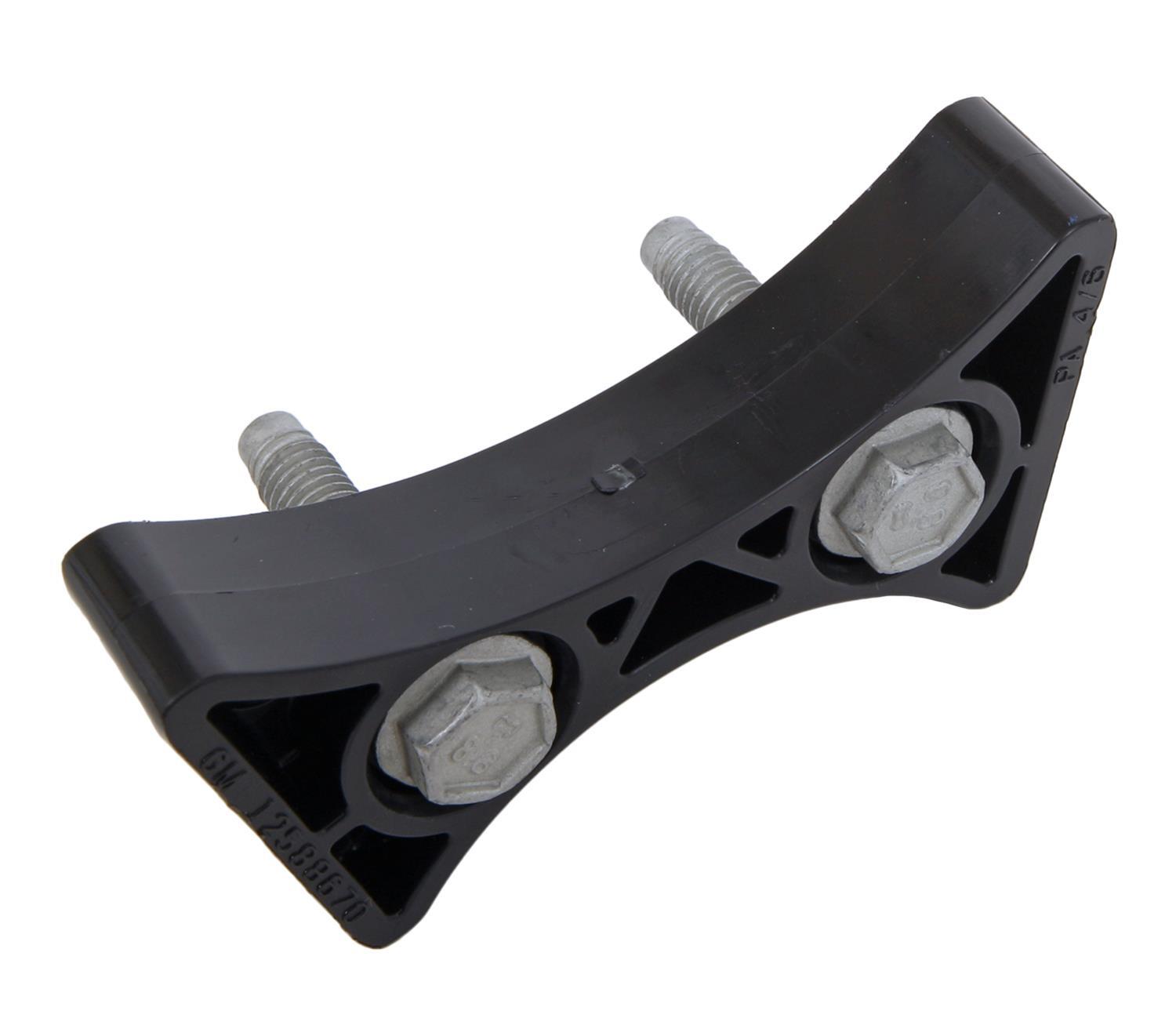

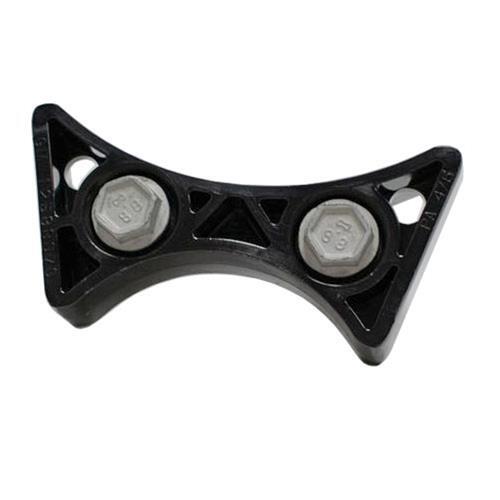

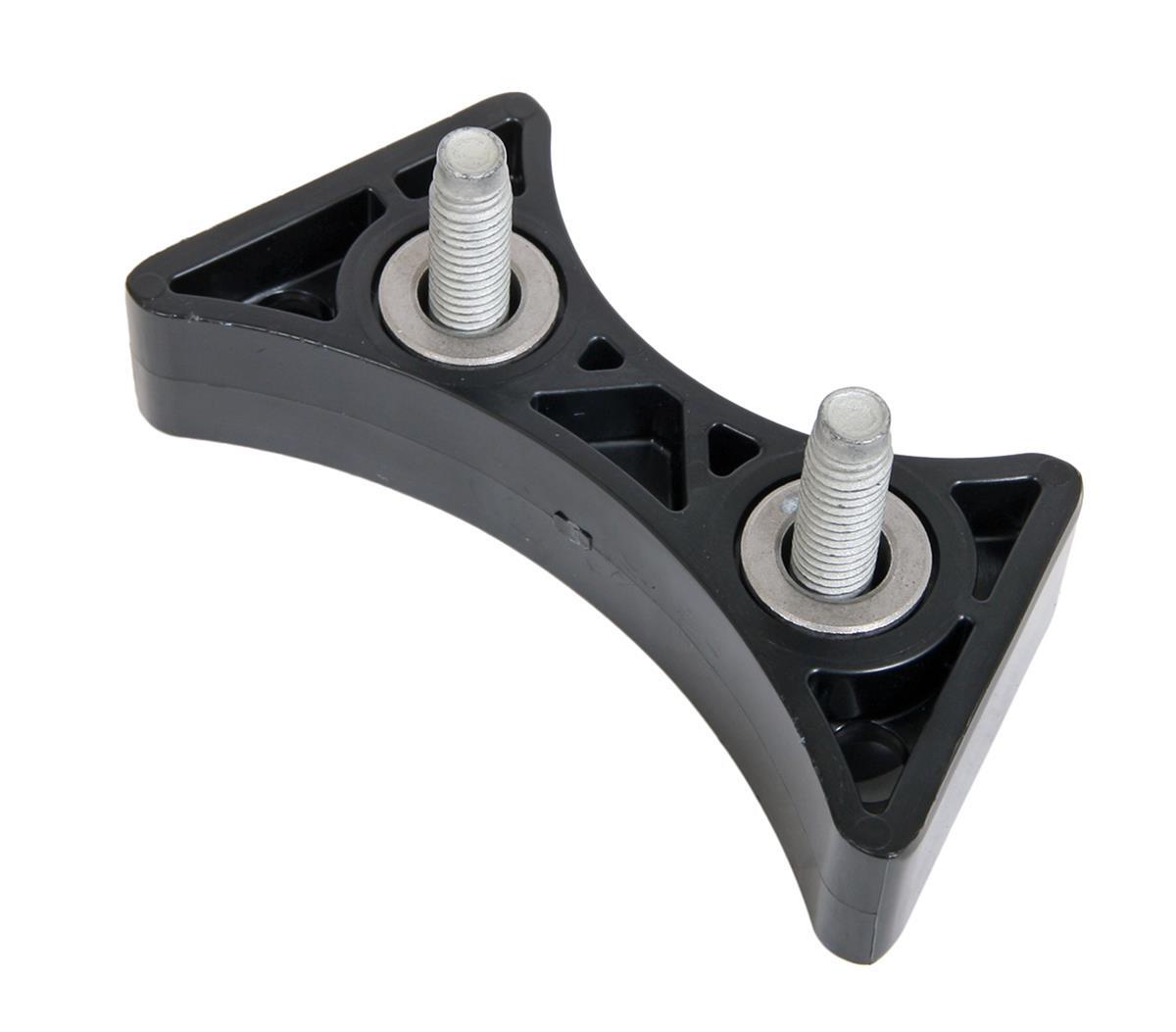

  • (1) Chevrolet Performance LS2/LS3/LS7 Timing Chain Dampener (P/N 12588670)

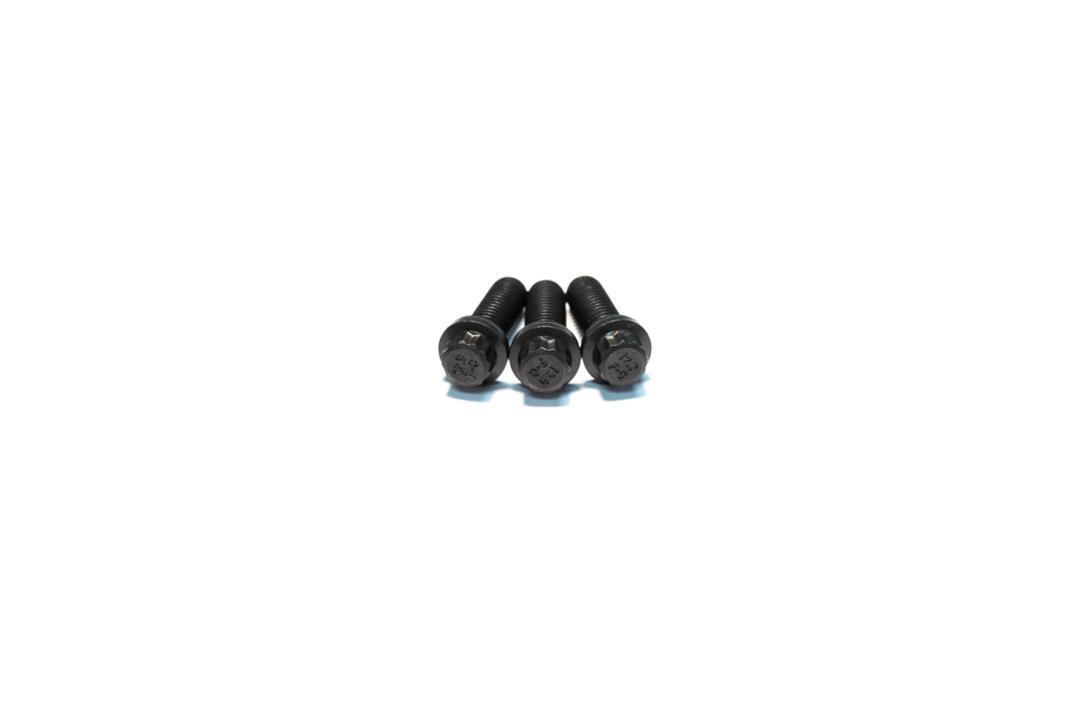

  • (1) 3 LS Cam Bolts



NOTE: This kit requires reuse of your original crankshaft sprocket.

BE ADVISED: IMAGE MAY DIFFER FROM ACTUAL PRODUCT.

Specifications

SKU BTR-12B
Brand BTR BRIAN TOOLEY
chain type Double Roller
Camshaft Gear Material Billet Steel
Crankshaft Gear Material Billet Steel
Number Of Crankshaft Keyways 3
Timing Set Series Adjustable
