SKU: 4928CPG

Valve Spring Install Height Micrometer Measure Tool V8 1.400" - 1.800" Range Holden V8

Fits Holden V8

$211.93

or 4 payments of $52.98 with Info

IN STOCK  FREE SHIPPING

*Free shipping on orders over $200


Description

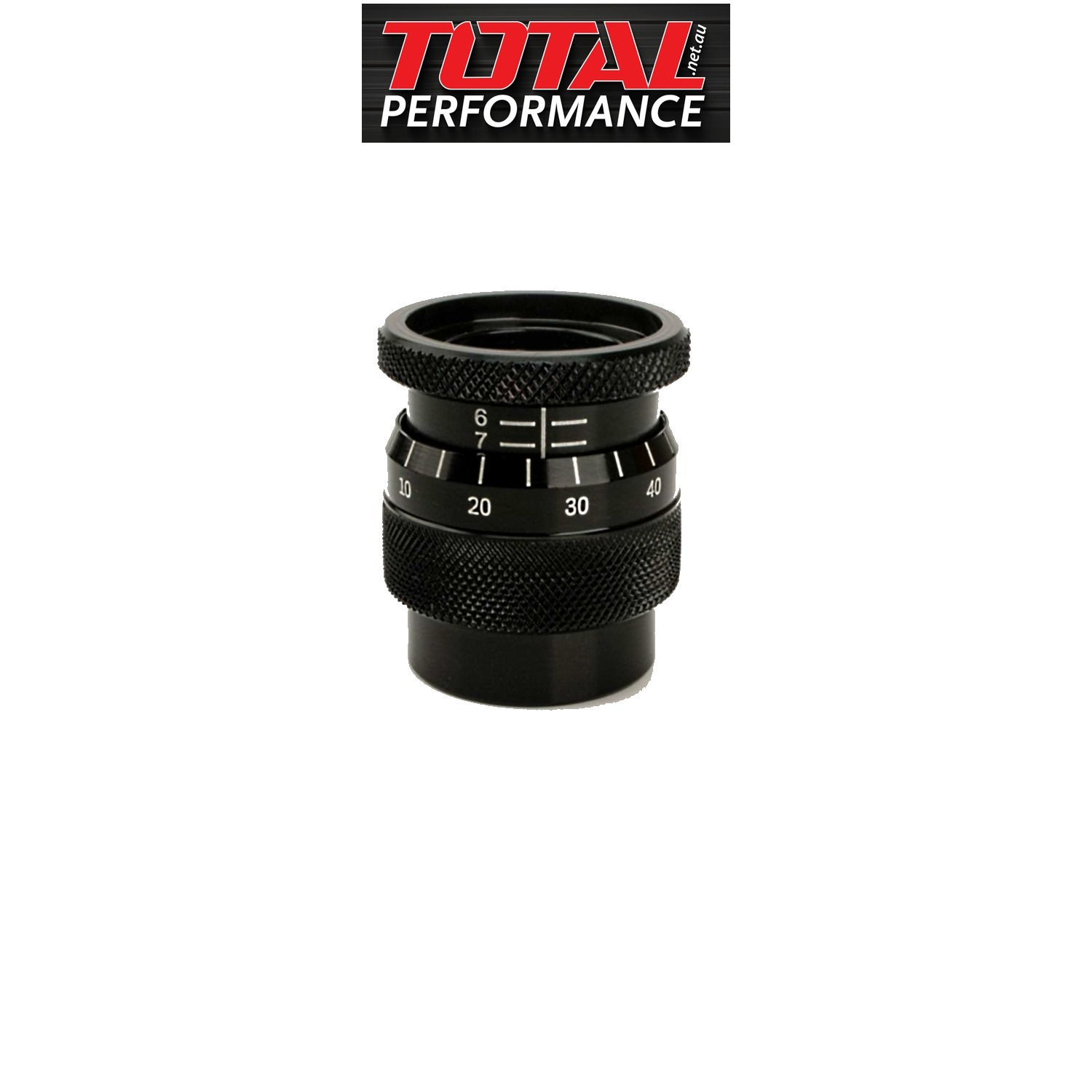

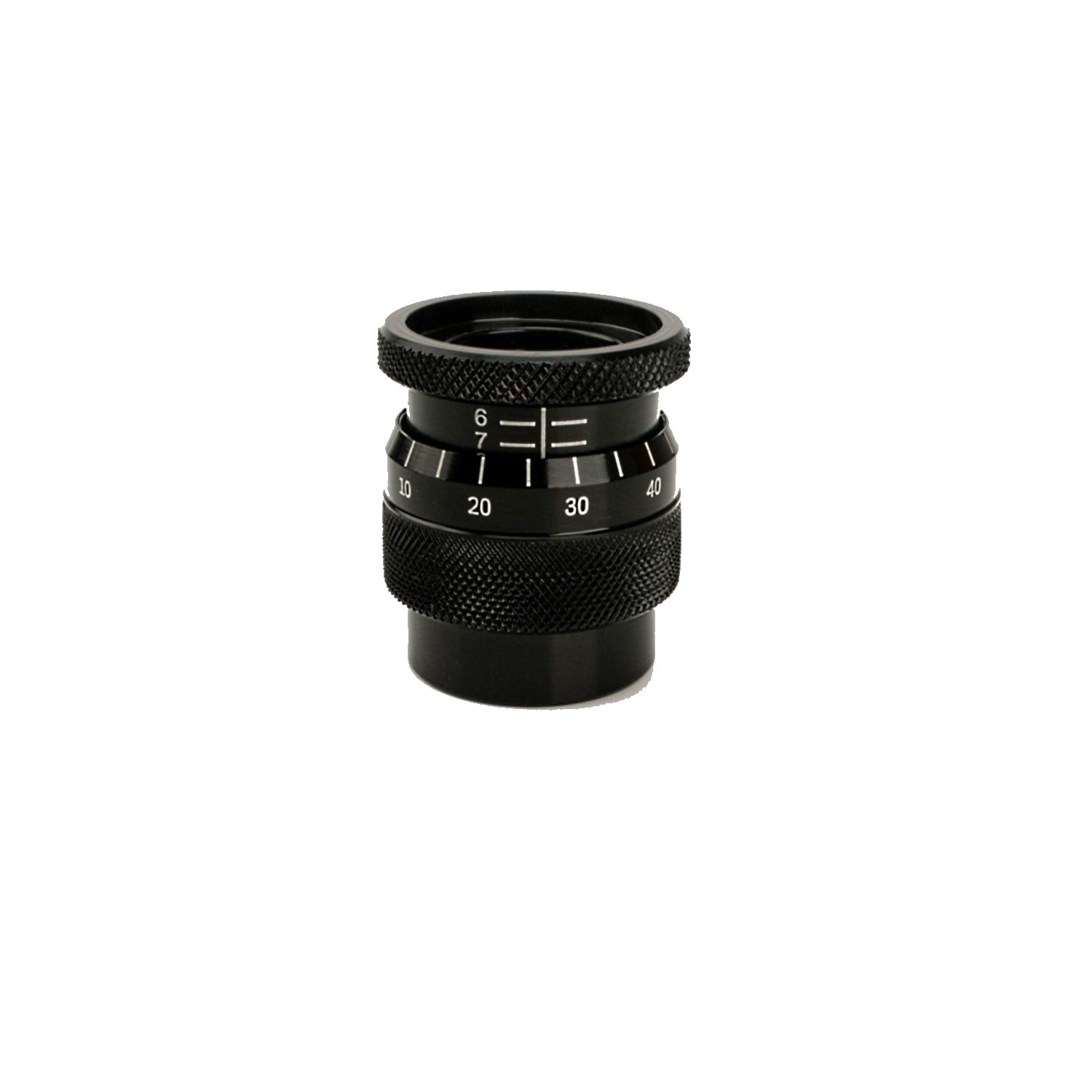

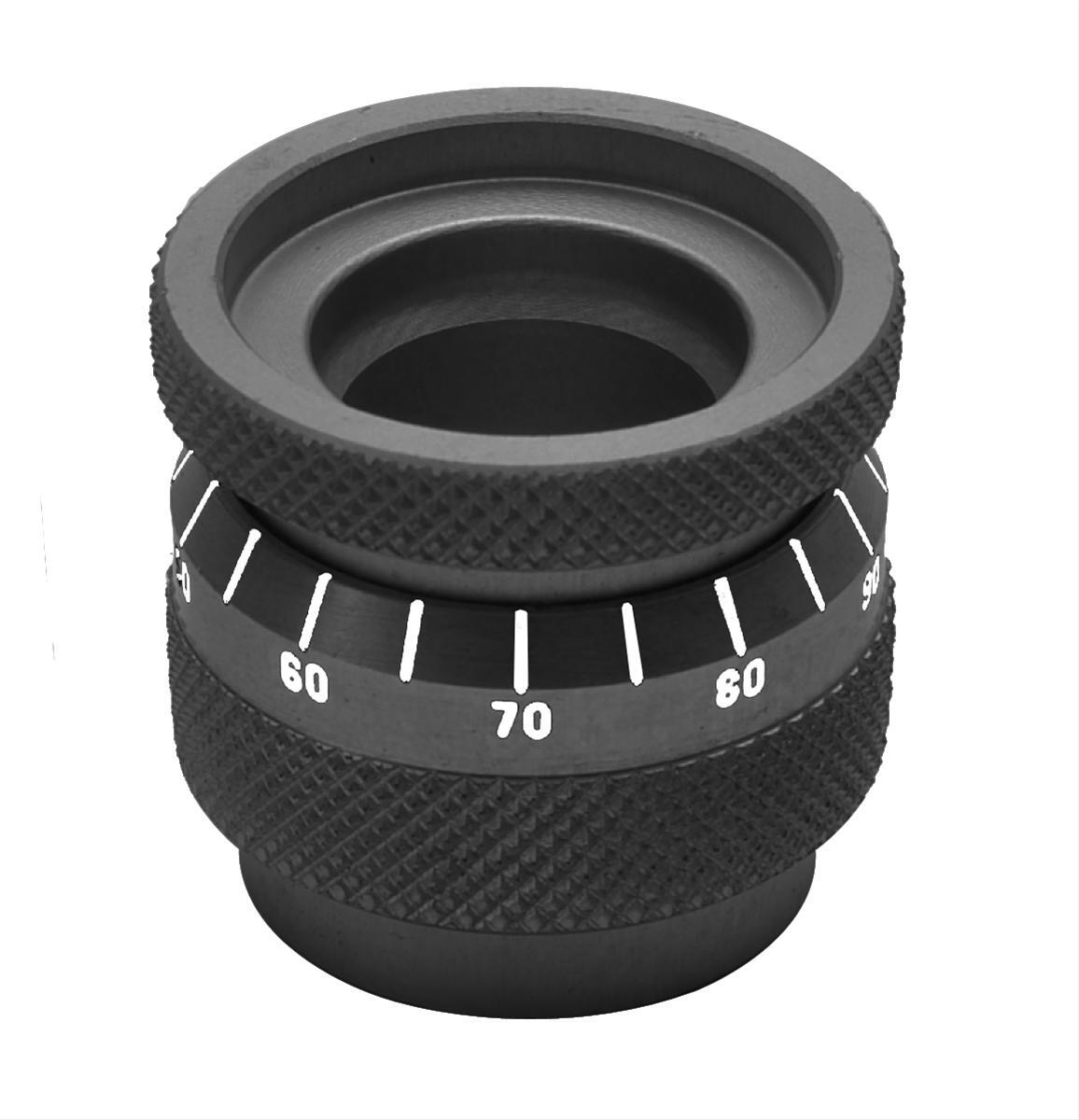

Comp Cams 4928 Valve Spring Install Height Micrometer Tool - Holden V8

Suits the smaller installed heights of the Chevy, Holden 308 V8 up to 1.800" installed heights and 1.500" diameter valve springs.

COMP Cams valve spring height micrometers are the quickest, easiest, and most accurate way to measure valve spring installed height for your Chevy & Holden. This Valve Spring Height tool install just like a valve spring and then the tool is turned and wound until it has fully seated the valve, locks, and retainer. By simulating the valve spring installation, the spring height tool is able to read the installed height measurement precisely.

• Install just like a spring, then is wind/expanded until it fully seats valve, locks and retainer to check your valve spring install seat height.

Quickest, easiest, most accurate way to measure valve spring installed height

• Install just like a spring, then is expanded until it fully seats valve, locks and retainer.

• Simulated installation allows ultra precise readings

• Tool is read like a micrometer and is accurate to .001”

Micrometer Range (in.):   1.400-1.800

Micrometer Increments:   0.0050 in.

Maximum Valve Spring Retainer Diameter (in.):   1.500

Micrometer Material:   Aluminum

Micrometer Finish:    Black

Specifications

SKU 4928CPG
Barcode # 036584720614
Brand COMP CAMS
