SKU: 12-433-8

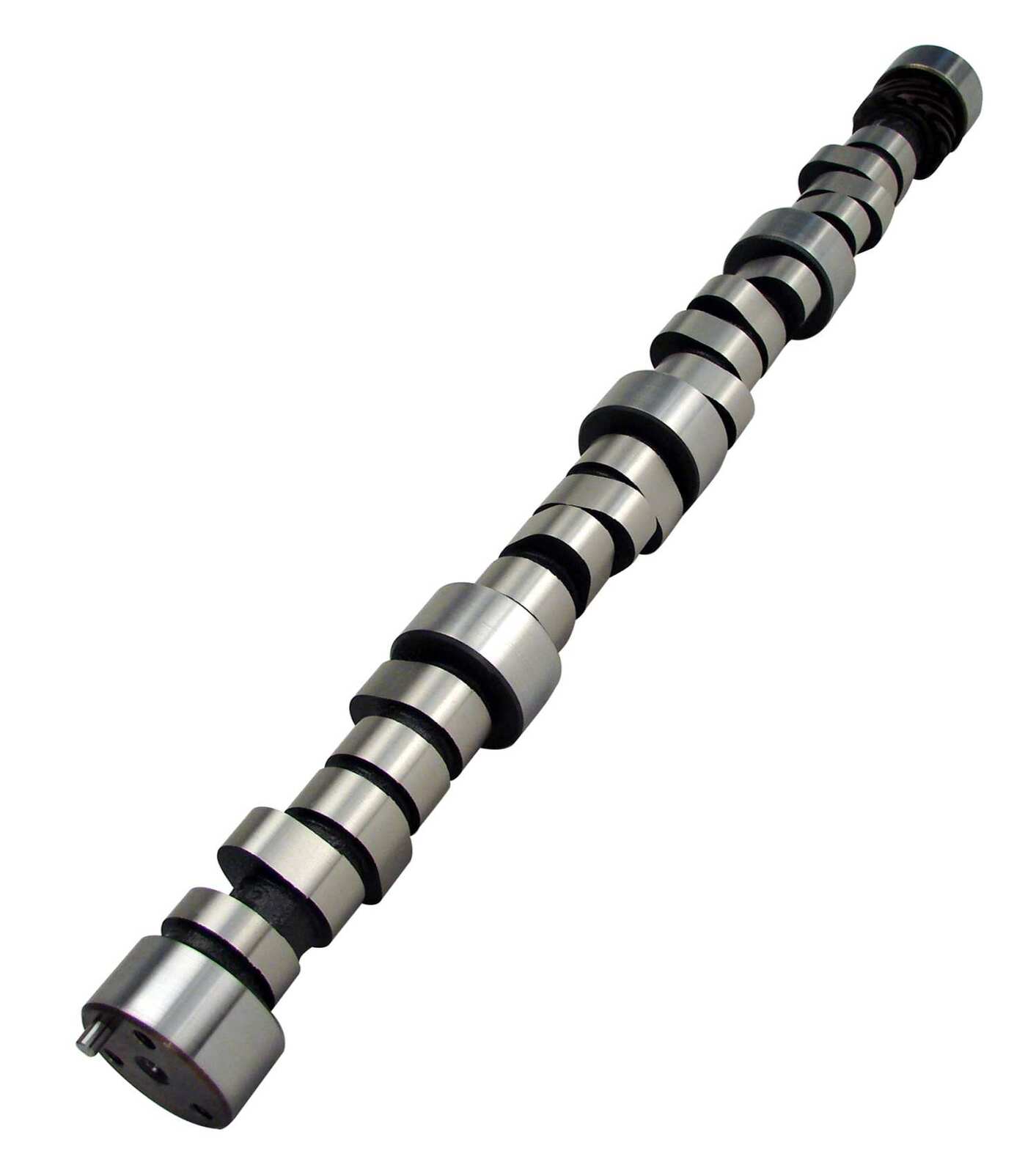

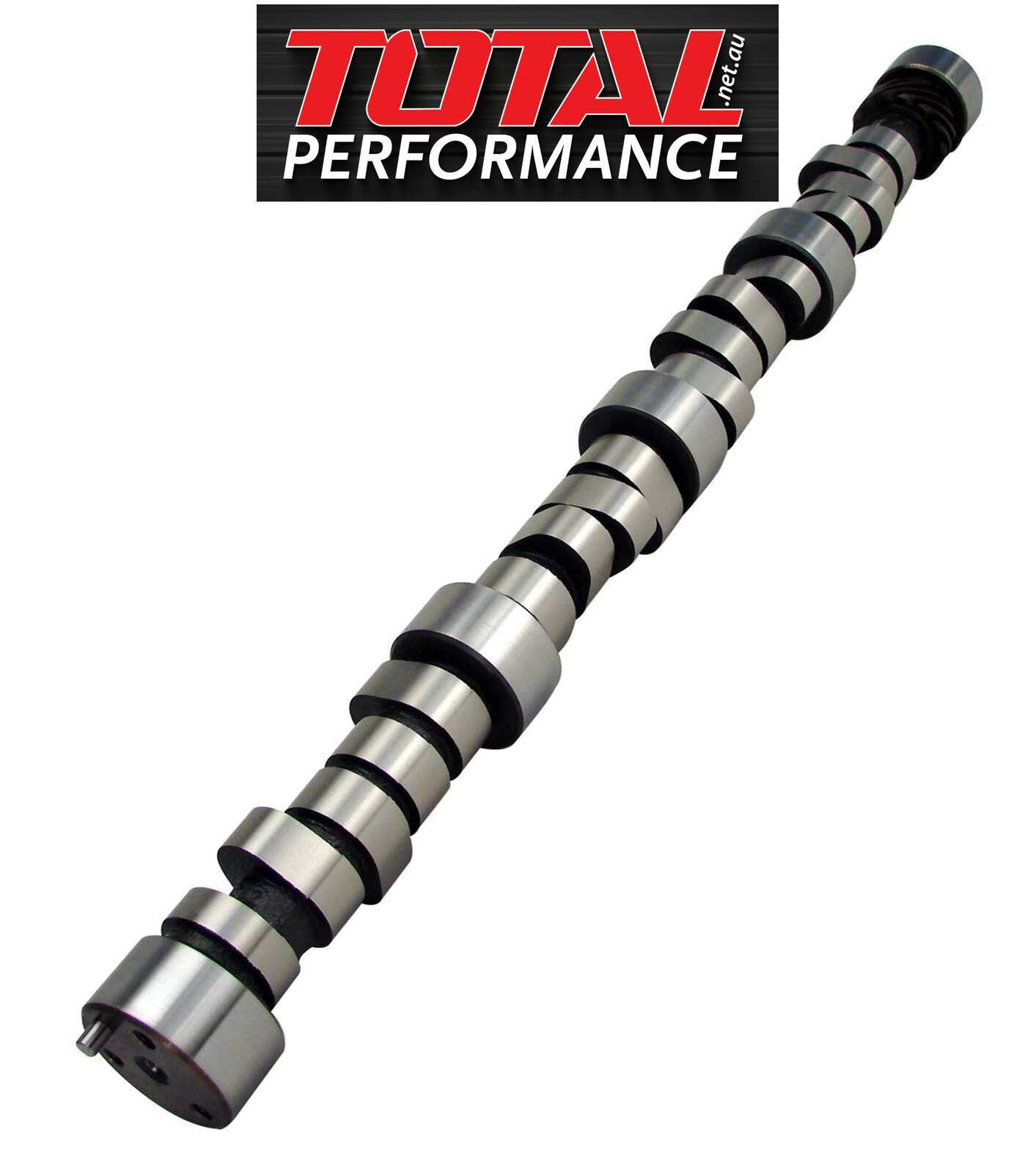

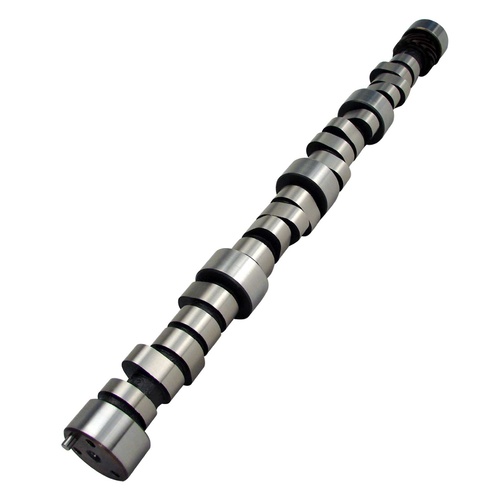

SBC XR288HR 236/242 LSA 110 Hydraulic Roller Camshaft Chevy Small Block Xtreme Energy .520"/.540"

RPM Range: 2500 - 6000

$948.02

or 4 payments of $237.00 with Info

IN STOCK  FREE SHIPPING

Description

COMP Cams Xtreme Energy 236/242 Hydraulic Roller Cam for Chevrolet Small Block
Street/strip applications, 9:1 compression, rough idle intake, headers, 2800+ stall, gears, Grind No# XR288HR

Cam Specs
Advertised Duration: 288/294

Duration @ .050 Inch Lift: 236/242

Valve Lift: 0.52/0.54

Lobe Separation:110



Specifications

SKU 12-433-8
Barcode # 036584025184
Brand COMP CAMS
intake valve lift 0.52
Exhaust Valve Lift 0.54
Lifter Type Hydraulic Roller
Advertised Exhaust Duration 294
Advertised Intake Duration 288
Cam Type Hydraulic Roller
Exhaust Duration At .050 Inch Lift 242
Intake Duration At .050 Inch Lift 236
Lobe Separation 110
Camshaft Series Xtreme Energy
Grind Number XR288HR
Basic Operating Rpm Range 2,500-6,000
Lifters Included No
Valve Springs Required Yes
Camshaft Gear Attachment 3-Bolt
Camshaft Material Austempered Ductile Iron
