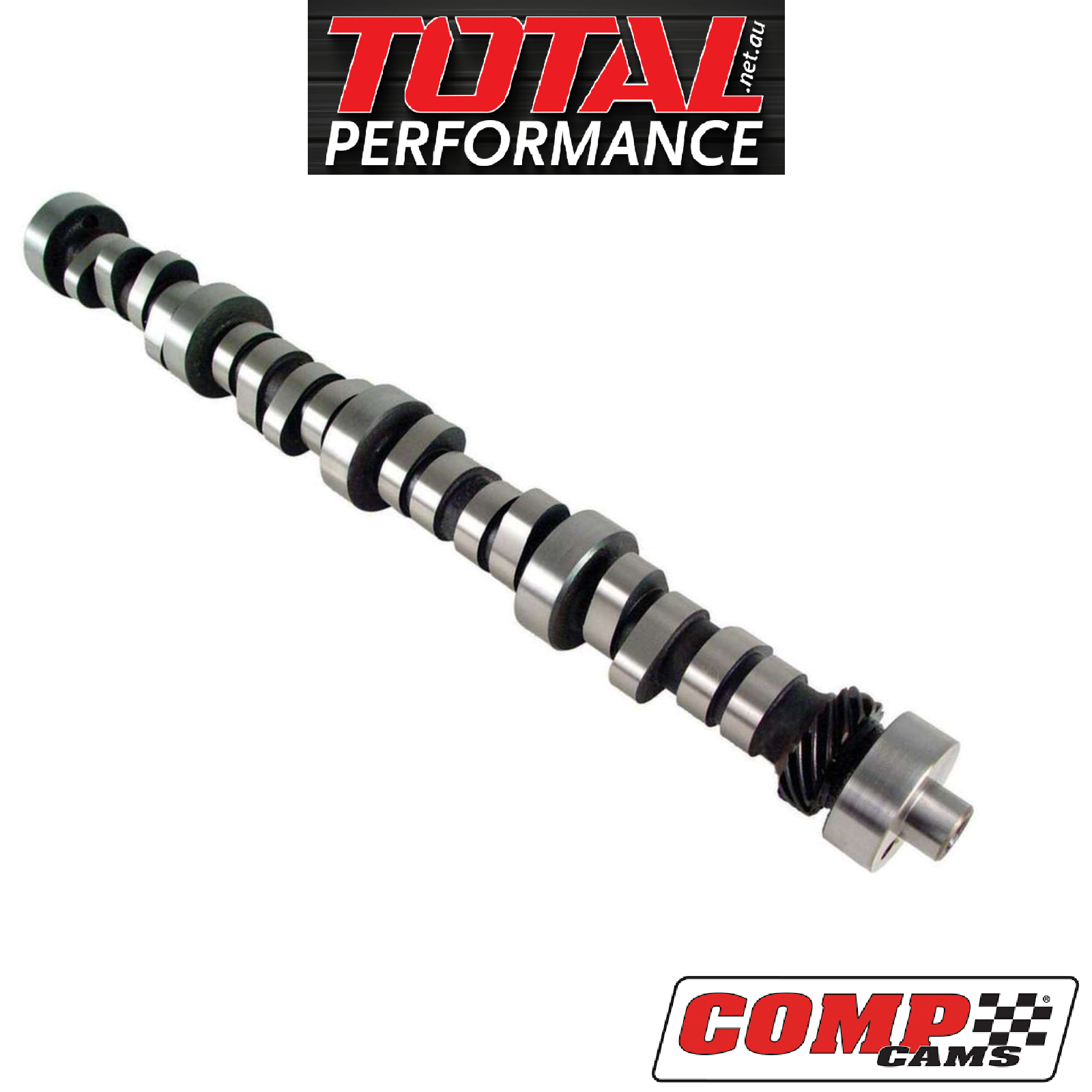

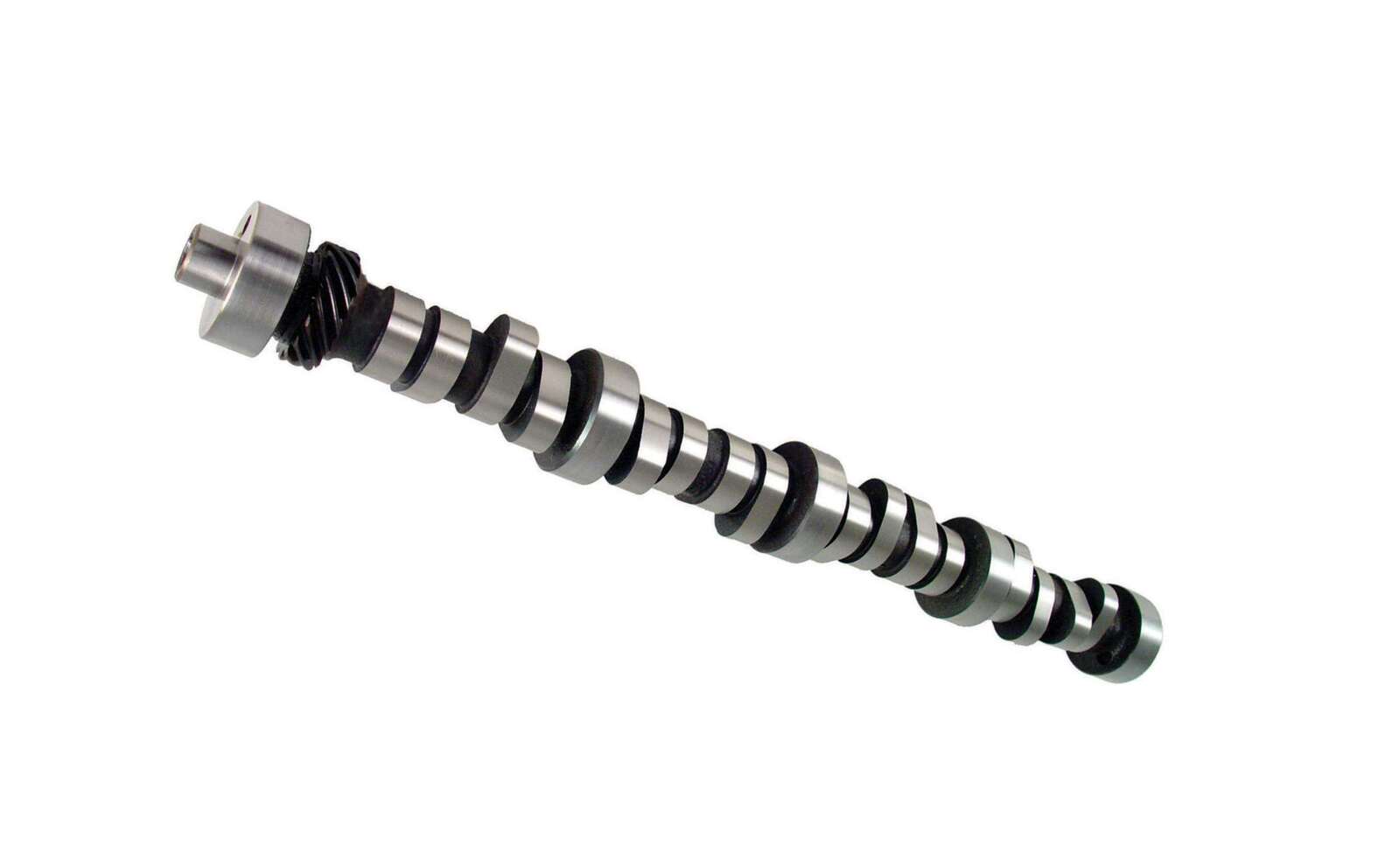

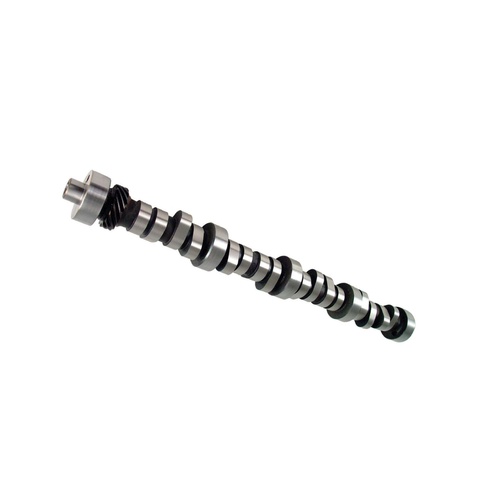

286HR Magnum 230/230 LSA 110 598/598 lift Hydraulic Roller Camshaft Ford 302 5.0L Windsor -OEM large base circle

SKU: 35-450-8

286HR Magnum 230/230 LSA 110 598/598 lift Hydraulic Roller Camshaft Ford 302 5.0L Windsor -OEM large base circle

RPM Range: 3000-6500 OEM Large Base Circle - High Lift

RRP $1,081.30 SAVE $96.80 (9%)

$984.50

or 4 payments of $246.12 with Info

IN STOCK FREE SHIPPING

*FREE SHIPPING ON ORDERS OVER $200!

Description

Comp Cams, 302 Windsor Hydraulic Roller Camshaft. 230/230.

Street/strip applications. 5 speed or 2500+ stall, 4.10 or lower gears with higher compression. Aftermarket intake and exhaust. Great for 347 Stroker builds with Windsor DRP Cylinder Heads!

Suits the OEM Roller Engine Blocks.

Engine Family: Ford 5.0L (1985-2002) Windsor

RPM Operating Range: 3,000-6,500

Grind Number: 286HR

Cam Type: Hydraulic Roller

Lifter Style: Hydraulic Roller

Camshaft Series: Magnum

Usage: Street/Strip

Advertised Intake Duration: 286

Advertised Exhaust Duration: 286

Intake Duration at .050 Inch Lift: 230

Exhaust Duration at .050 Inch Lift: 230

Intake Valve Lift: 0.598

Exhaust Valve Lift: 0.598

Lobe Lift Intake: 0.373

Lobe Lift Exhaust: 0.373

Lobe Separation: 110

Intake Centerline: 106

Exhaust Close ATDC: 29

Intake Open BTDC: 37

Exhaust Open BBDC: 77

Intake Close ABDC: 69

Camshaft Gear Attachment: 1-Bolt

Recommended Valve Springs - click the links below:

Specifications

SKU	35-450-8
Barcode #	036584780090
Brand	COMP CAMS
intake valve lift	0.598
Exhaust Valve Lift	0.598
Lifter Type	Hydraulic Roller
Advertised Exhaust Duration	286
Advertised Intake Duration	286
Cam Type	Hydraulic Roller
Exhaust Duration At .050 Inch Lift	230
Intake Duration At .050 Inch Lift	230
Lobe Separation	110
Camshaft Series	Magnum
Grind Number	286HR
Basic Operating Rpm Range	3,000-6500
Lifters Included	No
Valve Springs Required	Yes
Camshaft Gear Attachment	1-Bolt
Camshaft Material	Austempered Ductile Iron
