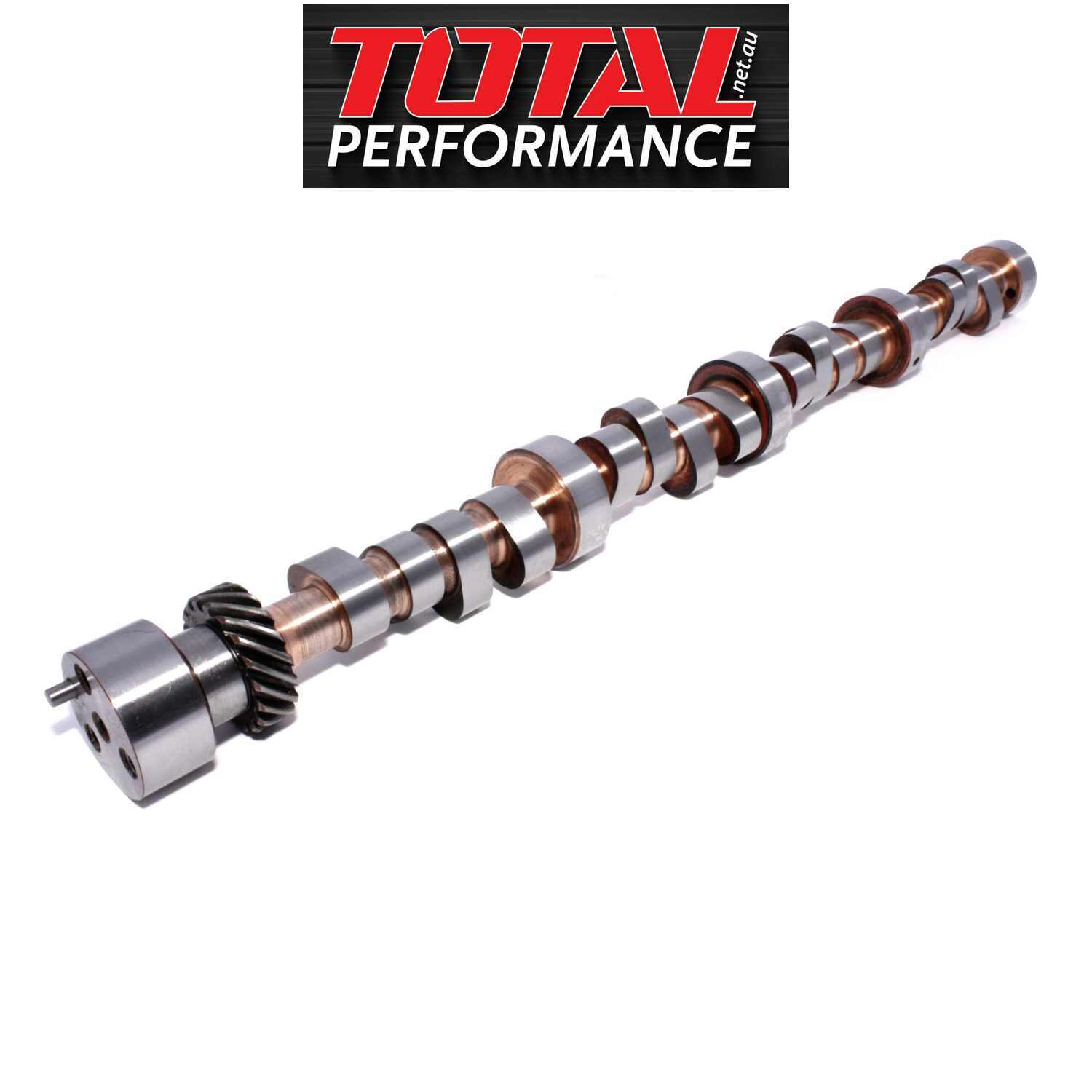

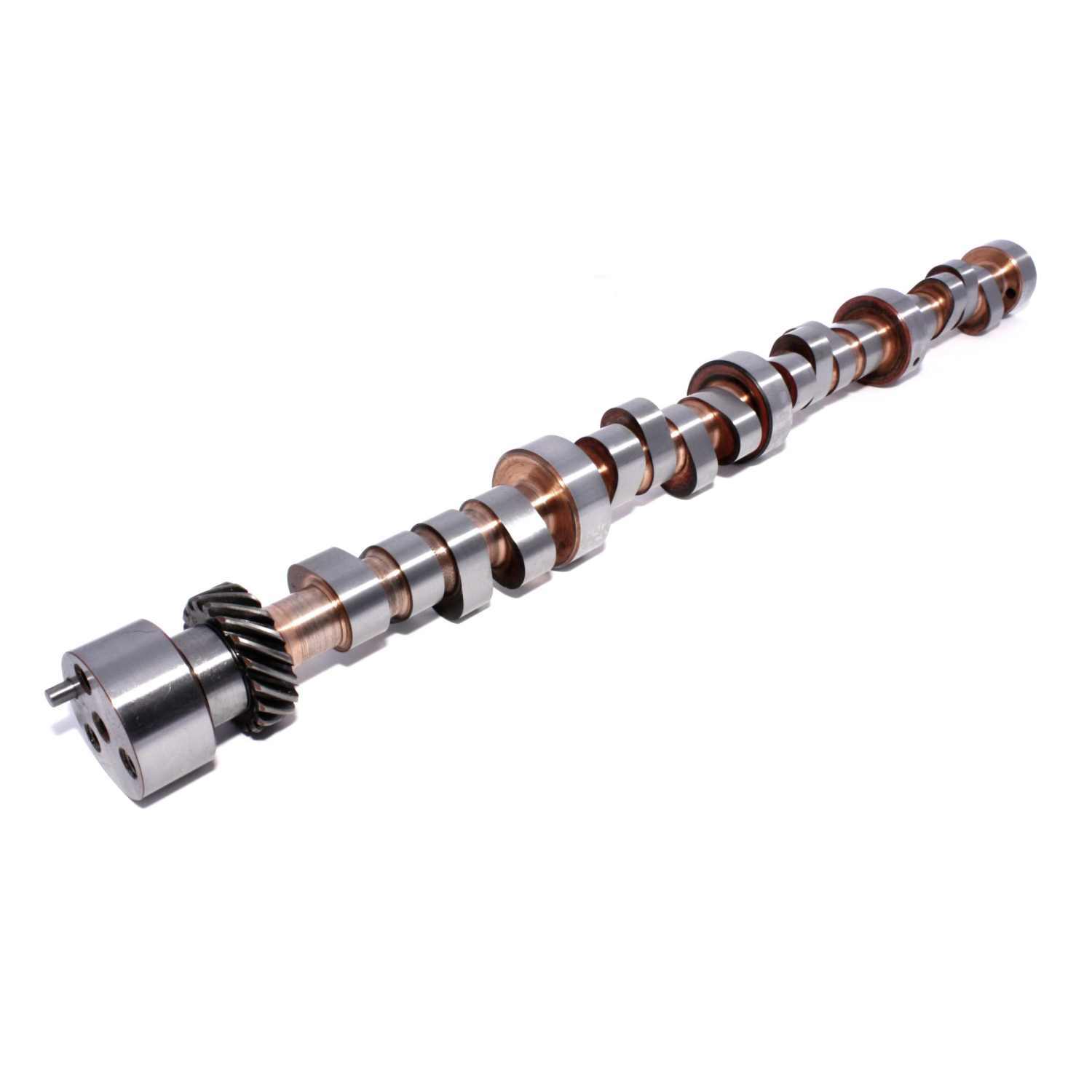

Xtreme Energy 224/230 Hydraulic Roller Camshaft, Chrysler Big Block 383-440 Mopar

** FREE SHIPPING ON ORDERS OVER $200 **

Description

3.55-4.10 gear, 2000 stall in 440, 2200+ in 383, 9:1 compression, high performance street.

Specifications

SKU	23-710-9
Barcode #	036584117902
Brand	COMP CAMS
intake valve lift	0.538
Exhaust Valve Lift	0.534
Lifter Type	Hydraulic Roller
Advertised Exhaust Duration	282
Advertised Intake Duration	274
Cam Type	Hydraulic Roller
Exhaust Duration At .050 Inch Lift	230
Intake Duration At .050 Inch Lift	224
Lobe Separation	110
Camshaft Series	Xtreme Energy
Grind Number	XR274HR-10
Basic Operating Rpm Range	1,800-5,800
Lifters Included	No
Valve Springs Required	Yes
Camshaft Gear Attachment	3-Bolt
Camshaft Material	Billet Steel
