SKU: 243440

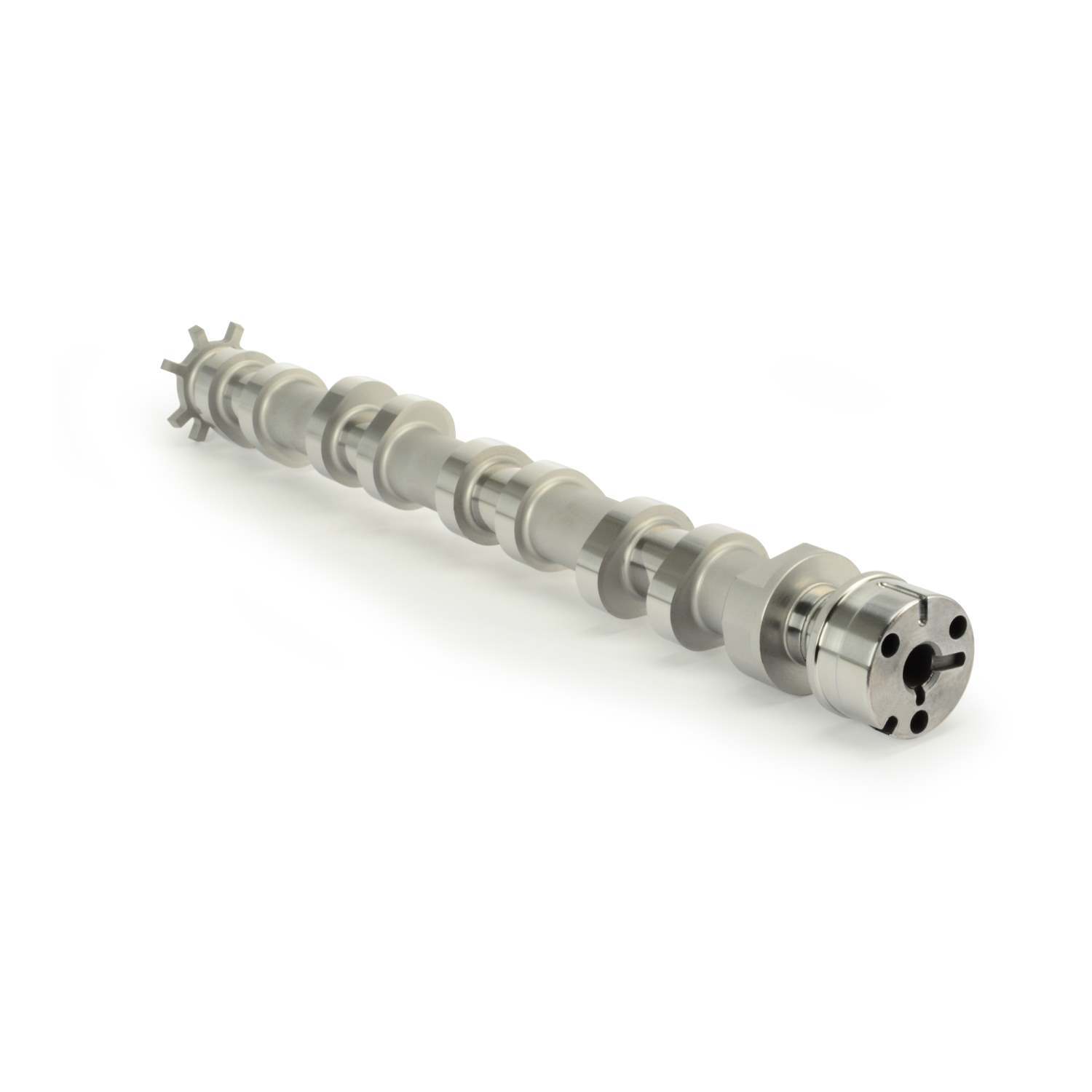

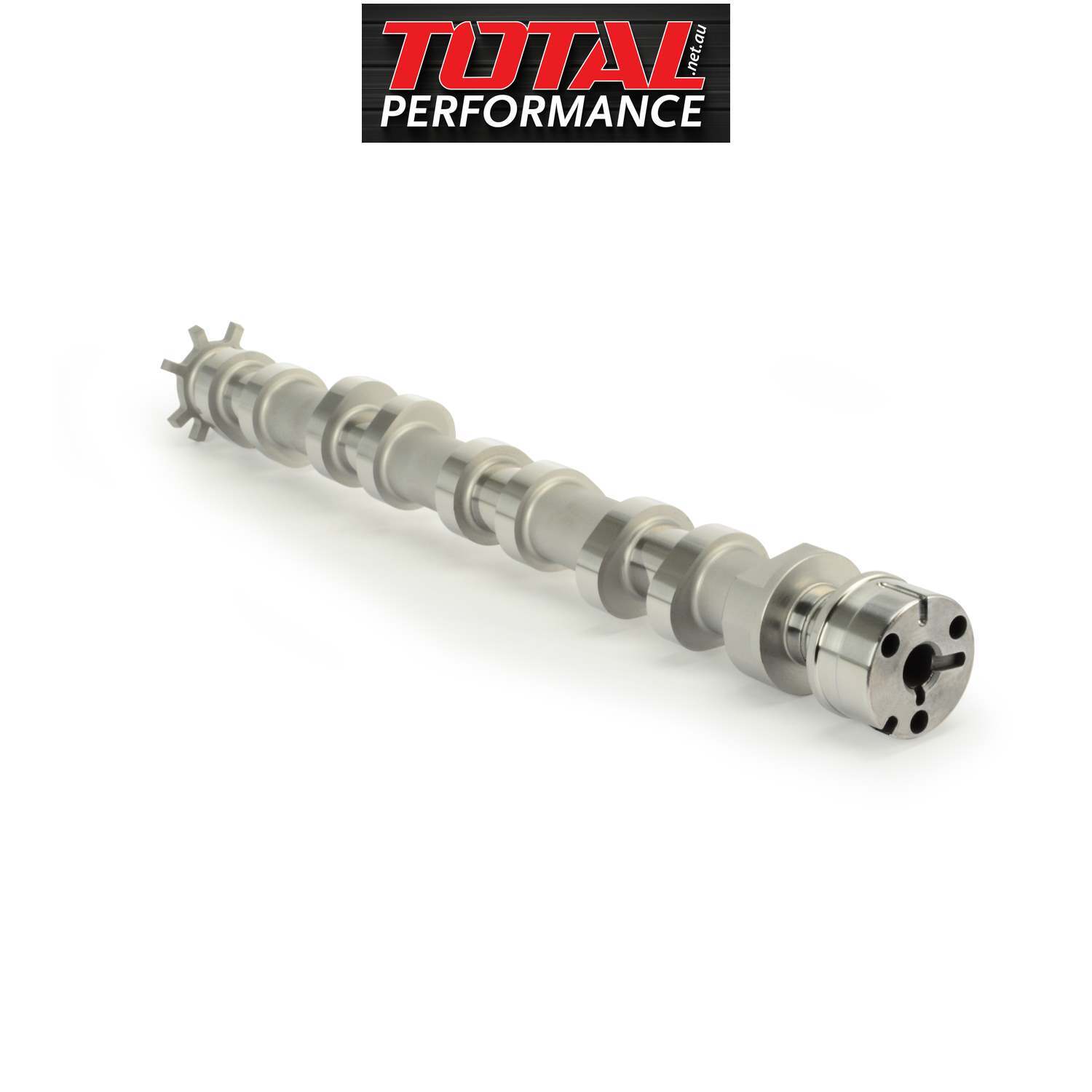

CR NSR 235/237 Hydraulic Roller Camshafts Cams for ('15+) Ford 5.0L Coyote - No Springs Required

Stock Valve Springs and No Modifications required.

$2,639.78

In Stock

Description

Comp Cams, Ford Coyote 5.0L Camshafts

No Springs upgrade Required.

The new CR cam series from COMP Cams® is designed to greatly improve upon stock 2015 Coyote camshafts and work without modifications to the engine’s cylinder heads or phasers.

COMP Cams® 2015 Ford Mustang Coyote CR Series Camshafts are the first new cam and core series for 2015 and later Coyote engines. New lobes improve upon the 2011-2014 XFI™ Camshaft Series and feature faster ramps, more lift and more area under the lift curve. The cams work with stock 2015 valve springs and the new Ford mid-lock phaser system without requiring limiters or any other phaser modifications. Three grinds are available for naturally aspirated engines with two designed specifically for blower applications. All are no-springs-required for easily installation in the vehicle. However, two spring kits (part nos. 26113 and 26125) are available for those that would like more spring with high boost or who really want to push RPM limits. COMP Cams® 2015 Ford Mustang Coyote CR Series Camshafts are the absolute best way to unlock the power potential of the brand new Coyote engine. They are also available for 2011-2014 Ford Coyote applications.

Specifications

SKU 243440
Barcode # 036584288893
Brand COMP CAMS
Intake Valve Lift 0.516
Camshaft Gear Attachment 3-Bolt
Basic Operating Rpm Range 2,000-7,600
Lobe Separation 131
Cam Type Hydraulic Roller Finger Follower
Lifter Type Hydraulic Roller Finger Follower
Valve Springs Required No
Grind Number F5.0F CYR271NAH 131
Intake Duration At .050 Inch Lift 235
Advertised Intake Duration 271
Exhaust Valve Lift 0.514
Camshaft Material Billet Steel
Lifters Included No
Camshaft Series CR NSR (No Sprngs Required)
Exhaust Duration At .050 Inch Lift 237
Advertised Exhaust Duration 278
