Race Endurance Solid Roller Dual Valve Springs, 255lbs @ 2.000" 1.560" OD, 544lbs rate 16 Springs
Race / Endurance Series
or 4 payments of $312.40 with
Info
*FREE SHIPPING ON ORDERS OVER $200!
Description

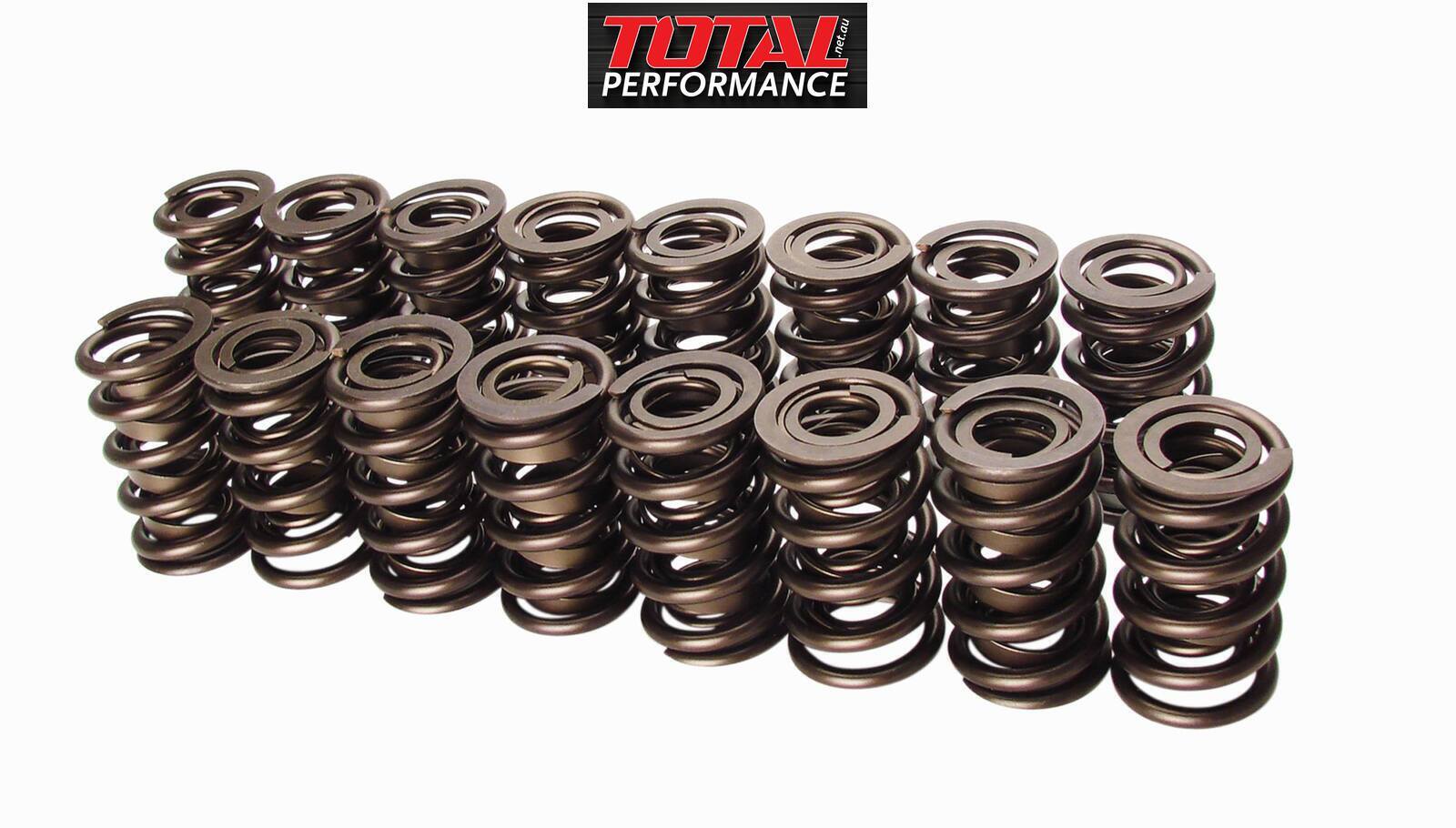

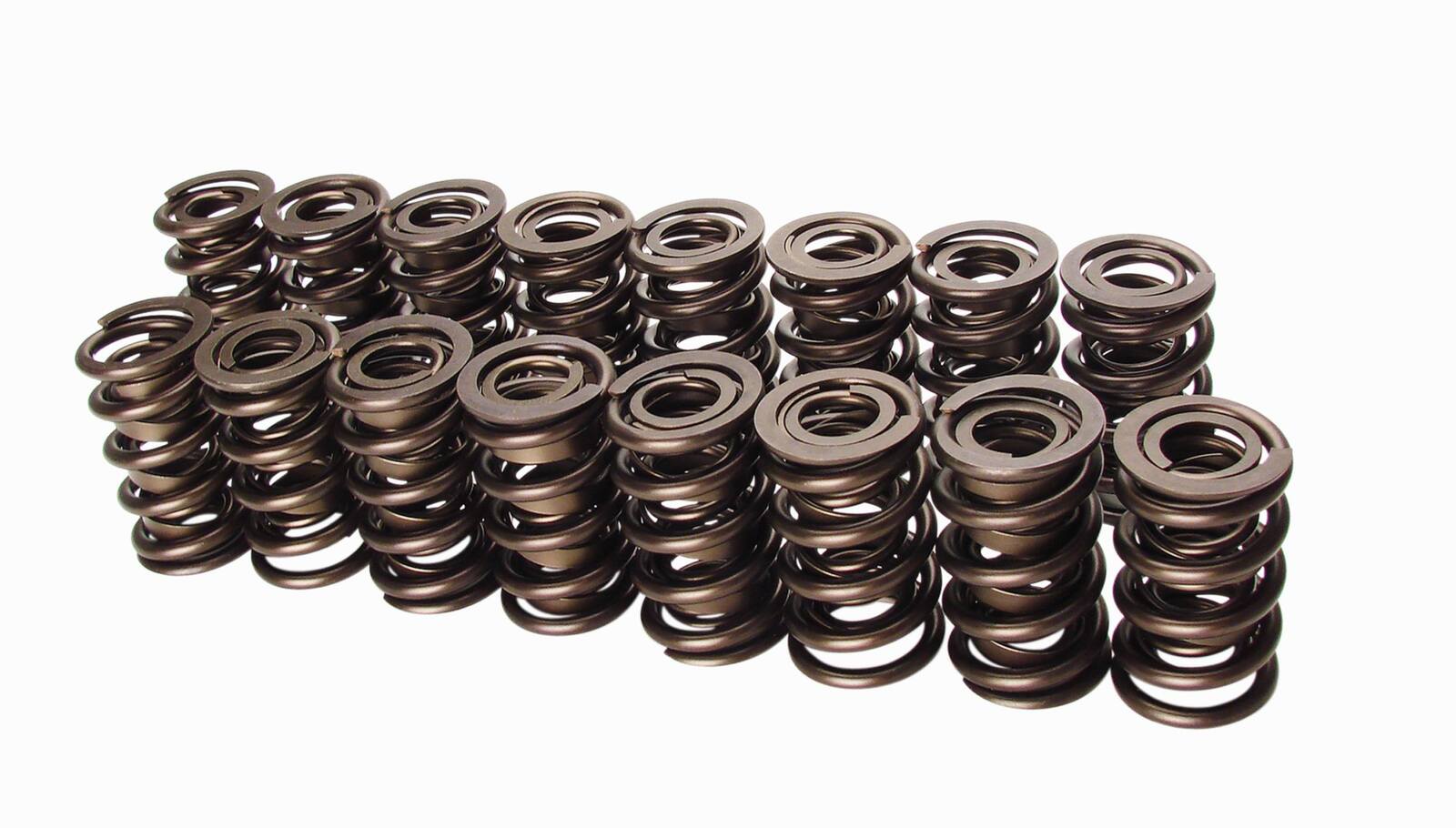

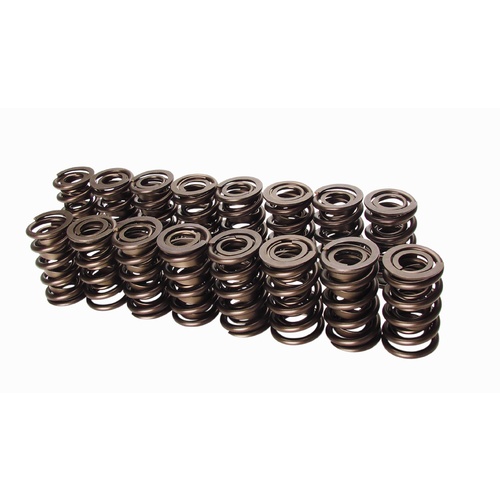

Comp Cams Part# 26115-16 Valve Springs - 1.550" OD Race & Endurance
These springs are a product of innovative design and superior craftsmanship using premium materials and precision manufacturing. Engineered with state-of-the-art techniques utilizing premium wire, they redefine reliability and consistency in the performance automotive aftermarket.
Valve Spring Application: Race / Endurance
Number of Springs Per Valve: Dual
Maximum Valve Lift (in.): 0.775 in. @ 2.000" installed & 0.060" safety to coil bind.
Outside Diameter of Outer Spring (in.): 1.549 in.
Inside Diameter of Outer Spring (in.): 1.125 in.
Inside Diameter of Inner Spring (in.): 0.719 in.
Coil Bind Height (in.): 1.192 in.
Damper Spring Included: No
Spring Rate (lbs./in.): 544 lbs./in.
Installed Height (in.): 2.000 in.
Seat Pressure at 2.000" Installed Height (lbs.): 255 lbs.
Quantity: Sold as a set of 16.
Specifications
| SKU | 26115-16 |
| Barcode # | 036584044093 |
| Brand | COMP CAMS |
| Seat Height | 2.05 |
| Damper | Yes |
| Seat Pressure | 225 |
| Outer Spring Outside Diameter | 1.56 |
| Outer Spring Inside Diameter | 1.114 |
| Number Of Springs | 2 |
| Inner Spring Inside Diameter | 0.709 |
| Valve Spring Series | Race Endurance |
| Coil Bind Height | 1.165 |
| Spring Rate | 544 |
