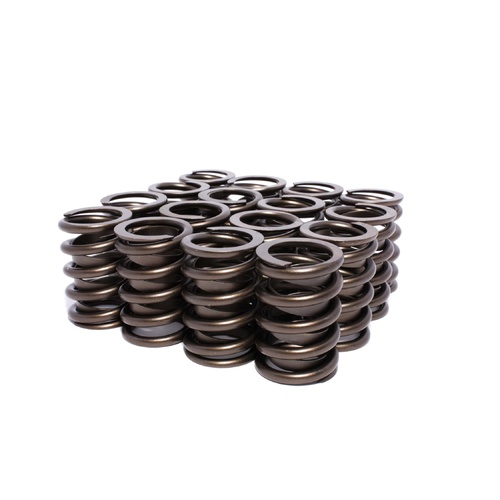

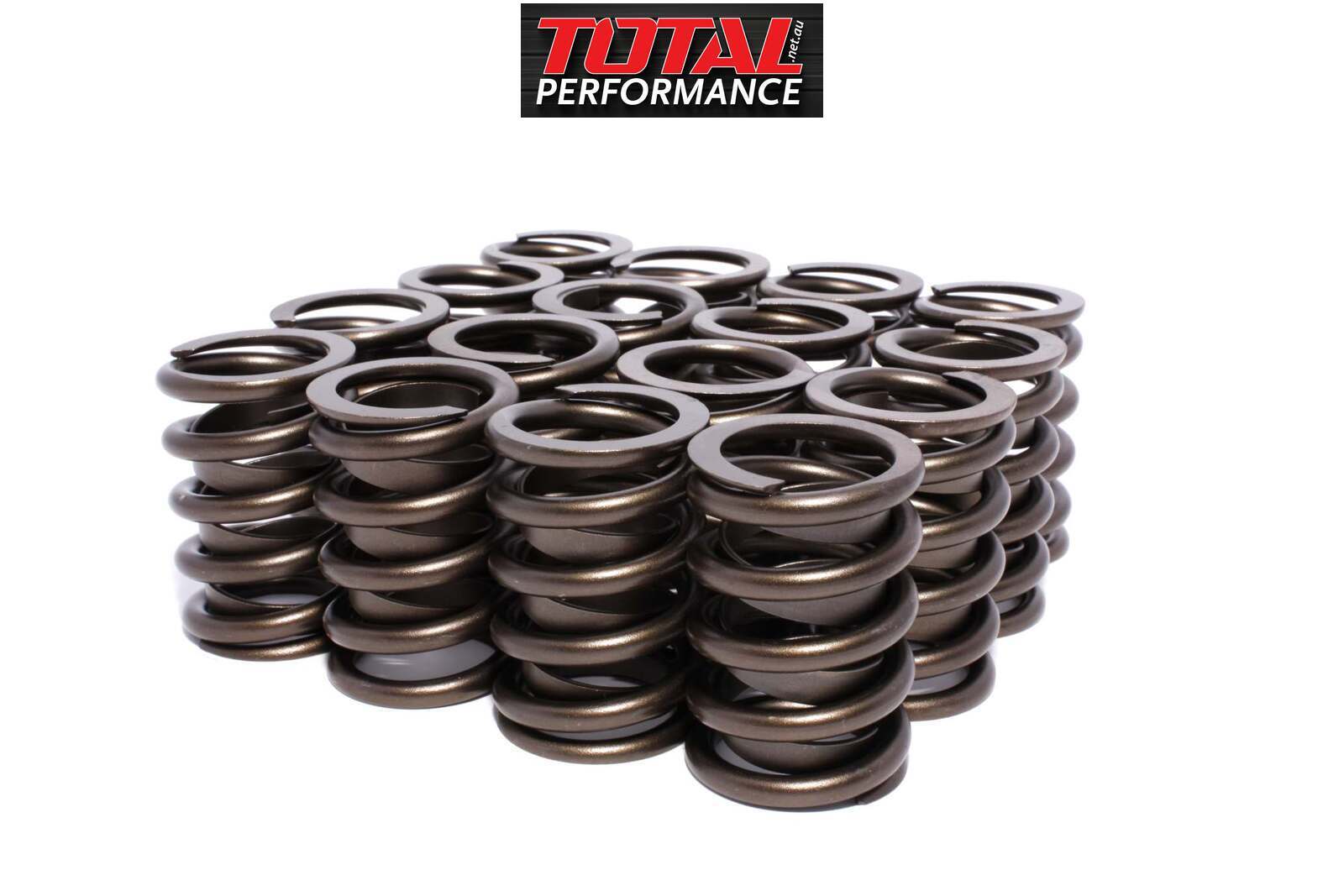

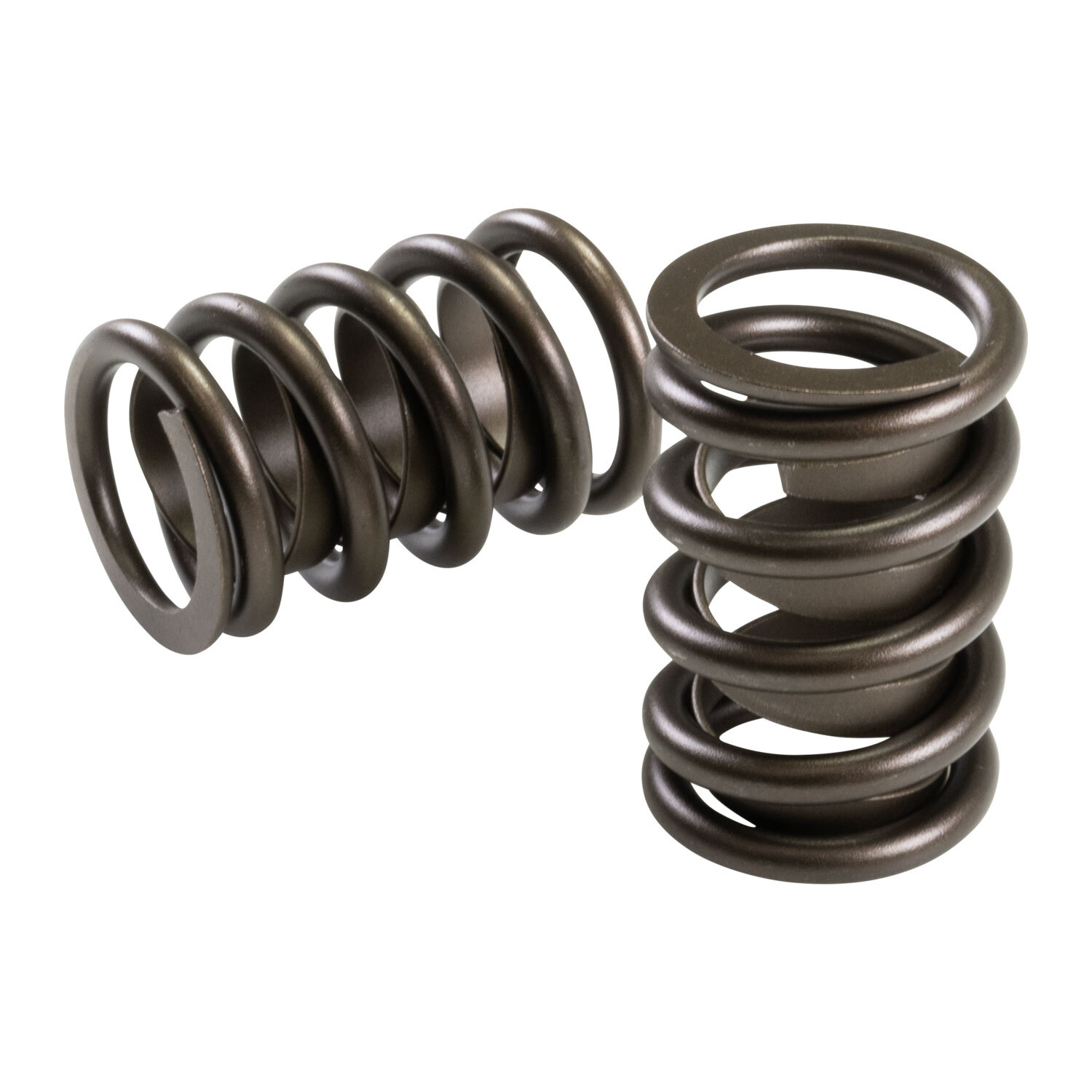

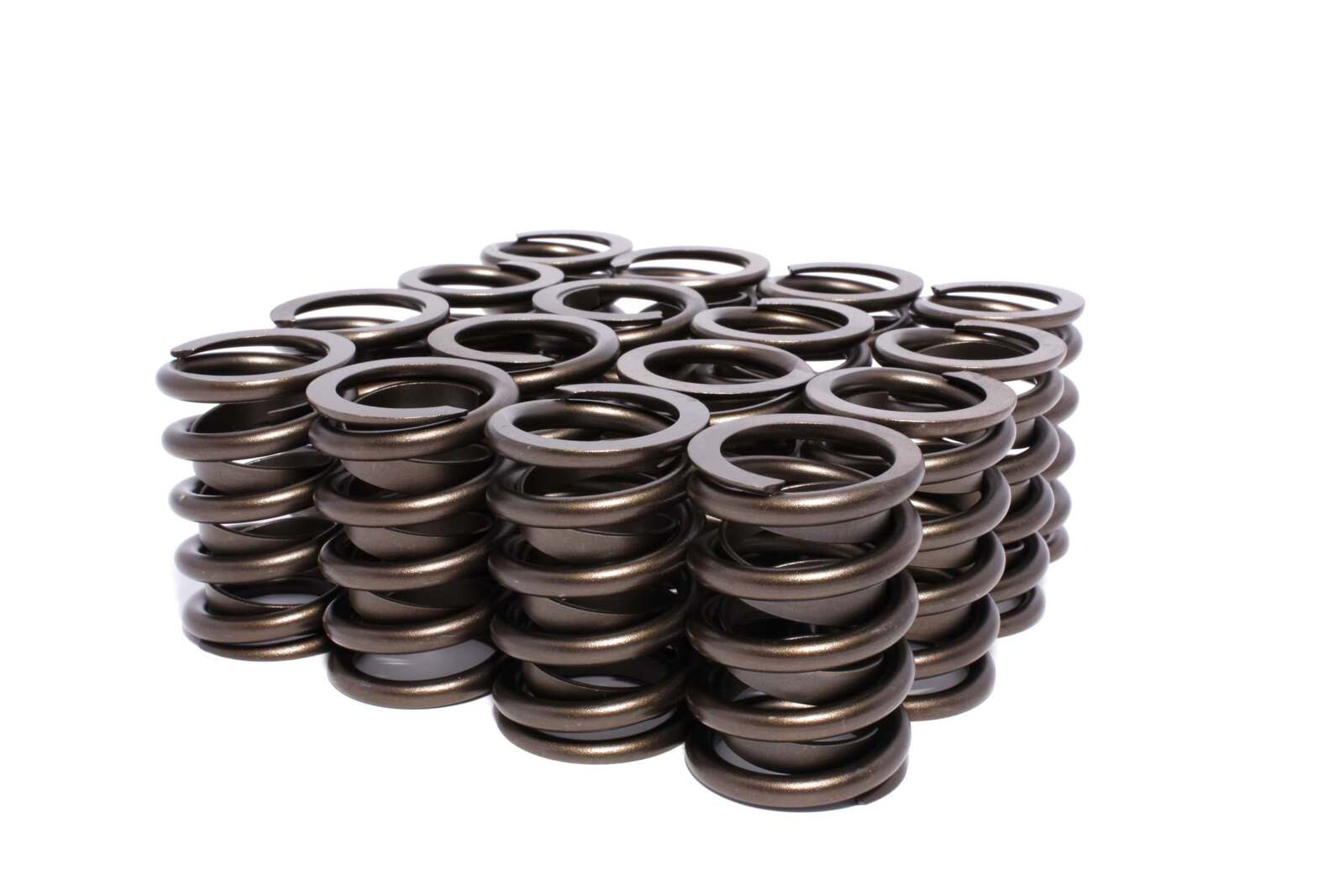

Engine Valve Springs SINGLE SPRING 1.750" Installed / 350lbs/in (Cast OEM Windsor 351C Cleveland Cylinder Head - Hydraulic Flat Tappet Spring)

Engine Valve Springs

Valve Springs SINGLE SPRING

Suits: Cast OEM Windsor Cylinder Heads with a Hydraulic Flat Tappet camshaft

COMP Cams' new 26942 single valve springs are a product of innovative design and superior craftsmanship. Engineered with state-of-the-art techniques and premium wire, they redefine reliability and consistency in the performance automotive aftermarket. The 26942 stands out as the optimal choice for a wide range of applications, accommodating hydraulic flat tappest and street hydraulic roller cams up to .600” lift, with an installed height of 1.750”. They seamlessly fit numerous spring pockets with a 1.440" outer diameter, offering versatility across many applications. Boasting an open load of over 330 pounds, these valve springs are geared toward early hydraulic roller street or flat tappet applications, but a 350 lbs/in rate means it's also suitable for many solid flat tappet applications. Whether you're seeking improved dynamics, enhanced valve control, or unmatched reliability, we have the valve springs to deliver the perfect solution. Elevate your engine's dependability and confidence on the road with COMP Cams valve springs.

Max Lift .600

Installed Height 1.750

Coil Bind Height 1.100

O.D. of Outer      1.440

I.D. of Inner        .940

I.D. of Outer       1.030

Spring Rate         350

Damper Yes

Load at Installed Height 128

Load at Open Height       321

Valve Spring Finish           Raw

Open Height       1.200 in
