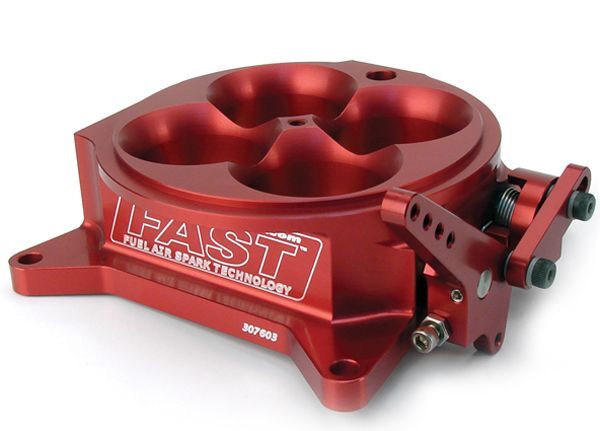

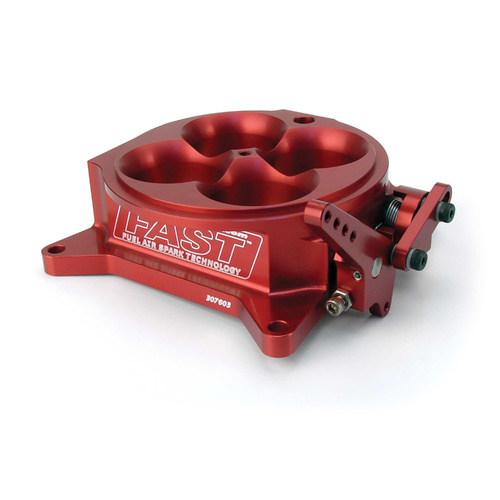

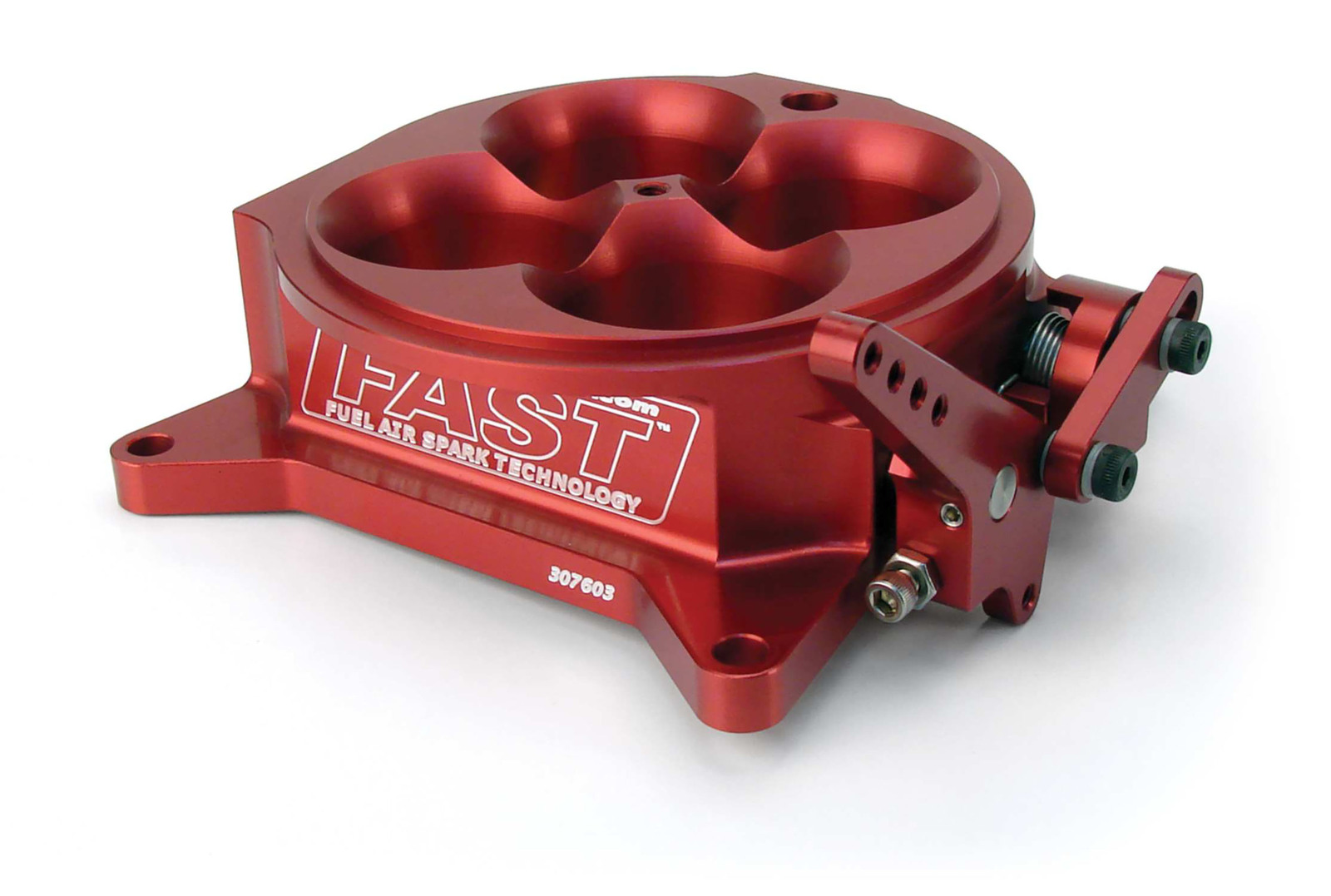

307603 Billet Throttle Body 4150 Square Bore Flange. Air Only Multiport Injection EFI MPI T/Bodies
1,375 cfm + Includes TPS IAC
Description
FAST™ 4 Barrel Throttle Bodies incorporate tapered and radiused throttle bores and precisely machined progressive linkage for smooth throttle operation and unparalleled airflow. More airflow equals more horsepower.
-
Inward opening throttle blades eliminate part throttle directional influence by the blades that can cause poor air distribution
-
Shorter height for better airflow, easier packaging for tight hood clearance & reduced weight
-
Throttle blades attached to stainless steel shafts w/ aircraft quality hardware and peened to assure positive retention
-
Bodies are machined from 6061-T6 billet aluminum for consistent quality, excellent appearance and light weight
-
Brass throttle blades control vibration & reduce thermal expansion
Throttle Body Style: Multi-port injection, MPI
Venturi Quantity: 4
Throttle Body Actuation: Cable
Airflow Rate (cfm): 1,375 cfm
TPS Sensor Included: Yes
IAC Motor Included: Yes
Gaskets Included: Yes
Hardware Included: No
Injectors Included: No
Throttle Body Material: Billet aluminum
Throttle Body Finish: Red anodized
Quantity: Sold individually.
Notes: Designed to fit 4150 style intake manifolds.
Specifications
SKU | 307603 |
Barcode # | 021174160901 |
Brand | FAST |
Title | Red 4150 Flange Air Only Throttle Body for Multiport Injection EFI Systems |
Mounting Flange Style | 4150 |
