SKU: 32-235-4

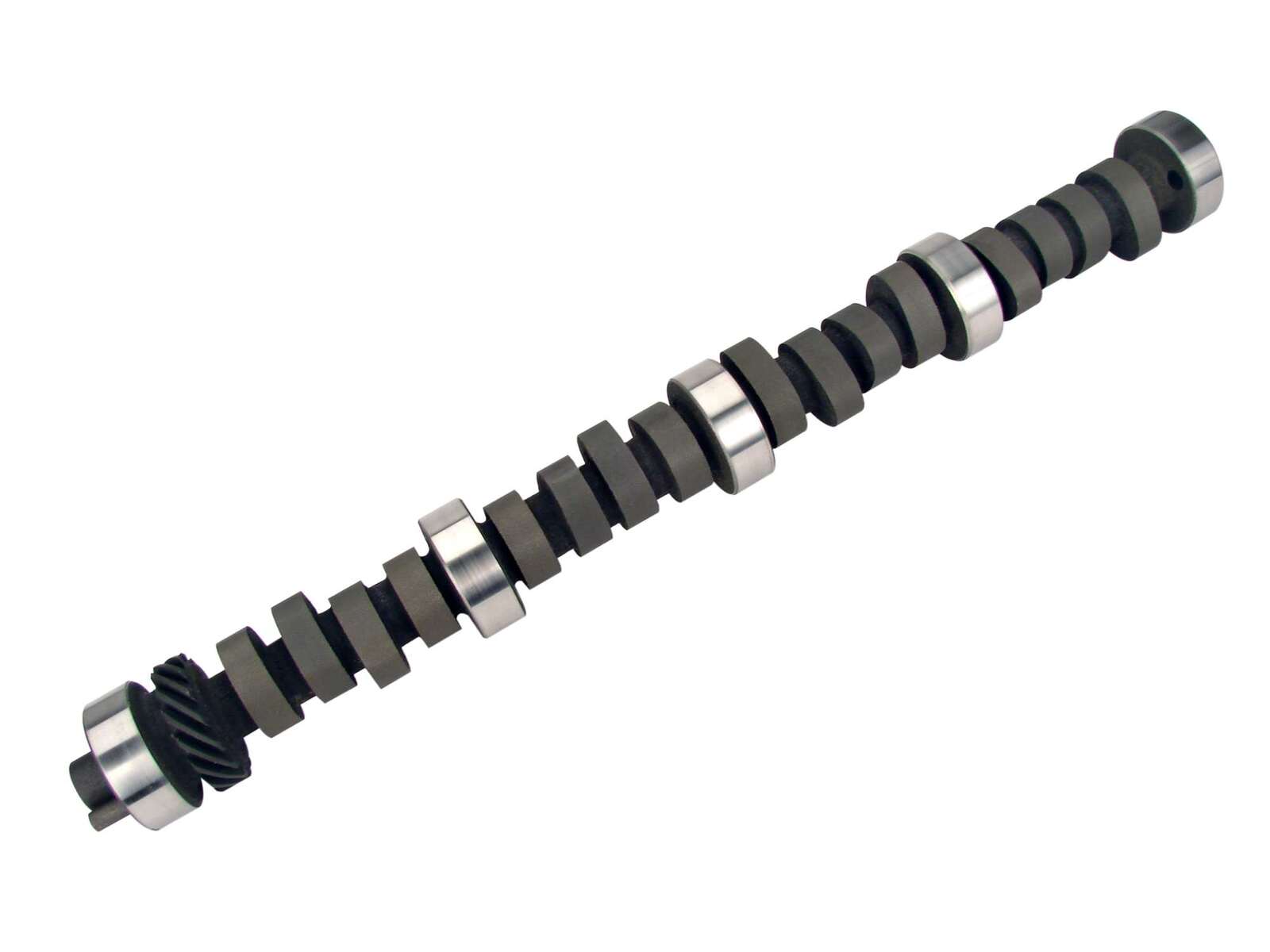

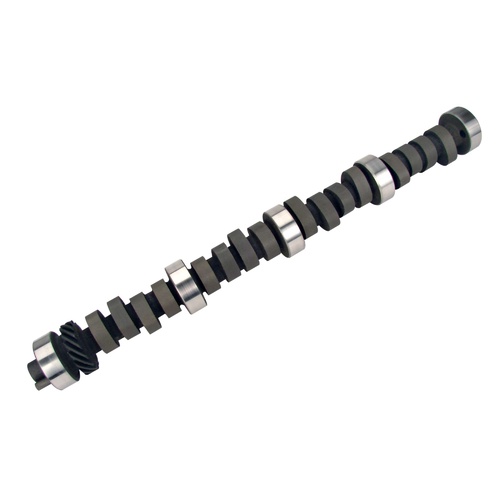

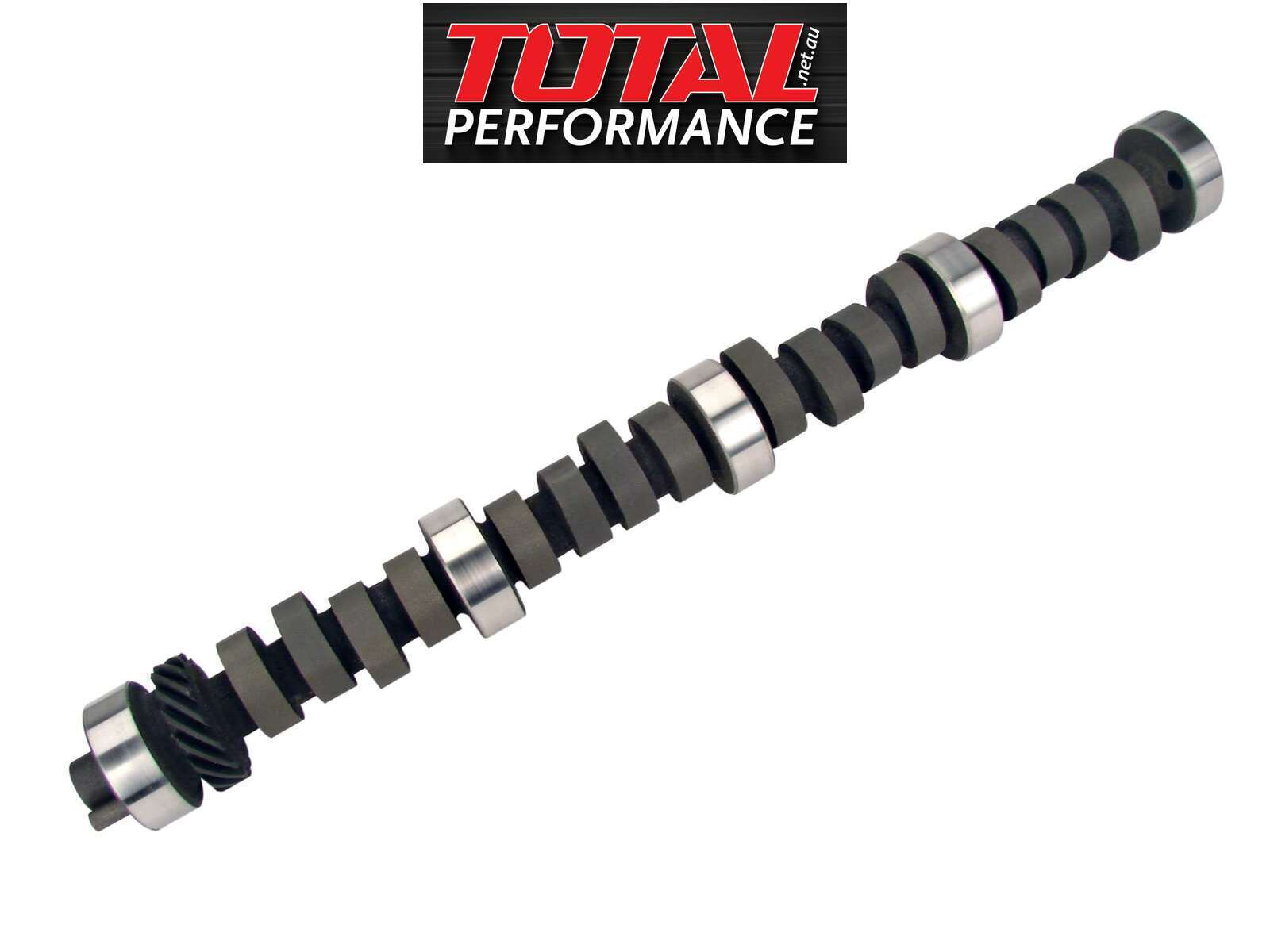

32-235-4 Magnum/Drag Race 253/253 Hydraulic Flat Cam for Ford 351C, 351M-400M


or 4 payments of $82.61 with Info

Sold Out


Bracket race/limited street use, 3500+ stall, 11:1 compression, radical idle. Good torque in heavy car. 3500+ stall or 4 speed, 10:1 compression.


SKU 32-235-4
Barcode # 036584611400
Intake Valve Lift 0.585
Camshaft Gear Attachment 1-Bolt
Basic Operating Rpm Range 3,000-7000
Lobe Separation 110
Cam Type Hydraulic Flat Tappet
Lifter Type Hydraulic Flat Tappet
Valve Springs Required Yes
Grind Number 305H
Intake Duration At .050 Inch Lift 253
Advertised Intake Duration 305
Exhaust Valve Lift 0.585
Camshaft Material Cast Iron
Lifters Included No
Camshaft Series Magnum
Exhaust Duration At .050 Inch Lift 253
Advertised Exhaust Duration 305
