SKU: 3042

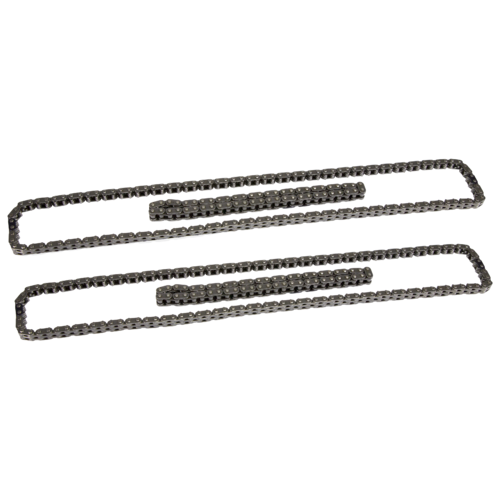

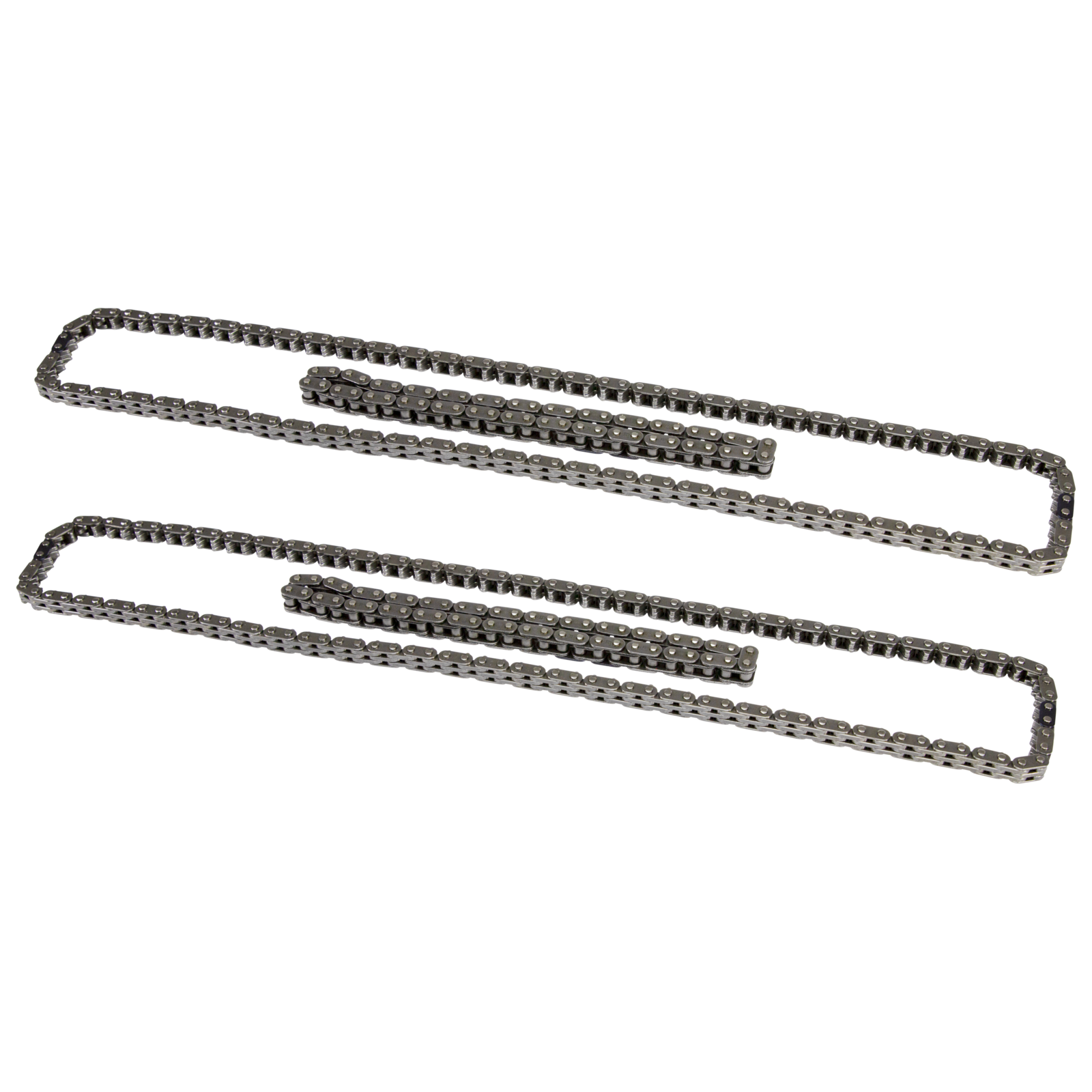

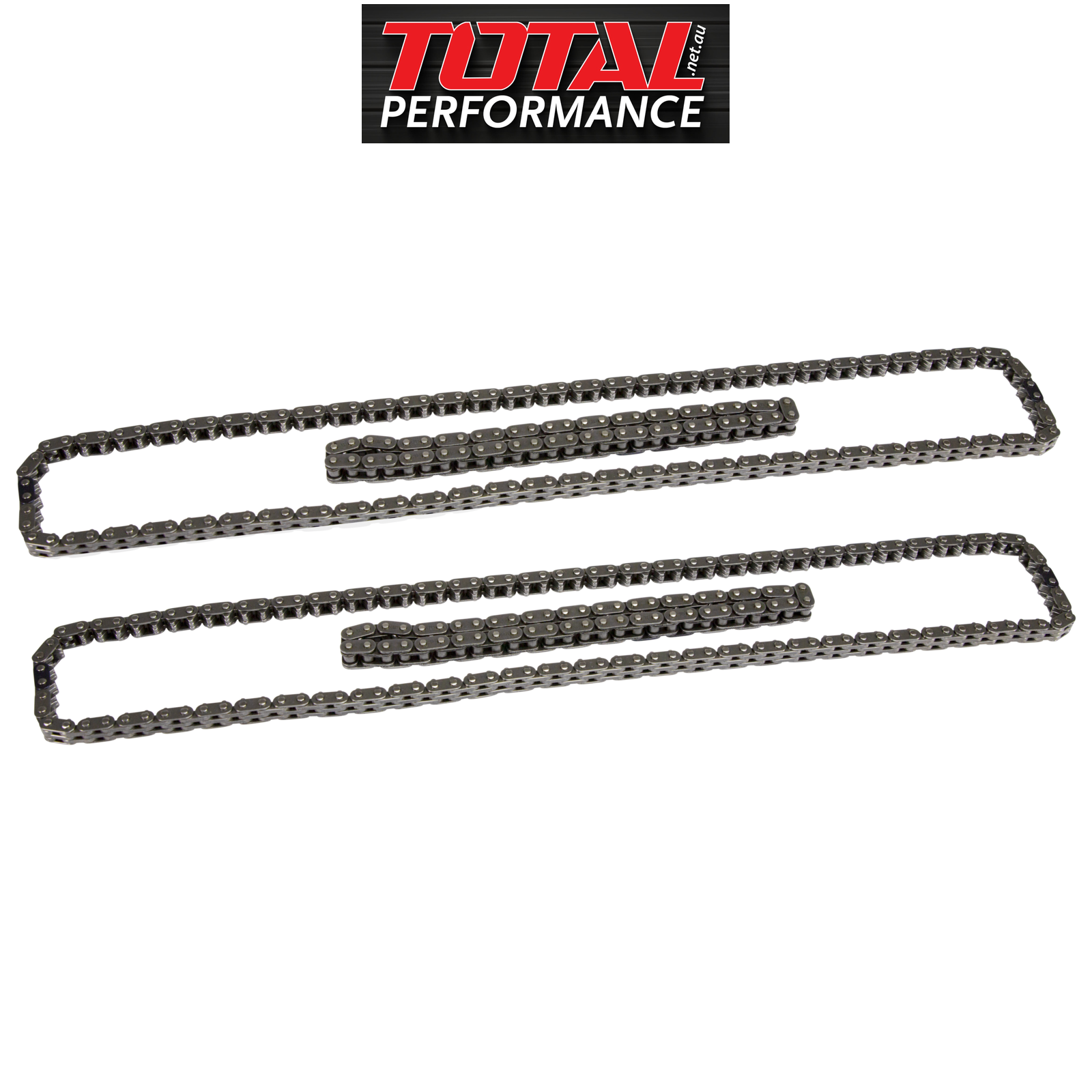

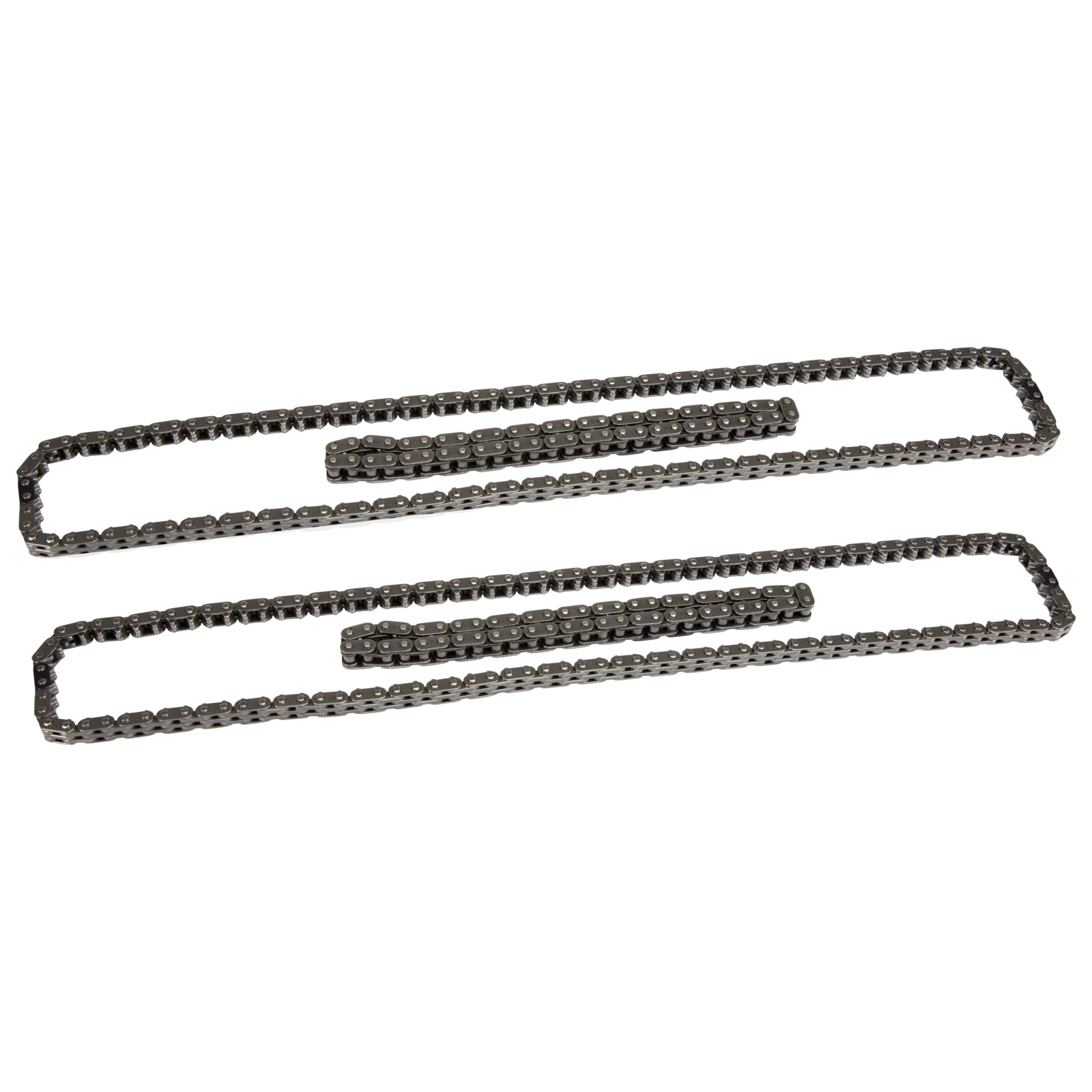

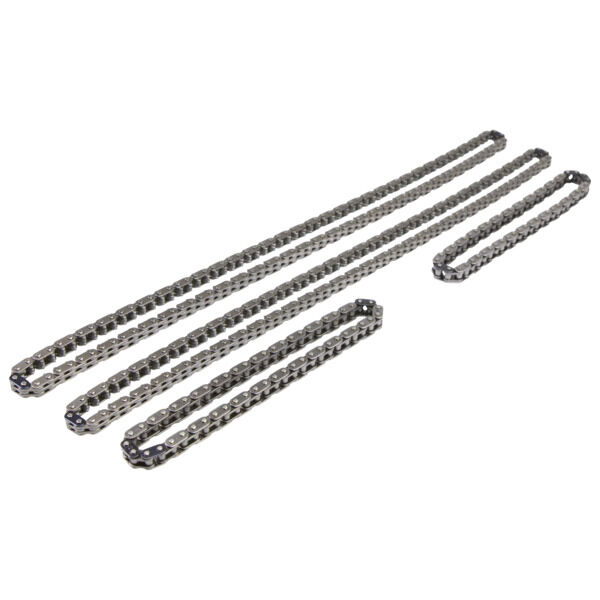

Hi-Tech Severe Duty Timing Chain Set for 2015-2018 Ford 5.0 Coyote


or 4 payments of $84.62 with Info

Sold Out


A must when upgrading camshafts, our Hi-Tech Timing Chain Sets for 2015-20185.0 Coyote feature 15% thicker plates than factory secondary chains, preventing the common secondary chain failure.


SKU 3042
Barcode # 036584405450
Crankshaft Sprocket Material No sprocket included
Timing Chain Type Inverted tooth / roller
Keyway Adjustable N/A
Number Of Crankshaft Keyways N/A
Chain Width 0.347 primary, 0.430 secondary
Includes Secondary Timing Chains Yes
Includes Crank Position Trigger Wheel No
Includes Secondary Timing Chain Tensioners No
Thrust Bearing Included? No
Clears Factory Timing Cover? Yes
Maximum Retard At Camshaft N/A
Camshaft Sprocket Material No sprocket included
Maximum Retard N/A
Includes Tensioner Arms No
Includes Timing Chain Tensioners No
Includes Crankshaft Sprocket No
Pole Count N/A
Reluctor Count No reluctor included
Replacement Performance Chain Part Number N/A
Maximum Advance At Camshaft N/A
Timing Set Series Hi-Tech
Maximum Advance N/A
Includes Timing Chain Guides No
Oe Number M-6004-A504
Includes Dowel Pin And Fasteners No
Cam Bolt Number N/A
