LS1 LS2 LS3 2004+ 2ND Design / Late Camshaft Bearings GM LS Series 5.7L 6.0L 6.2L Cam

CH25 Dura Bond LS1 LS2 LS3 Camshaft Bearings - 2004 Onwards

SUITS:   LS1/LS2 GEN III, 2004+ 2nd Design  with #1 and #5 with Housing Bore 2.2346"/2.3480"

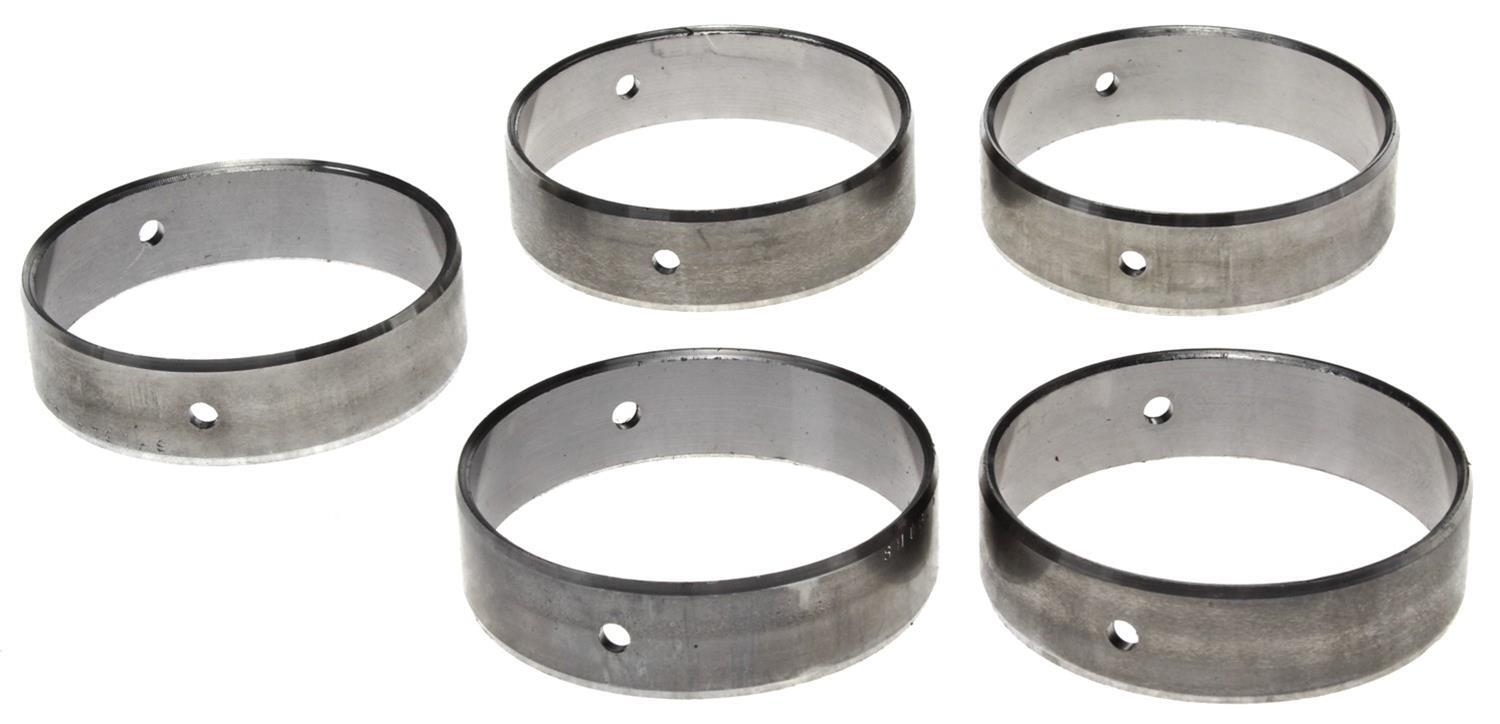

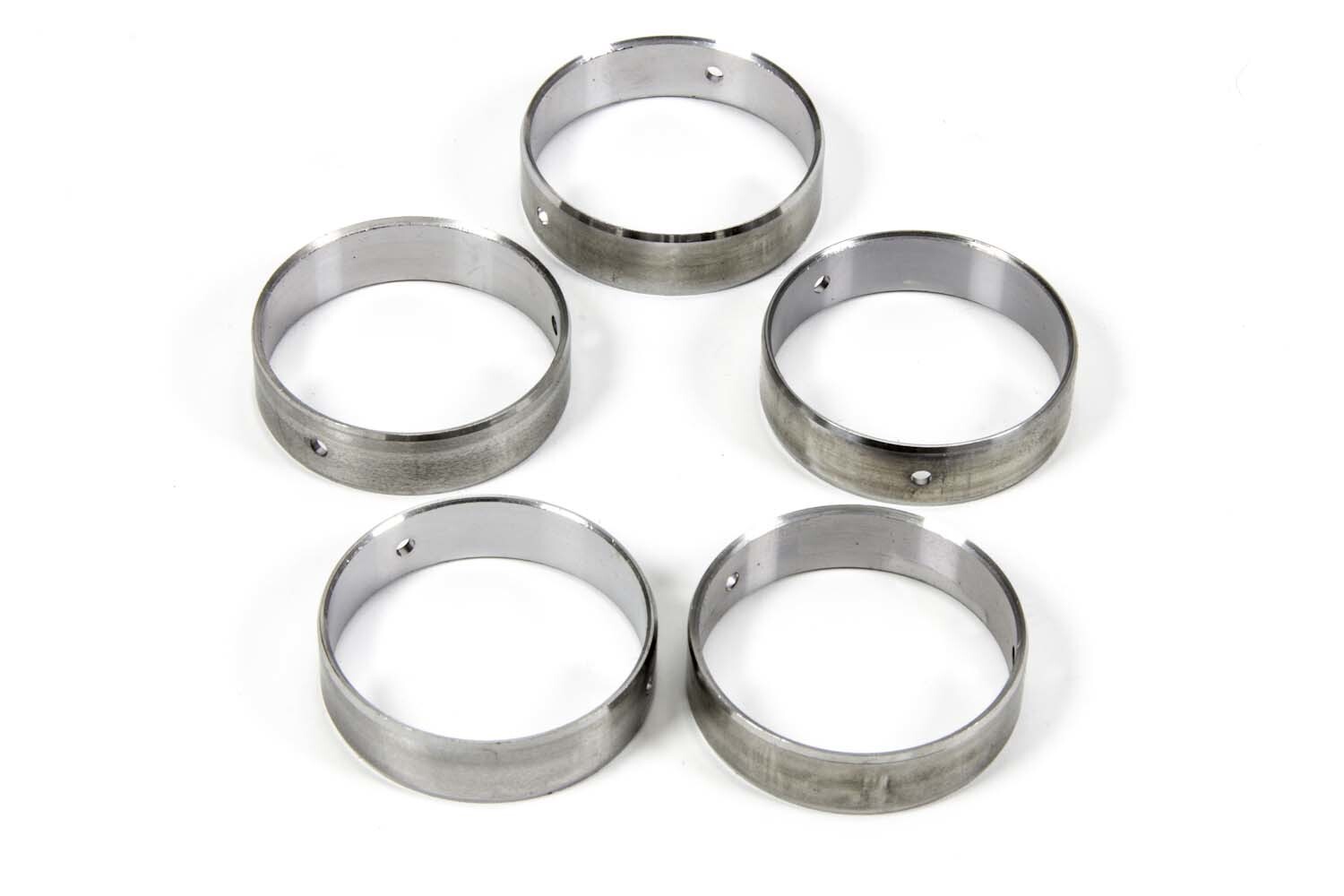

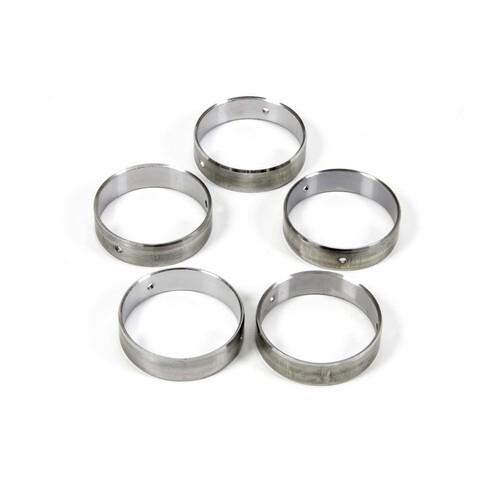

Dura Bond - CH-25  LS1 LS2 LS3 GEN III, 2004+ 2nd Design Camshaft Bearings

Dura-Bond Standard LS Cam Bearings Economical Dura-Bond standard cam bearings feature round babbit construction for low friction, outstanding conformability, and added embeddability.

Dura-Bond camshaft bearings are manufactured to meet or exceed OEM parts when it comes to strength and durability. They will help to give your motor extra life, and their quality construction and superior materials will help to protect your vital engine parts from the harmful effects of friction. With thousands of applications, you're sure to find the bearings you need for your motor

Part Number:   Durabond CH25 / CH-25

Engine Family: LS1 LS2 LS3 5.7L, 6.0L 6.2L 2004 onwards – 2nd design

Bearing Usage:  Direct replacement

Grooved Bearing:  No

Cam Bearing Oversize (in.):  Stock

Cam Bearing Oversize (mm):  Stock

Camshaft Journal Diameter:  with #1 and #5 with Housing Bore 2.2346"/2.3480"

Camshft Journal Width:  0.775"

Bearing Usage:  Direct replacement

Bearing Material:  Bi-Metal, Lead based micro babbitt

Quantity:  Sold as a full set of 5

NOTE:    LS Engines have a few different size/options of Camshaft Bearings. Please read below to make sure you are selecting the correct part numbered Bearing set.:

MAHLE/CLEVITE range of Cam bearings:

M77SH1814S       LS1/LS2 GEN III, 1997-2004 1st Design with #1 and #5 with Housing Bore 2.23260"/2.3280"

M77SH2125S + CH25       LS1/LS2 GEN III, 1997-2004 2nd Design with #1 and #5 with Housing Bore 2.23460"/2.3480"

M77SH2157S         LS6 6.2L/376 CID, 2010-14

M77SH2142S         LSX Block
