SKU: 8690-16

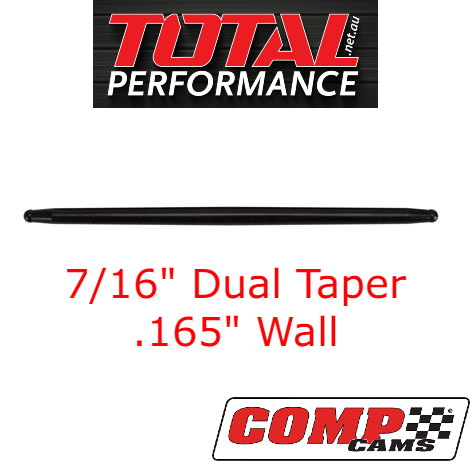

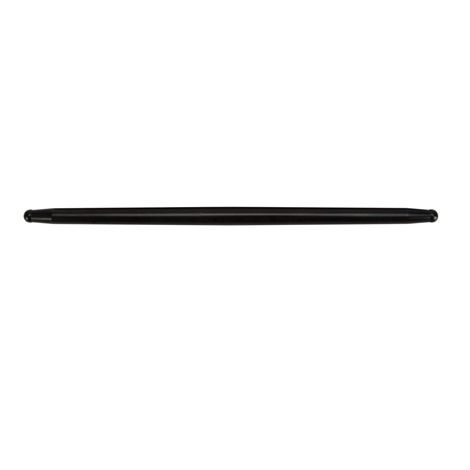

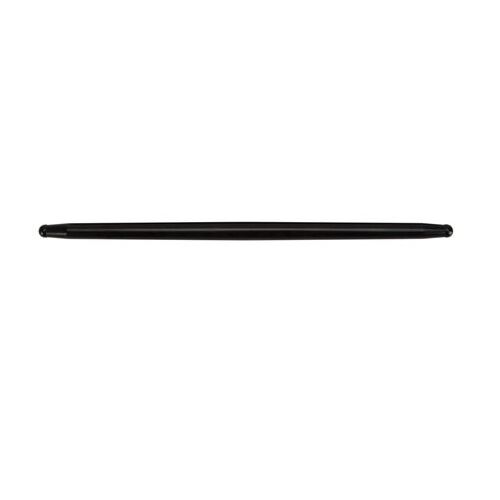

Dual Taper 9.650" Long, .165" Wall, 7/16" Diameter Pushrods Set

$446.16

or 4 payments of $111.54 with Info

In Stock

Description

Full Set of (16) 9.650" Pushrods

For applications that need more clearance due to offset lifters and higher-flowing intake ports, these .165" wall, dual taper 7/16" diameter 9.650" long pushrods offer the clearance of a 3/8" yet with the rigidity of a 7/16" pushrod.

Dual Taper 7/16", .165" Wall Pushrods from COMP Cams® are designed with the middle of the pushrod being larger in diameter than the two ends. The extra clearance at the top and the bottom offers the benefits of a large, 7/16" pushrod combined with clearance of a 3/8" option for a higher-flowing intake port. The pushrods are also tapered to clear the top of most offset roller lifters. Both 5/16" ball ends have a 210˚ radius to provide additional clearance to the rocker arm adjuster at peak lift. The thicker .165"wall is stiffer and stronger than previous .125" wall offerings, thereby providing more accurate valve motion and durability. The pushrods are made in the U.S.A. from one-piece, heat-treated 4130 chromemoly steel tubing, which makes them stronger than most pushrods on the market today.

  • Full Set of (16) 9.650" Pushrods

  • Middle of pushrod is larger in diameter than both ends

  • Offers the benefits of a large, 7/16" pushrod combined w/ the clearance of a 3/8"

  • Both 5/16" ball ends have a 210˚ radius to provide additional rocker clearance at peak lift

  • .165" wall is stiffer & stronger than previous .125" offerings; More accurate valve motion & durability

  • Made in the USA from one-piece, heat-treated 4130 chromemoly steel tubing, making them stronger than most pushrods on the market today

Specifications

SKU 8690-16
Barcode # 036584272557
Brand COMP CAMS
wall thickness 0.165
Guide Plate Compatible Yes
Length 9.65
Rocker End Style 5/16 Oil Through One-Piece Construction Ball
Pushrod Series Dual Taper .165" Wall
Ball Radius 210
lifter end style 5/16 Oil Through One-Piece Construction Ball
Diameter 7/16
