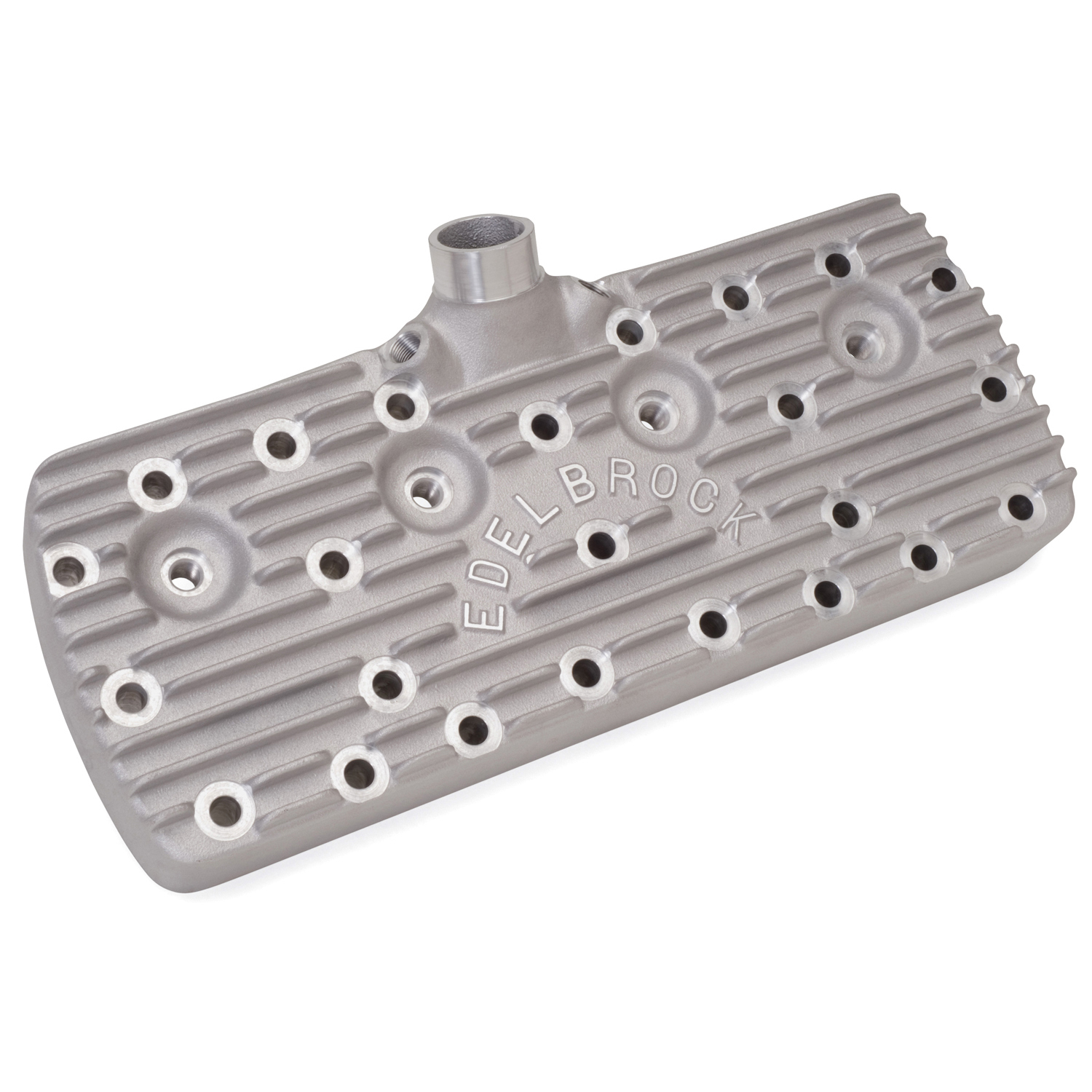

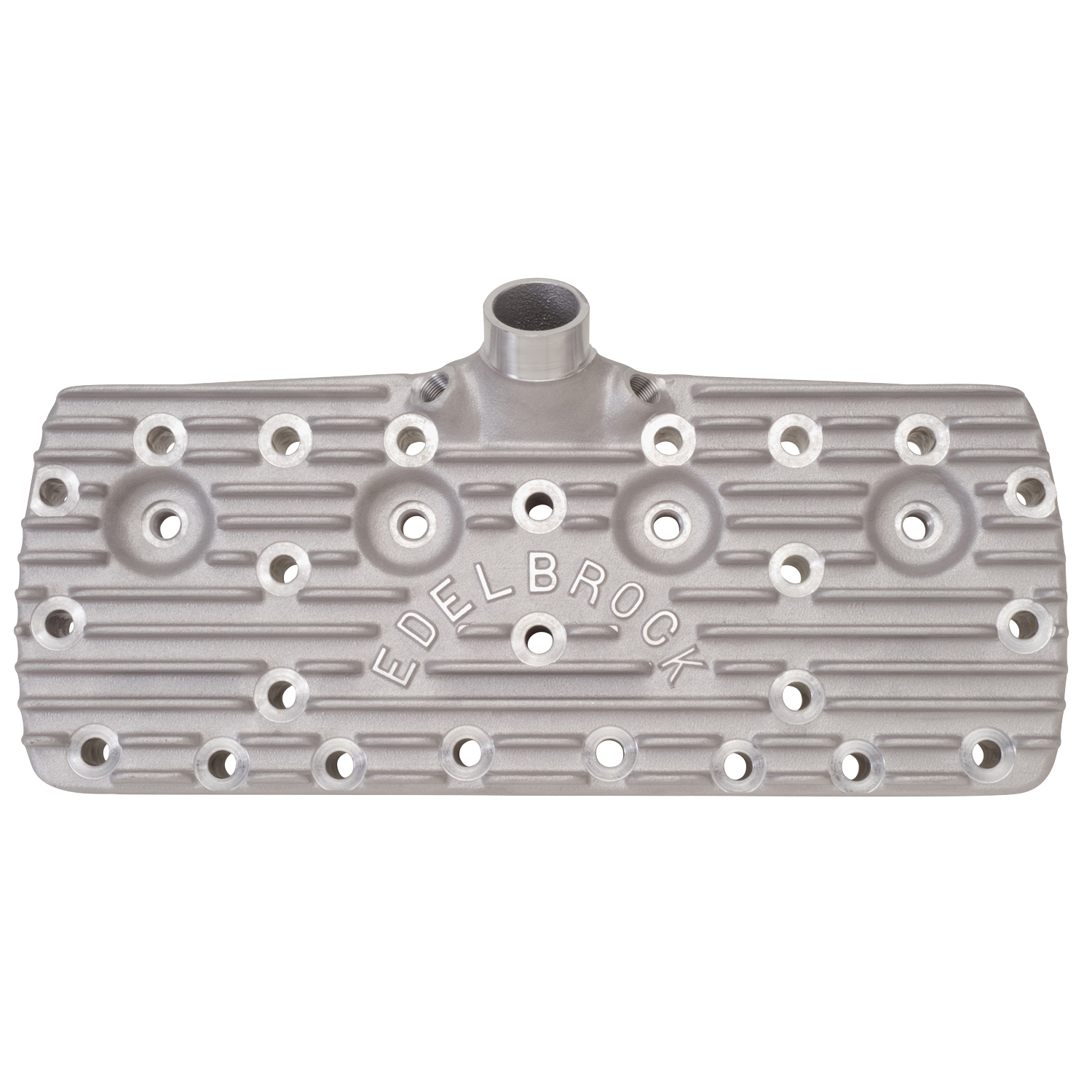

Flathead Ford Cylinder Heads, fits 1938-48 Ford V8, Early Model, Curved Edelbrock Raised block Logo. (PAIR Flat Heads)

Edelbrock ED1126 Cylinder Heads fits Ford Flathead V8 feature a block logo design for Fords and Mercury.

The Edelbrock #1126 heads are rugged, ribbed internally and externally, with a large water capacity and excellent breathing characteristics.

The Edelbrock #1126 Ford Flatheads feature a block logo design for Fords and Mercurys, and are cast at the Edelbrock Foundry in the USA of T-6 tempered A356 aluminum. The Edelbrock #1126 heads are rugged, ribbed internally and externally, with a large water capacity and excellent breathing characteristics. The 65cc heads support 8.0:1 compression ratio on blocks with a 3/16" base relief (stock bore and stroke), compression ratio increase is approximately 3/10 of a percent with each 1/8" stroke.

Combustion Chamber Volume (cc):  65

Cylinder Head Style: Bare

Cylinder Head Material:  Cast aluminum

Spark Plug Style:  Straight

Quantity:  Sold as a pair.

Notes:  For use with 24 stud blocks.
