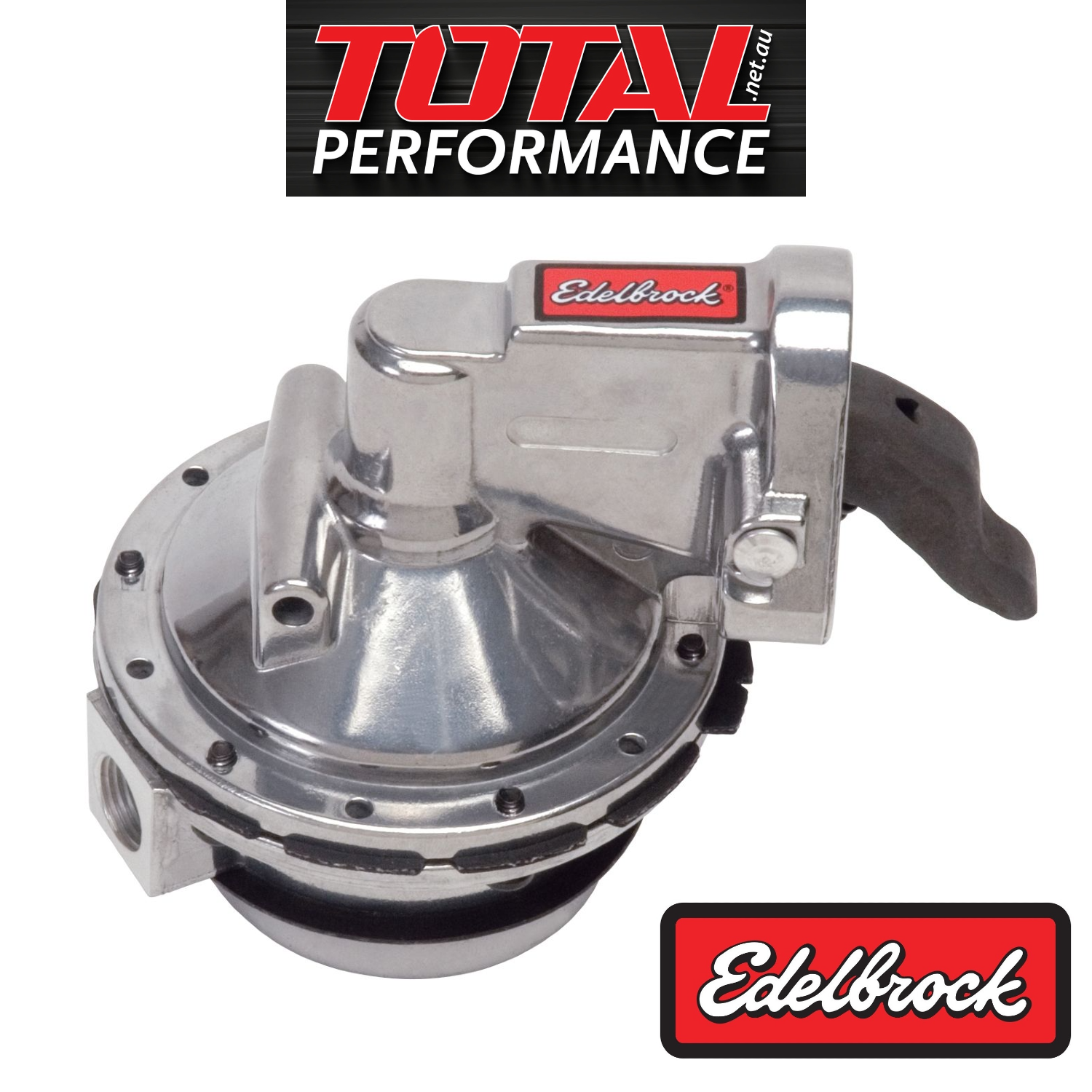

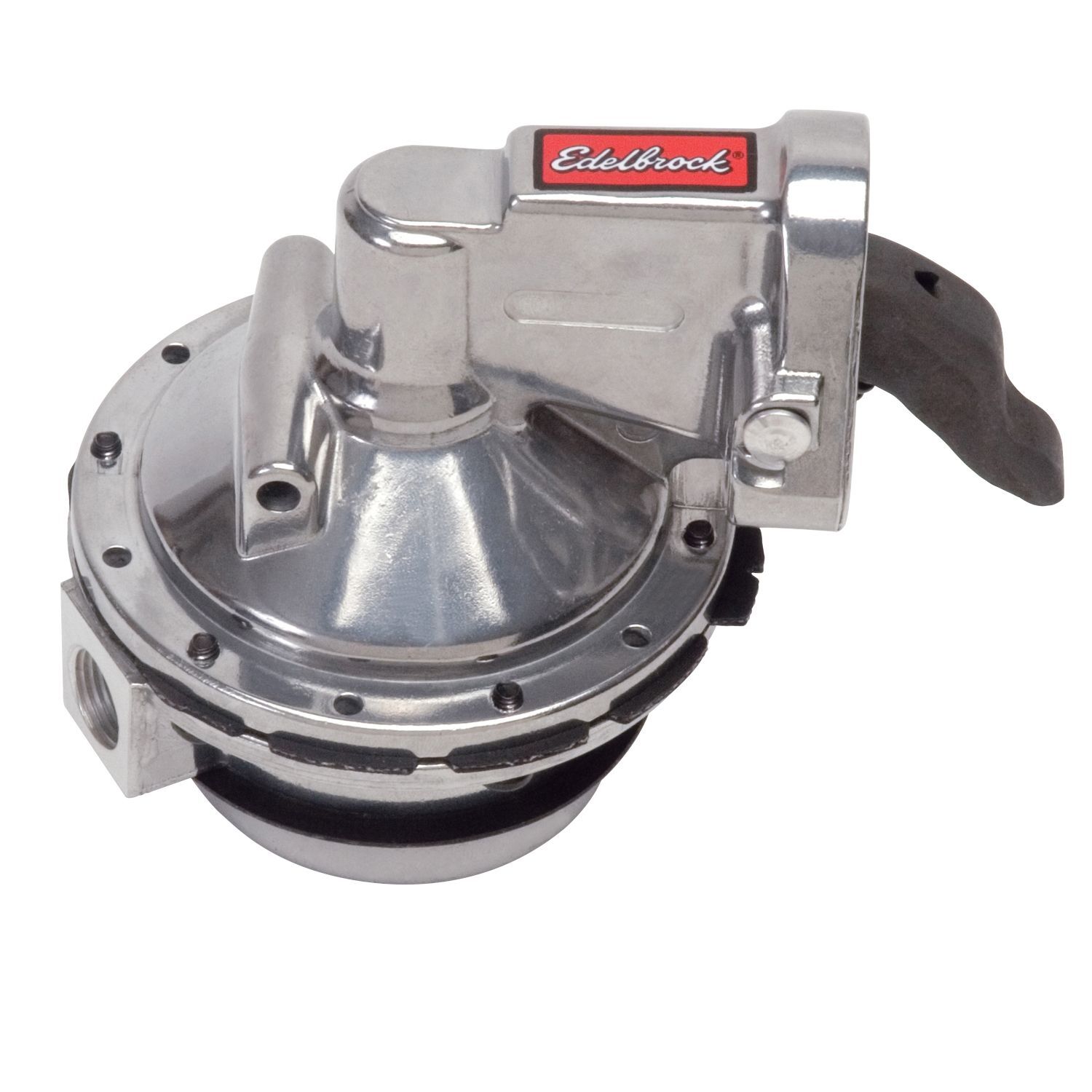

SBC Chevy 350 Mechanical Fuel Pump 110 GPH Polished Small Block Chevy Performer Series

Edelbrock part #1721 Performer RPM Series fuel pump is for Small-Block and "W Series" Chevrolet designed for use with all Edelbrock carburetors used in Performer or Performer RPM applications. These high-performance's street Fuel Pumps feature a high quality three stage polished finish. The unique valve design improves flow quantity and quality, and will support engines up to 600 hp. High-volume, 3/8" NPT inlet and outlet surpasses the capacity of conventional models. Produces 6 psi and does not require a regulator. Use with gasoline only. Clockable lower housing can be rotated in 60 Deg Increments for best inlet/outlet alignment

Housing Material              Aluminum

Gasket Or Seal Included                Yes

Pump Type         Mechanical

Outlet Thread Diameter                0.675 in

Connection Type              Female

Installation Notes

Do not over tighten Inlet/Outlet fittings, overtightening fittings may damage the fuel pump housing.; Proper installation is the responsibility of the installer. Improper installation will void your warranty and may result in poor performance and engine or vehicle damage.

Fuel Type            Gas

Inlet Fitting Thread Size 3/8" NPT

Inlet Quantity    1

Inlet Thread Diameter   0.675 in

Maximum Pressure        6.0

Outlet Fitting Thread Size             3/8" NPT

Outlet Quantity    1

Outlet Type        Female
