Chrysler Small Block, 318, 340, 360, Single Plane Inlet Intake Manifold, Victor, High Rise

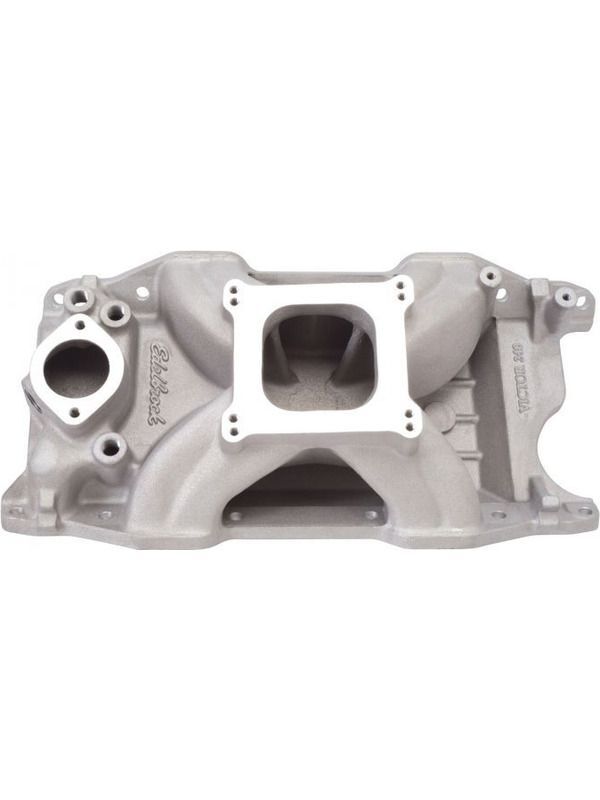

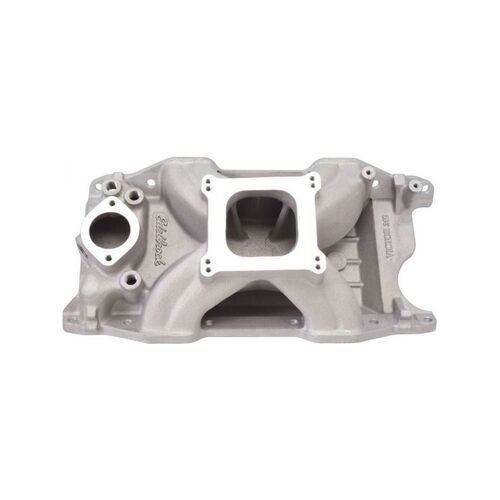

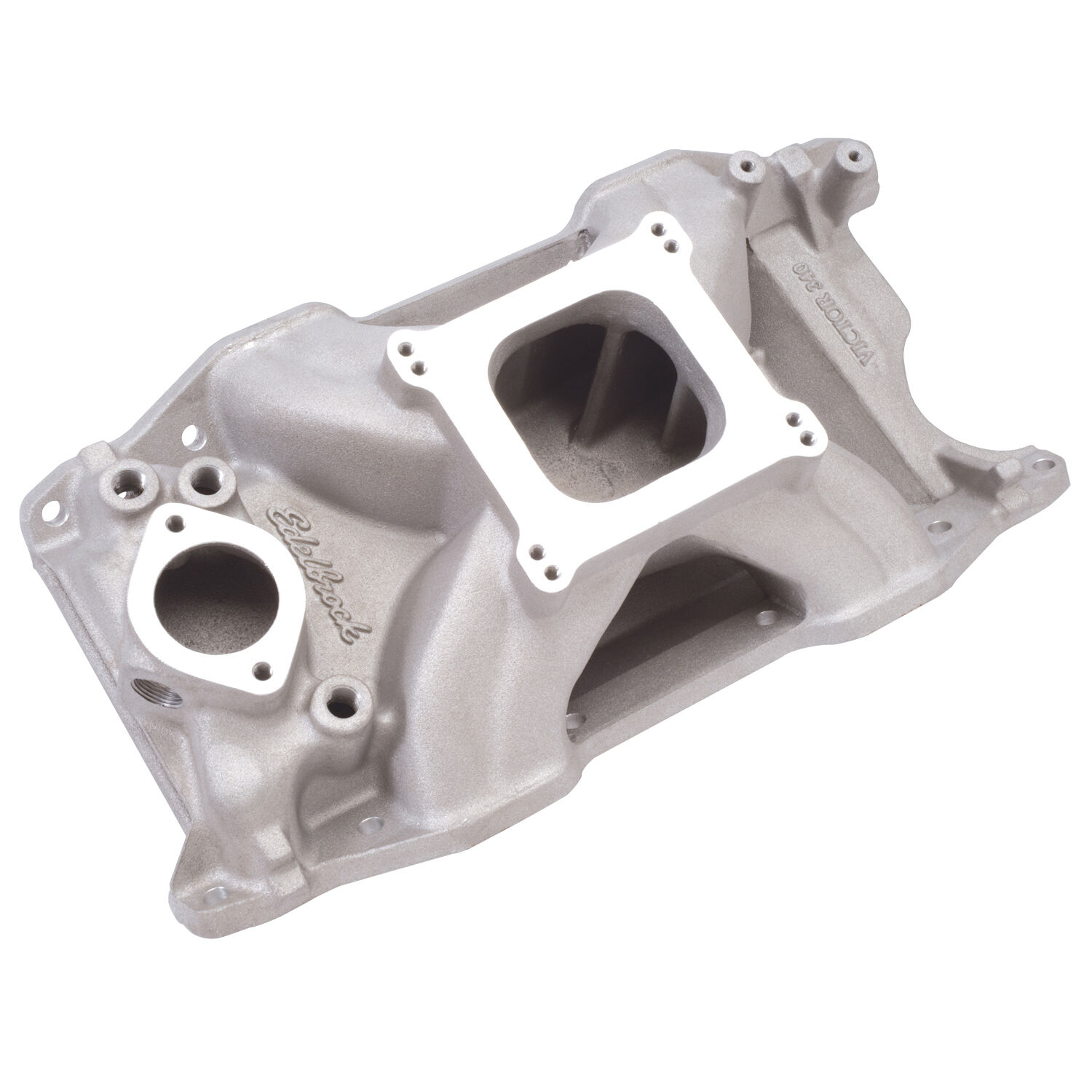

Edelbrock Victor Intake Manifold fits 318, 340, 360 Chrysler Small Block LA engines.

This Edelbrock part #2915 Victor intake manifold is designed for high performance 340 360 c.i.d. Chrysler Small Blocks. These manifolds suit the standard rectangular-port heads & Edelbrock heads. This single plane intake manifold suits applications of Tough street, oval track and drag race engines operating from 3500-8000 rpm.

Edelbrock # 2915 Specs:

• Vehicle Fitment Model:  Chrysler Small Block (early) LA engines, 340, 360
• Application Type:  High Performance, Tough Street machine, Drag Racing, Oval Track
• RPM Range:  3500-8000 RPM
• Series:  Victor
• Material:  Aluminium
• Gasket Or Seal Included:  No
• Warranty:  12 Months
• Finish/Colour:  Satin
• Rear Maximum Height:  4.920 in
• Single Or Dual Plane Type:  Single

NOTES: Edelbrock 2915 Application Notes:

• This intake manifold can be used on 318 c.i.d. engines with 340-360 heads.
• Will not fit 1992 and later Magnum Cylinder heads. (different bolt angles)
• Accepts 1975 and earlier waterneck only.

Edelbrock 2915 Installation Notes:

• Recommended intake gasket: Edelbrock #7276, Fel-Pro #1213;
• Manifold height.: A-4.15", B-5.70";
• Carb recommendations: Use appropriate racing carburetor;
• Use RTV sealant to properly seal end seals, such as Edelbrock High Temp Silicone sealant #1076, DO NOT USE END SEALS GASKETS.; Hardened washers Must be used with intake bolts to ensure proper torque and prevent galling of the aluminum.
