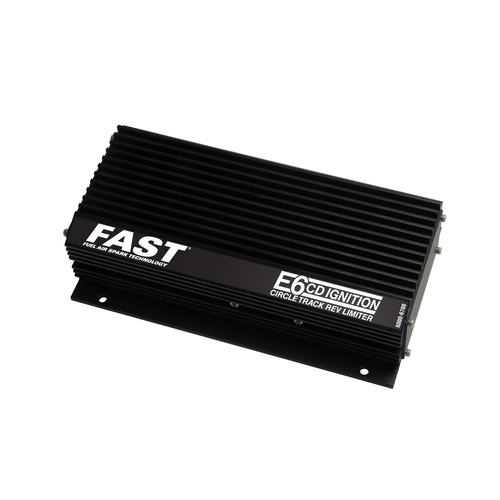

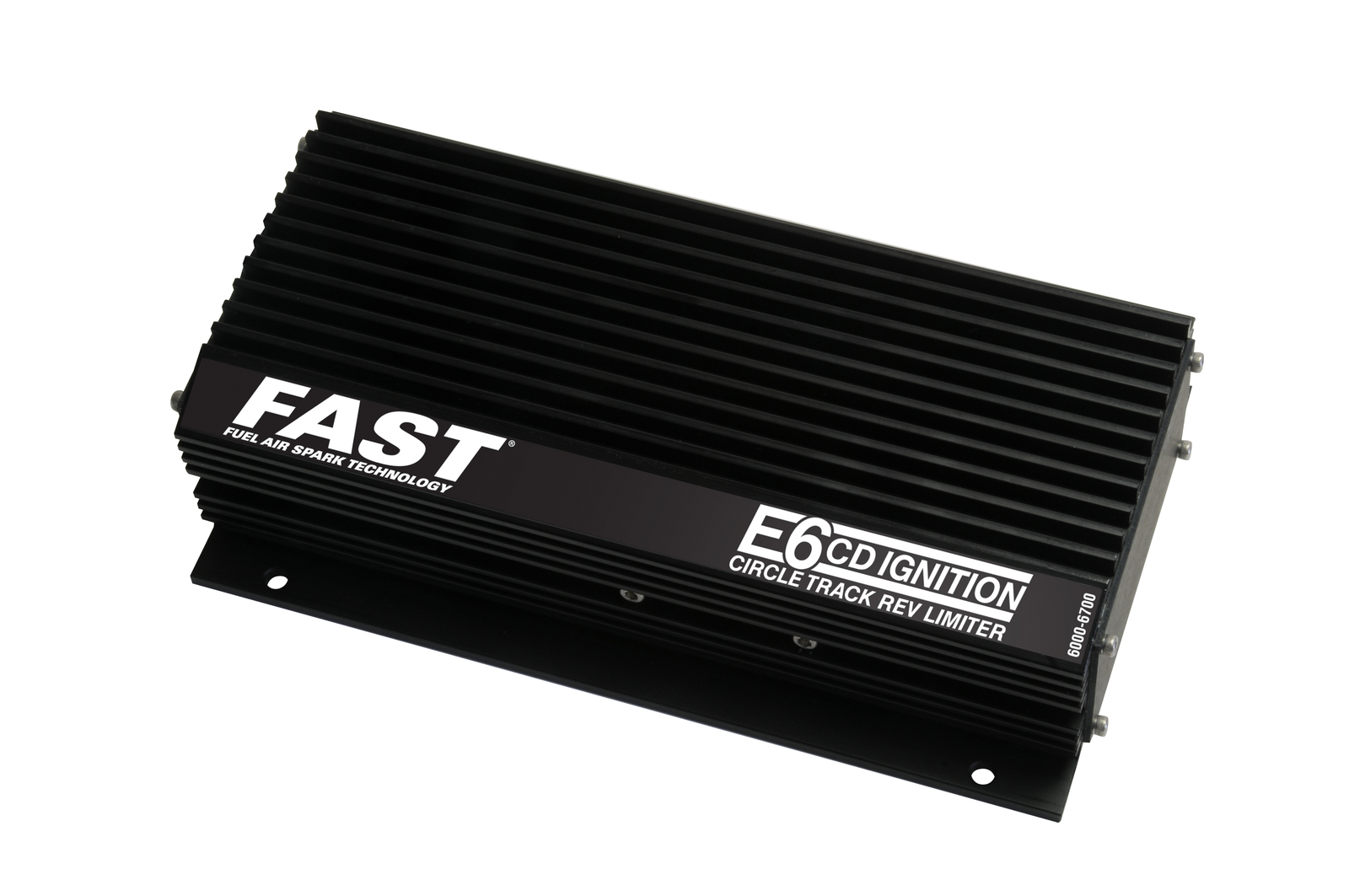

6000-6700 E6 Ignition Box with Rev Limiter HI-6RC Digital Capacitive Discharge MSD Start Timing Retard, Universal,

FAST HI-6RC CD Ignitions  (Formally the ultra reliable Crane Fireball Ignion system)

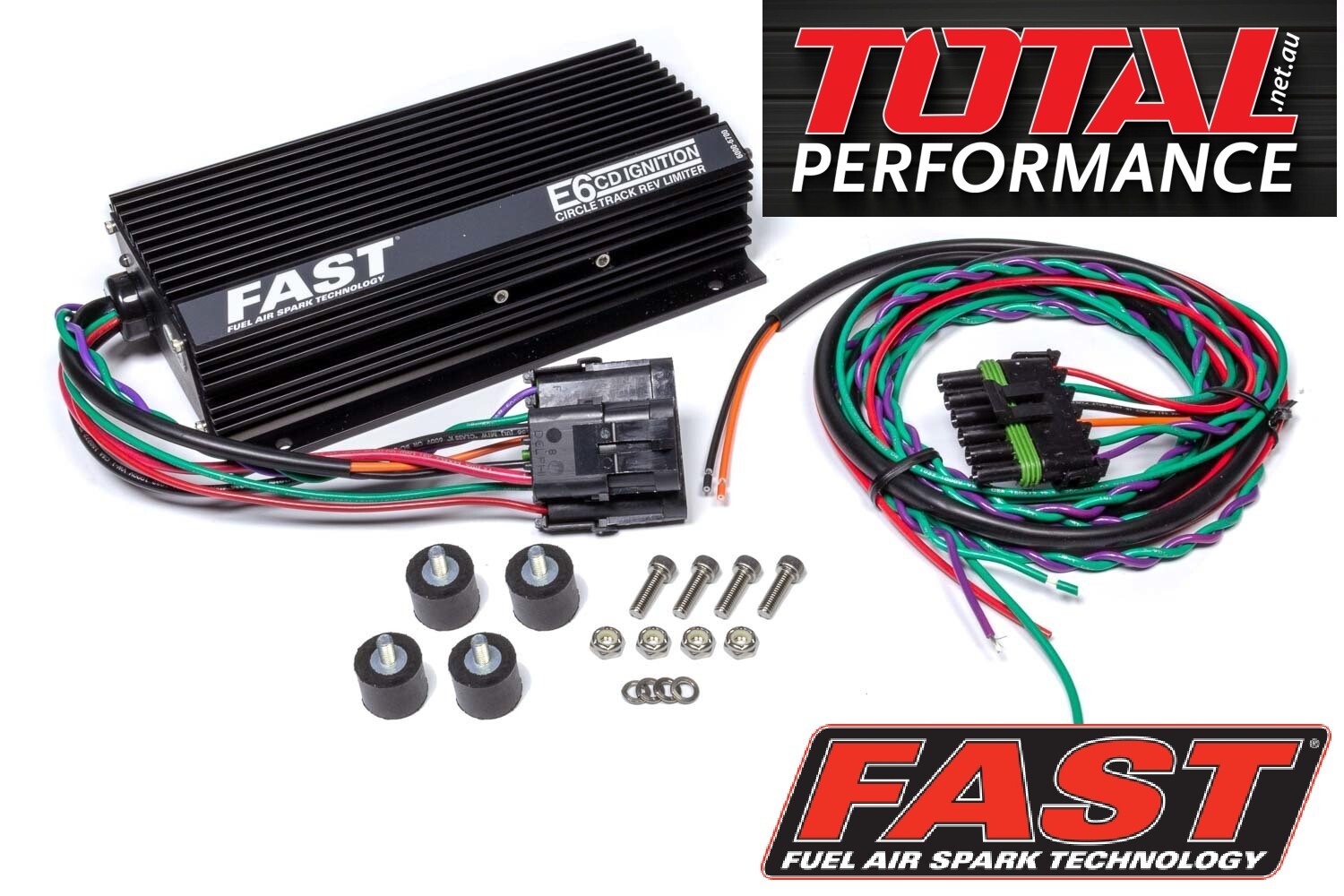

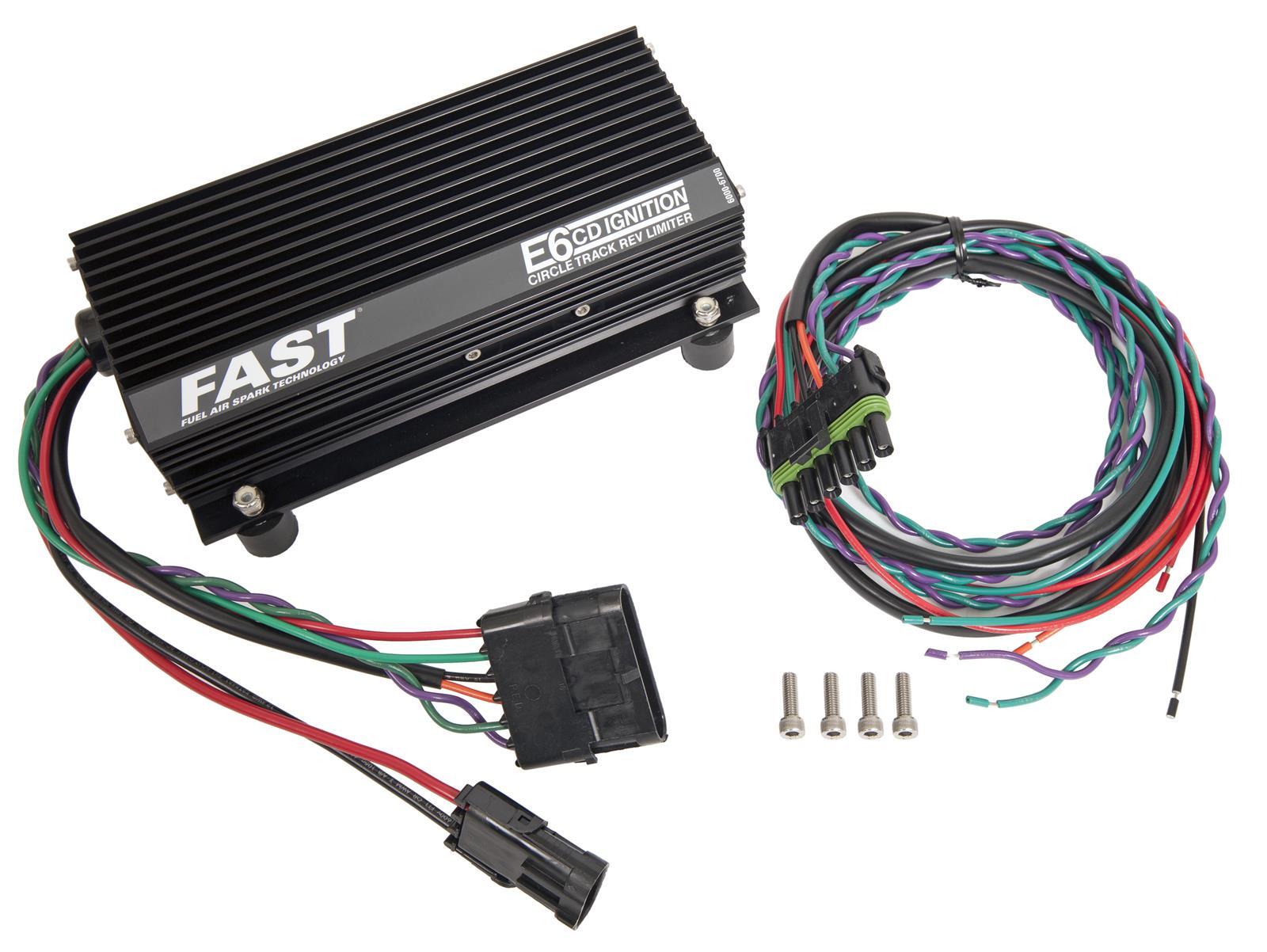

FAST ignition has again expanded its’ lineup of advanced state-of-the art race proven ignitions. The all new HI-6RC uses computer surface mount technology, in a fully digital design for greater reliability – just what Crane Cams Ignition is known for.The HI-6RC has a 6 pin weatherpak type harness plug for ease of installation, with a standard mag trigger input that can come from any type of magnetic trigger distributor.

The all new 20 degree start retard is built in so the HI-6RC assists the starter motor to fire the engine – especially when smaller flywheel and clutch packages are being used in the driveline. To protect your racing investment, the HI-6RC has shock mounts included to guard against vibration, and is fully potted with a new, soft urethane for heat, dirt, and moisture protection. Like all Crane Cams ignition boxes, the lightweight, anodized aluminum housing has cooling fins, providing more surface area to dissipate heat.



Rev Limiter:  Yes

Timing Retard:  One-stageIgnition Box Output:  Capacitive discharge

Tacho output:  Yes

Circuitry:  Digital

Data Acquisition:  No

CD Voltage Output to Coil:  450 V

Current Draw:  7 amps at 10,000 rpm

Spark Output (millijoules):  1,200 Millijoules

Minimum Operating Voltage:  6 V

Maximum Operating Voltage:  18 V

Ignition Box Color:   Black

Coil Included:   No
