600HP Ford 429 460 Big Block Cylinder Heads, Performer RPM, 292cc, Assembled Hydraulic Roller, BBF Complete

Ford 460 Cylinder Heads, Big Block Ford Cyldiner Heads,

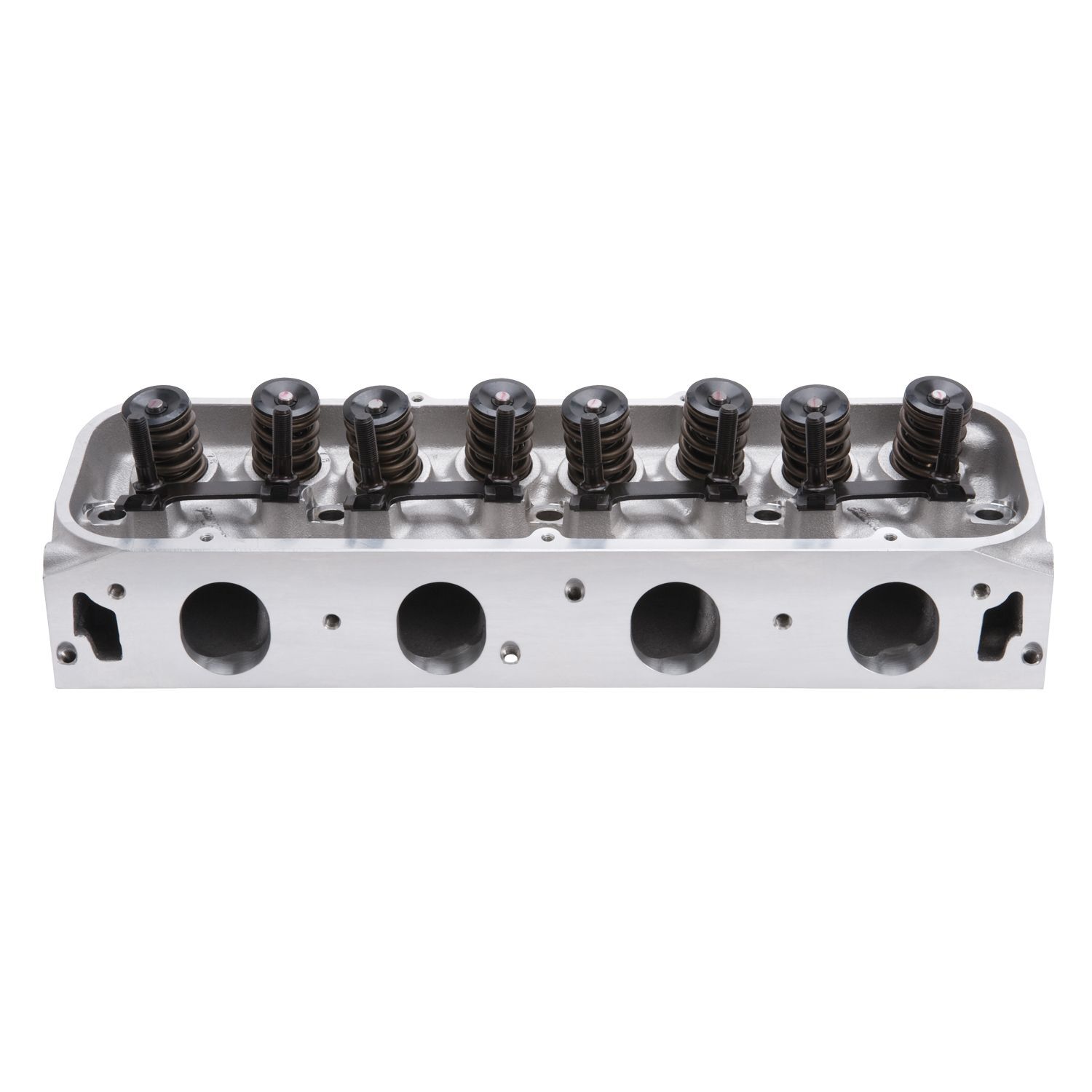

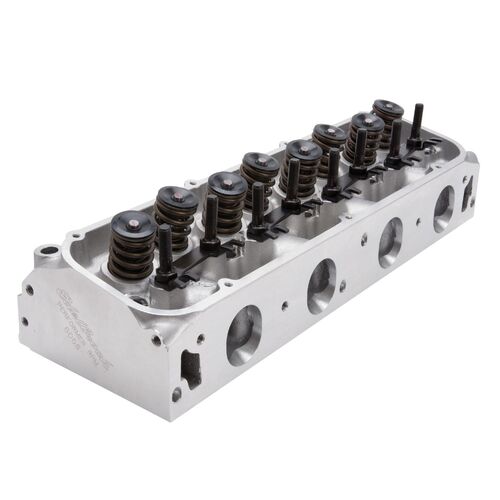

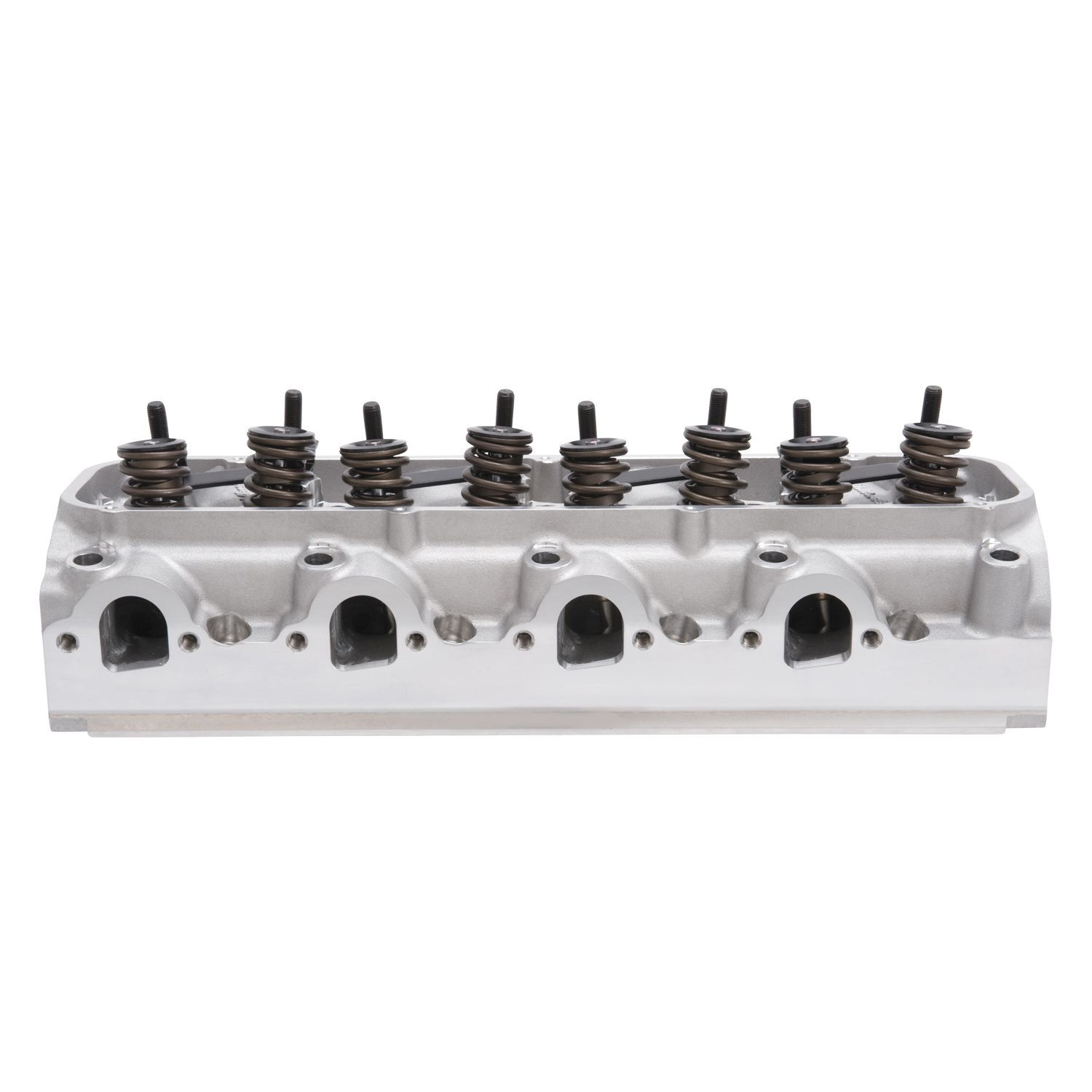

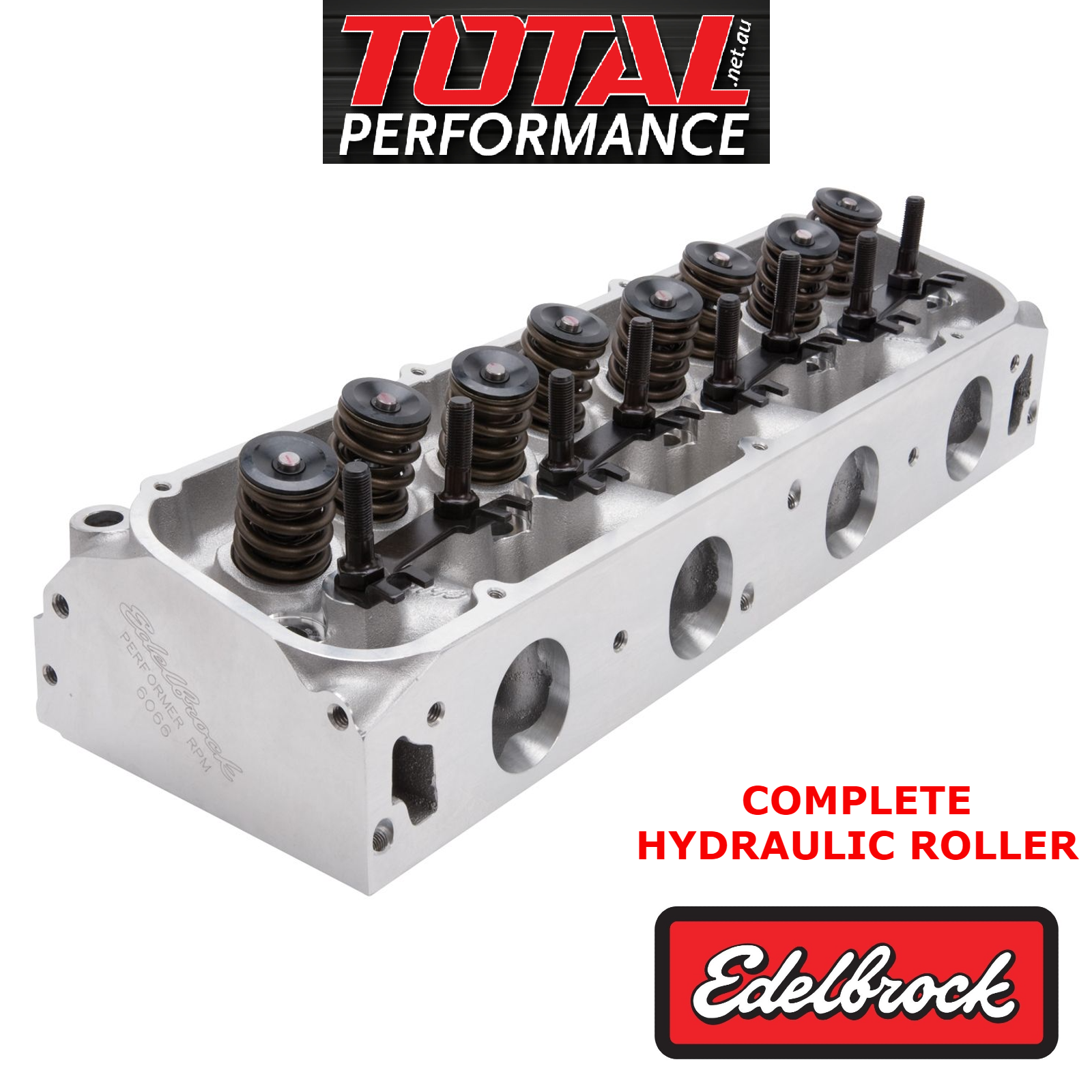

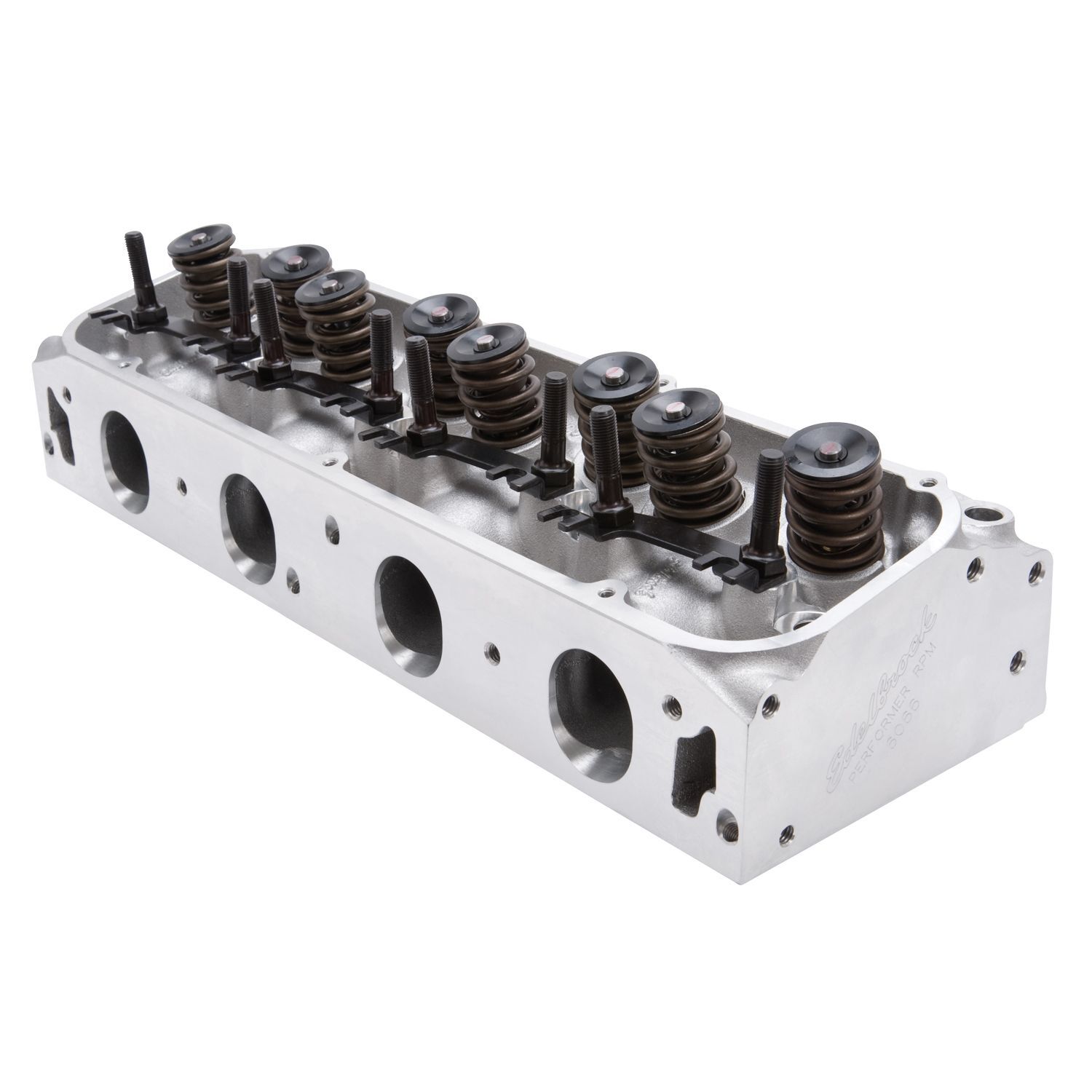

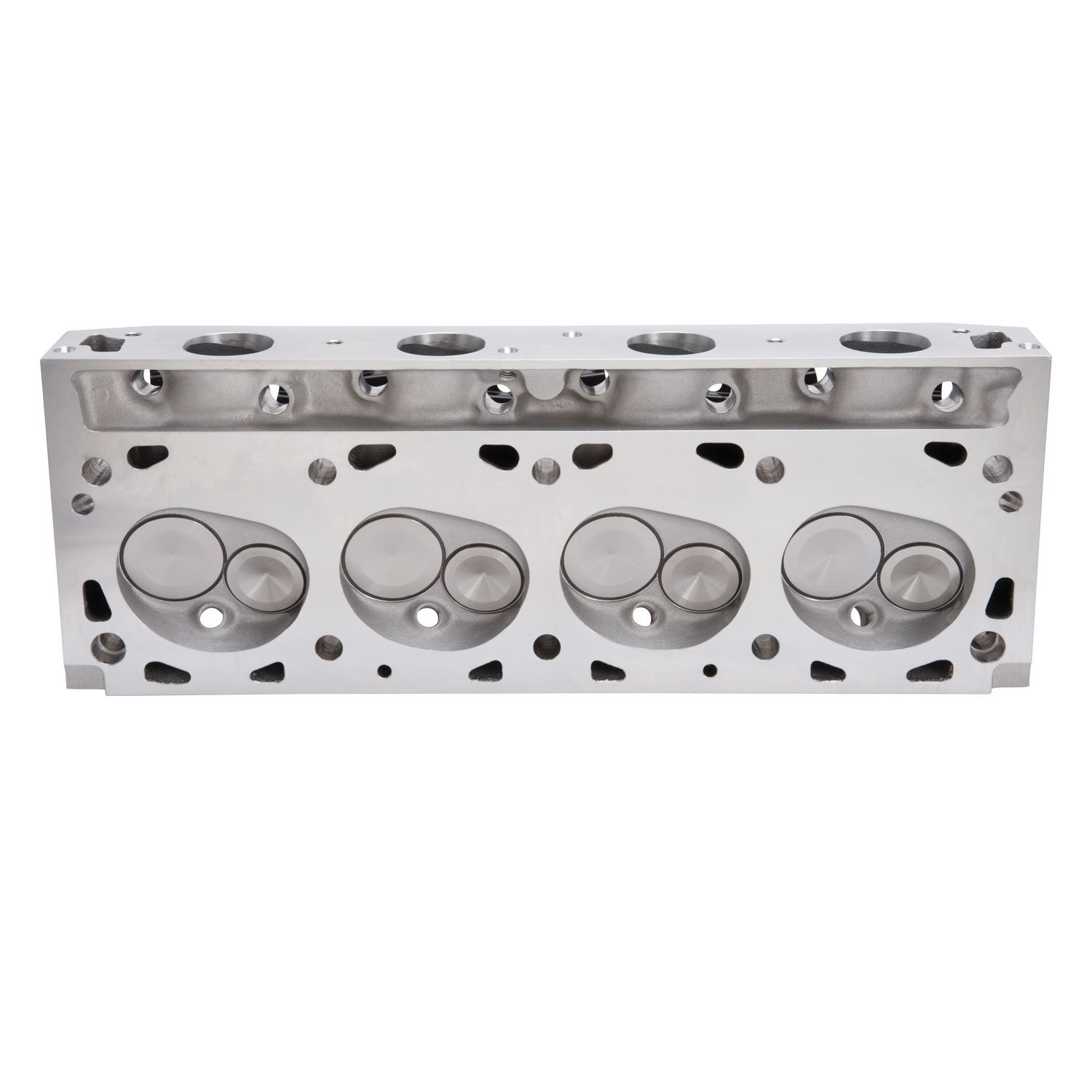

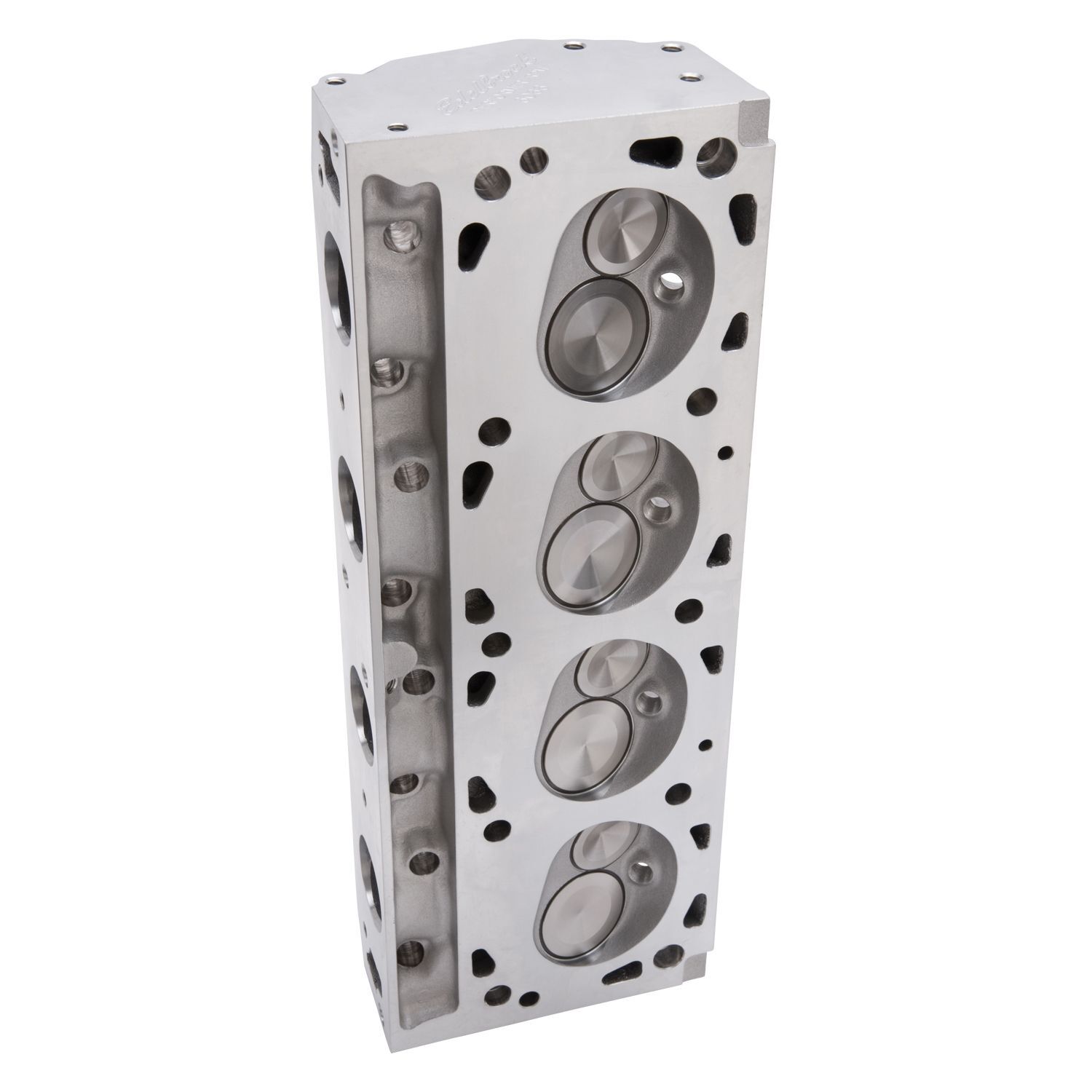

Edelbrock 60665 Performer RPM Cylinder Heads - Sold individually

The Edelbrock Performer RPM cylinder heads are designed for 1968-87 Ford 429 & 460 Big Block Ford engines. The Edelbrock Performer RPM aluminum cylinder heads feature threaded inserts in the rocker studs and exhaust manifold bolt holes for superior strength and durability.These Performer RPM heads are perfect for street performance and Big Block Ford muscle cars where more performance is needed. They also include hardened seats, bronze valve guides, and fully machined valve cover rails for a more consistent gasket seal. These Ford 460 cylinder heads offer improved power throughout the RPM range for greater throttle response and top-end horsepower. Perfect Bolt on Performance upgrade for your Ford 429, 460, or Stroker Big Block Ford engine.

Brand: Edelbrock

Motor: Ford 429, 460, Big Block Ford

Series: Performer RPM

Combustion Chamber Volume (cc):  95

Intake Runner Volume (cc):  292cc

Exhaust Runner Volume (cc):   100cc

Cylinder Head Style:   Assembled

Cylinder Head Material:   Aluminium

Intake Valve Diameter (in.):  2.190 in.

Intake Port Location:  Standard

Exhaust Port Location:  Standard

Exhaust Valve Diameter (in.):  1.760 in.

Valve Springs Included:  Yes

Maximum Valve Lift (in.):  0.730 in.

Camshaft Style:  Hydraulic roller

Outside Diameter of Outer Spring (in.):  1.580 in.

Number of Springs Per Valve:  Dual

Retainers Included:  Yes

Retainer Material:  Steel

Locks Included:  Yes

Lock Style:  7 degree

Valve Stem Seals Included:  Yes

Valve Stem Seal Style:  Positive stop

Rocker Arm Studs Included:  Yes - 7/16

Guideplates Included:  Yes for 3/8 pushrods



Intake Valve Angle:  18.7

Exhaust Valve Angle:  16.7

Valve Guide Material:  Manganese bronze

Valve Seat Machine Style:  3-angle

Valve Seat Material:  Ductile iron

Heat Crossover:  No

Quantity:  Sold individually.

Notes:  Designed for hydraulic roller camshafts.

Edelbrock, made in USA. Total Performance is an Edelbrock Australian Dealer.
