SKU: PFO302FT80303H

302 Windsor +030 Hypatec Cast Flat Top Pistons 4.030 SBF, Ford 289 302W CH: 1.587" (small valve relief)

+030 Over Size Suits Standard Crank/rod combination

$418.00

or 4 payments of $104.50 with Info

IN STOCK  FREE SHIPPING

Description

Hypatec Pistons for the Ford Windsor 289 /302 Engines.

**Note - has small valve reliefs for factory heads. Will not suit large camshafts with 2.020" valves.

Application: Ford Windsor 289 302

Crown: Flat Tops

Reliefs:  cc

Piston Material:  Cast alloy

Bore:  4.030"

Oversize: + .030"

Pin Height: 1.587"  (Standard Crank & Standard Rods)

Pin Dia:   Ford 1.

Rings: 1/16 , 1/16,   3/16

Rings - NOT included.

Recommended Rings:

  • Hastings:  HAST-2M-139-030  (Moly)
  • Sealed Power: SP-E-251K30   (Moly)

Disclaimer

The data provided is correct to the best of our knowledge.

It is up to the purchaser to ensure it is suitable for their application.

Some products require specialised fitting and additional parts.

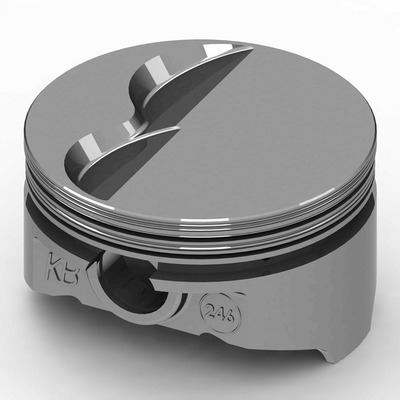

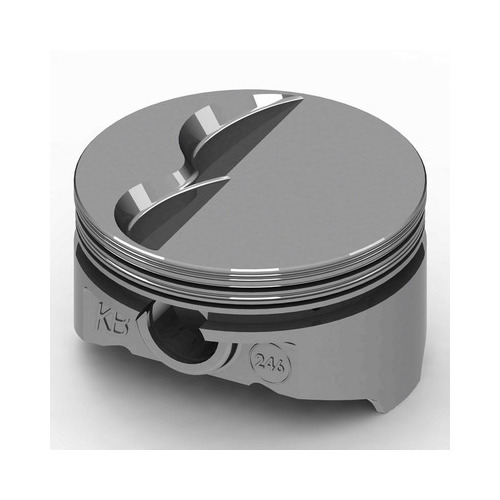

NOTE* Photo is a representative image and not of actual product.

Specifications

SKU PFO302FT80303H
Brand HYPATEC
Bore 4.020
Piston Top Flat Top
Compression Height 1.090"
Rod Length 5.400
Piston Material Cast Alloy
PISTON PIN 0.927
Piston Pin Family Chevy
