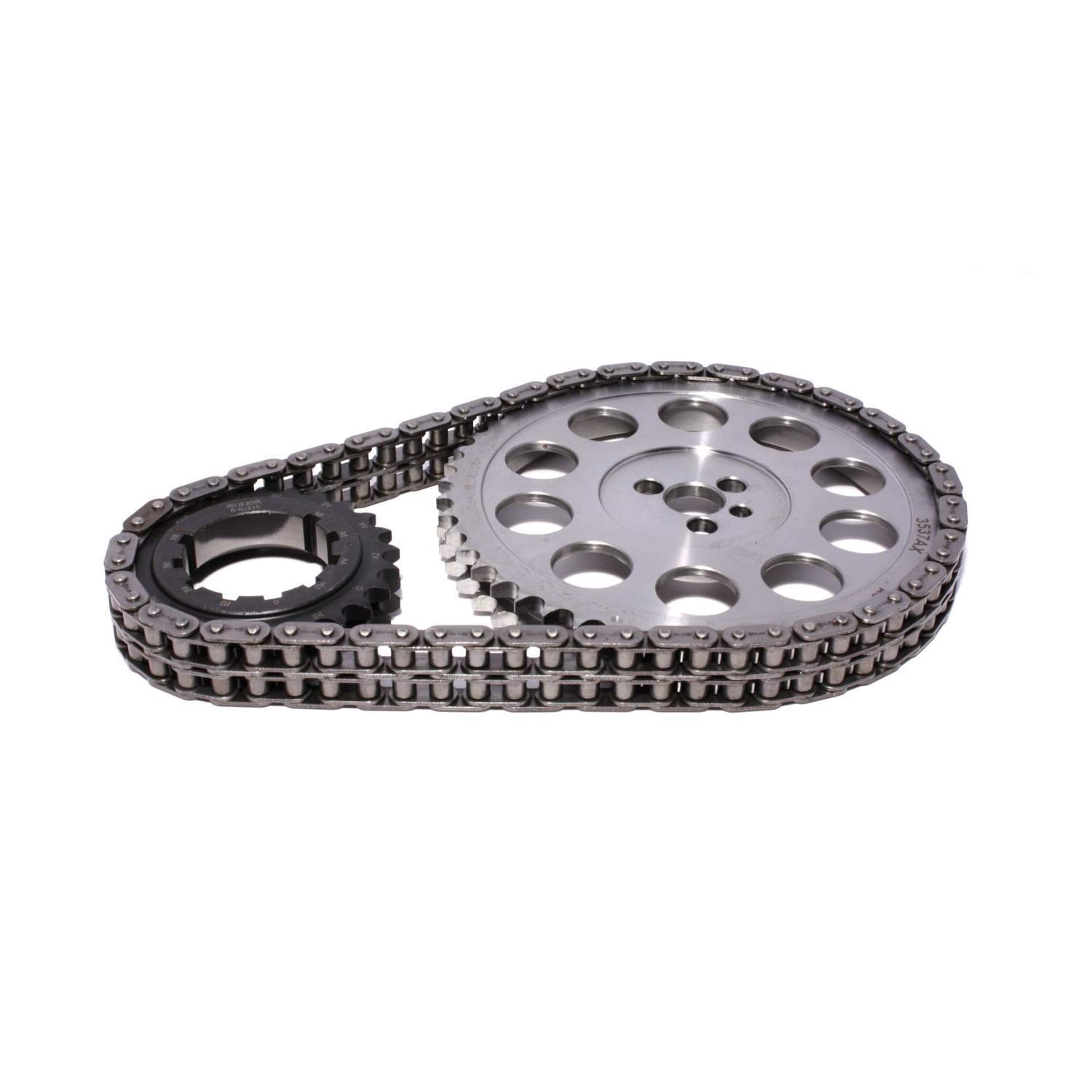

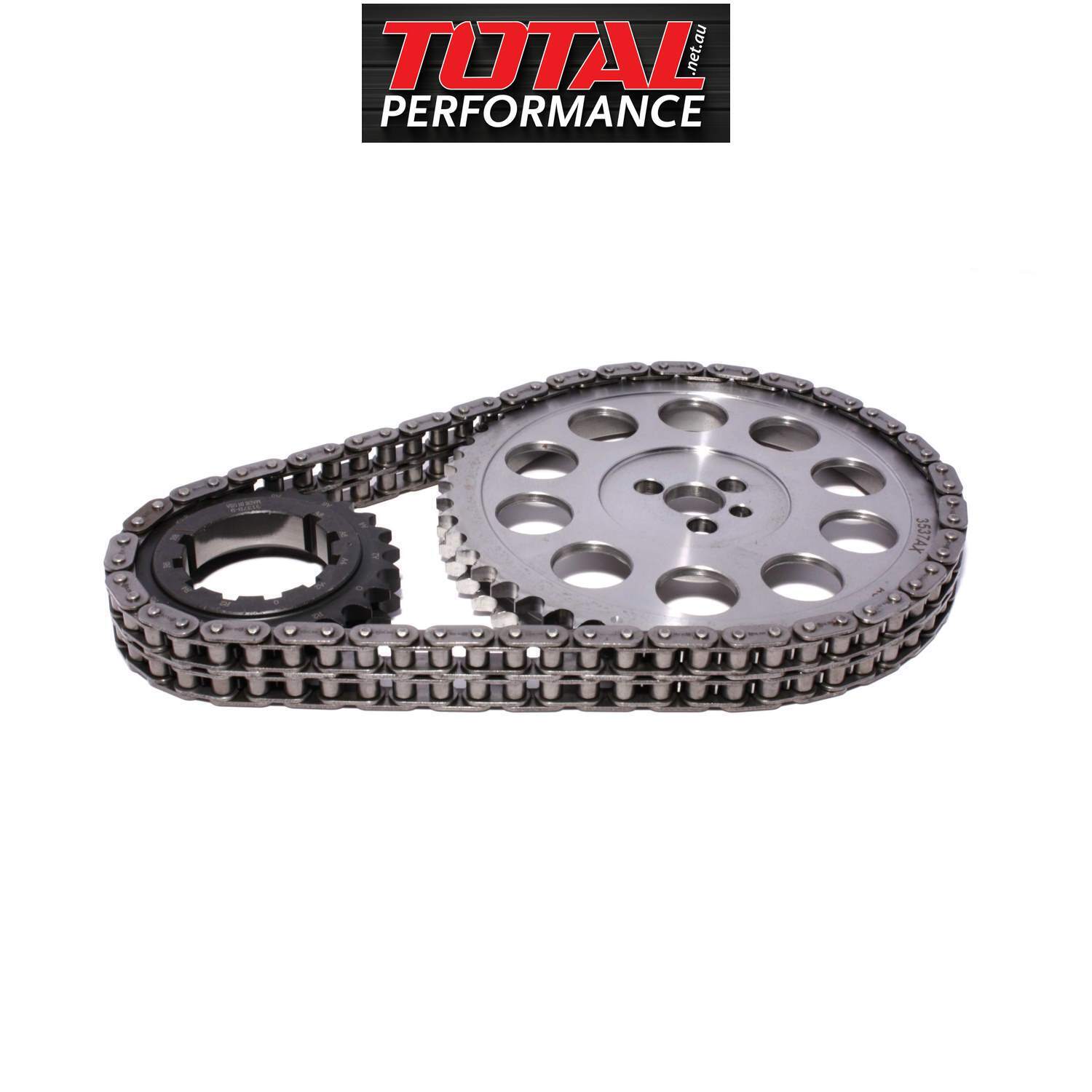

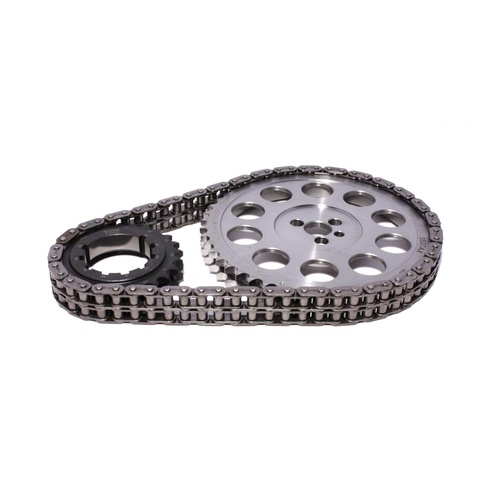

BBC 502 Gen 6 Timing Chain, Gear Set, Keyway Adjustable, Double Roller, Billet Steel Sprockets, Chevy, 7.4L, 502, GEN VI

COMP Cams Billet Timing Chain Sets

Suits Chevy Big Block - Gen VI late model Big Blocks 502

COMP Cams billet timing sets give you the strength, precision, and reliability that come from billet construction. Crank gears have nine keyways, which allow you to vary timing in 2-degree increments either way from true zero--up to 8 degrees retarded or advanced. To complete these COMP Cams billet timing sets, a thrust bearing is included.

Timing Chain Included:  Yes

Timing Chain Style:  Double roller

Maximum Advance/Retard at Camshaft:  4 degree

Maximum Advance/Retard at Crankshaft:  8 degree

Cam Gear Included:  Yes

Cam Gear Material:  Billet steel

Crank Gear Included:  Yes

Crank Gear Material:  Billet steel

VVT Gear Included:   No

Tensioner Included:   No

Thrust Bearing Included:   Yes

Bolts/Studs Included:   No

Gaskets Included:  No

Offset Bushings Included:    No

Quantity:   Sold as a set.

Special Attention:    Not for use with the stock timing cover or on stock applications with crank sensors.

Note: picture may not be of actual product.
