SKU: ED2194

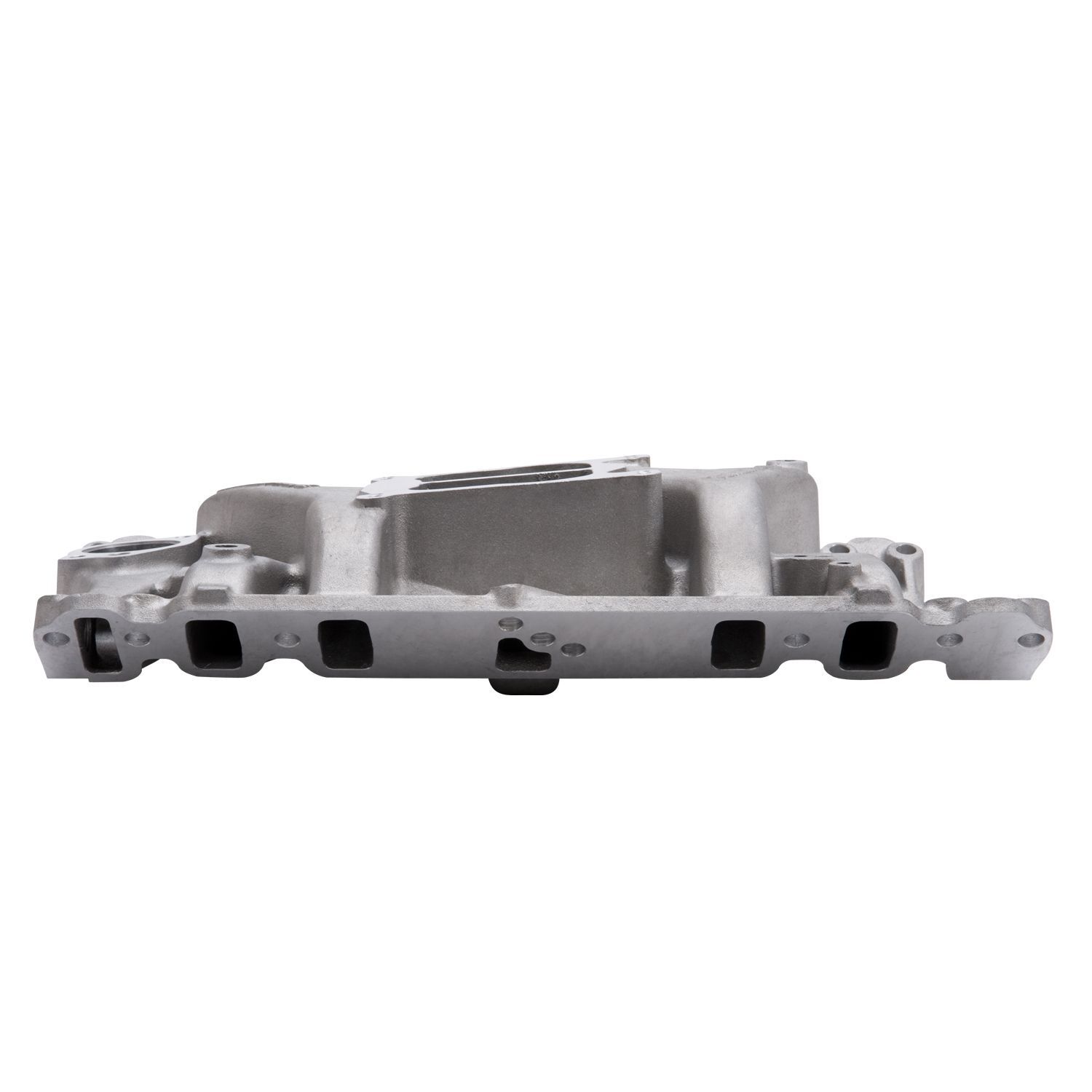

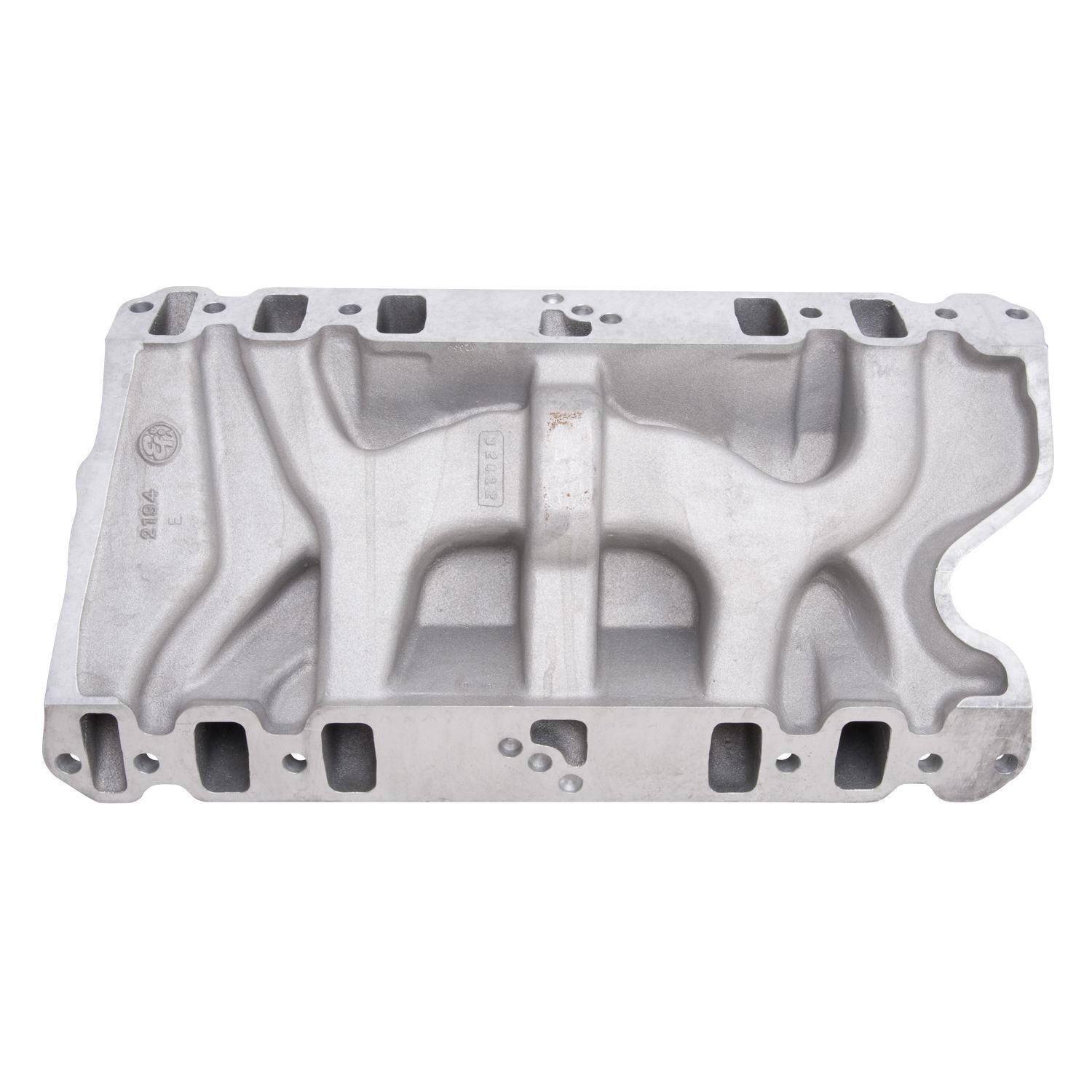

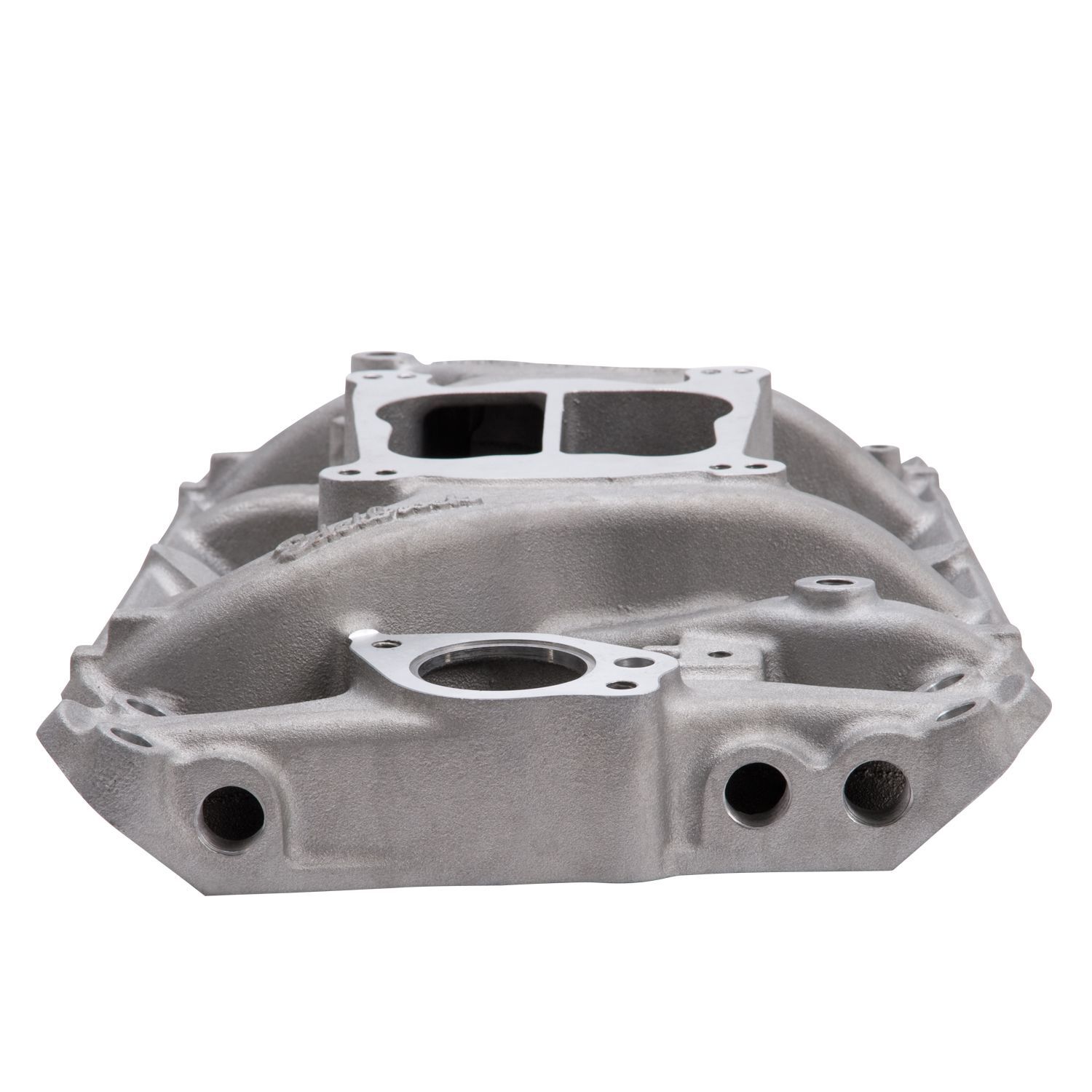

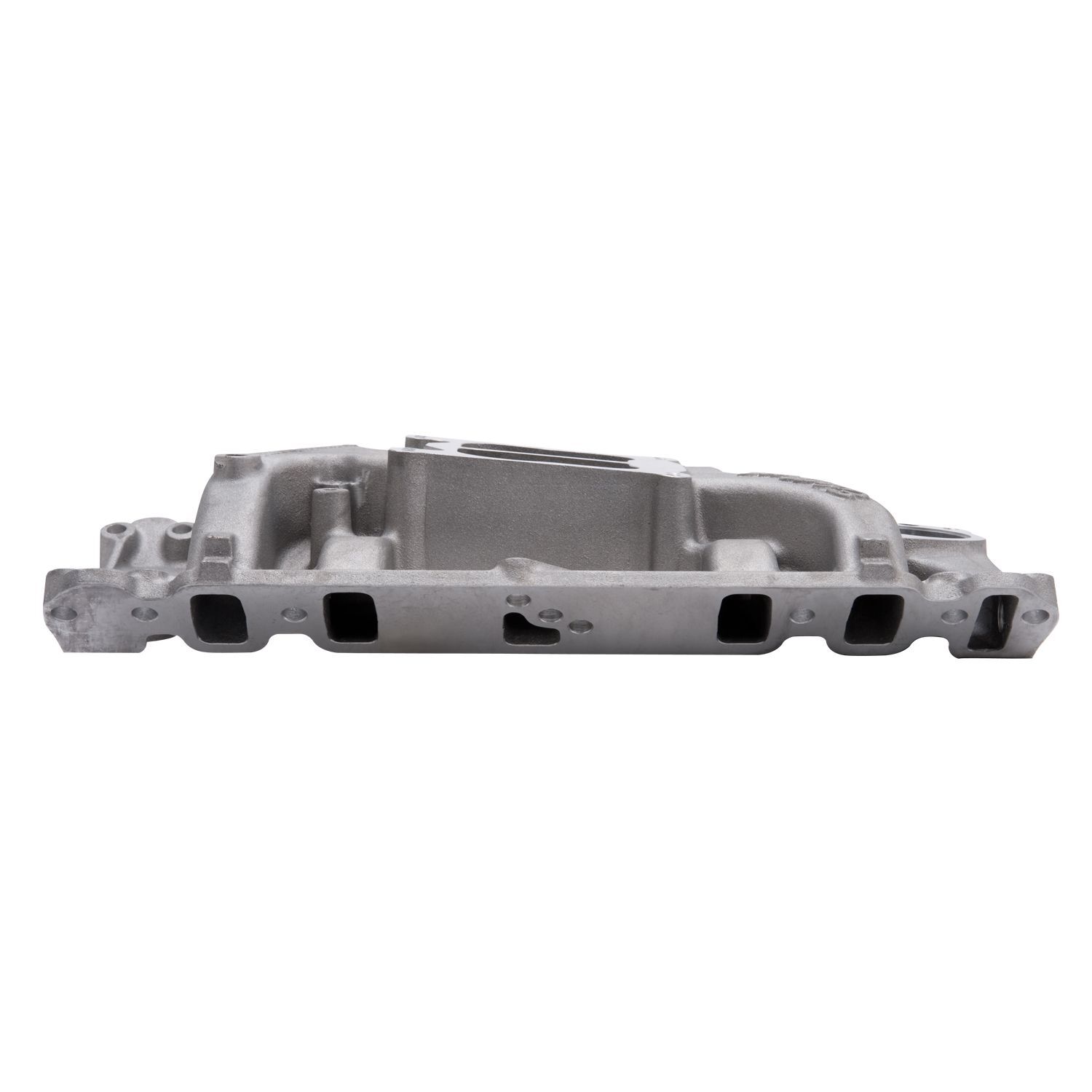

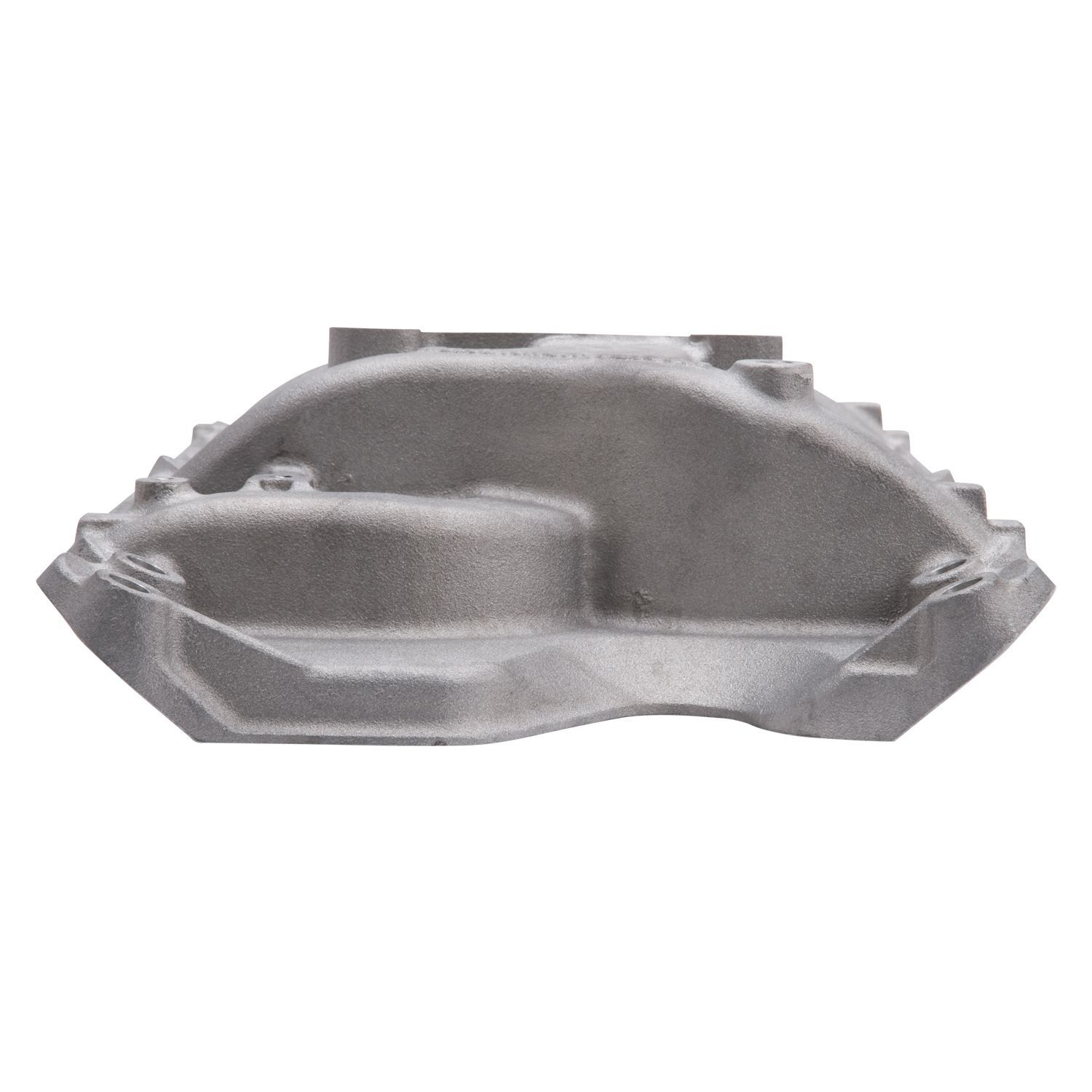

Holden V8 253 308 Intake Inlet Manifold Early Carby Head, Dual Plane Performer Satin. Spread Bore

RPM Range: Idle - 5500

RRP $741.40 SAVE $23.87 (3%)
$717.53

or 4 payments of $179.38 with Info

IN STOCK  FREE SHIPPING

*FREE SHIPPING ON ORDERS OVER $200!


Description

Edelbrock Performer 308 Holden Dual Plane Intake Manifold, for Holden 253-308 c.i.d Engines. Accepts Either OEM 4-bbl or 4150-Style Square-Bore Carburetors.

308 Intake Manifold, Red, Blue, Black, V8 Holden.

Edelbrock Holden intake manfiold, ED2194 Performer intake manifold is designed for street 253-308 c.i.d. Holden V8 engines. This Performer intake manifold is a dual-plane design that is tuned for excellent throttle response from idle to 5500 rpm. The 2194 Performer Holden manifold has been designed to fit both cylinder head bolt hole patterns. Pilot holes have been drilled on each side of the exhaust crossover for early or late model cylinder heads and will need to be drilled out depending on application. Will not fit EFI Heads (see #7594). Accepts both square-bore and spread-bore carbs. Fits Red/Blue/Black engines. Does not have a provision for external heat crossover.

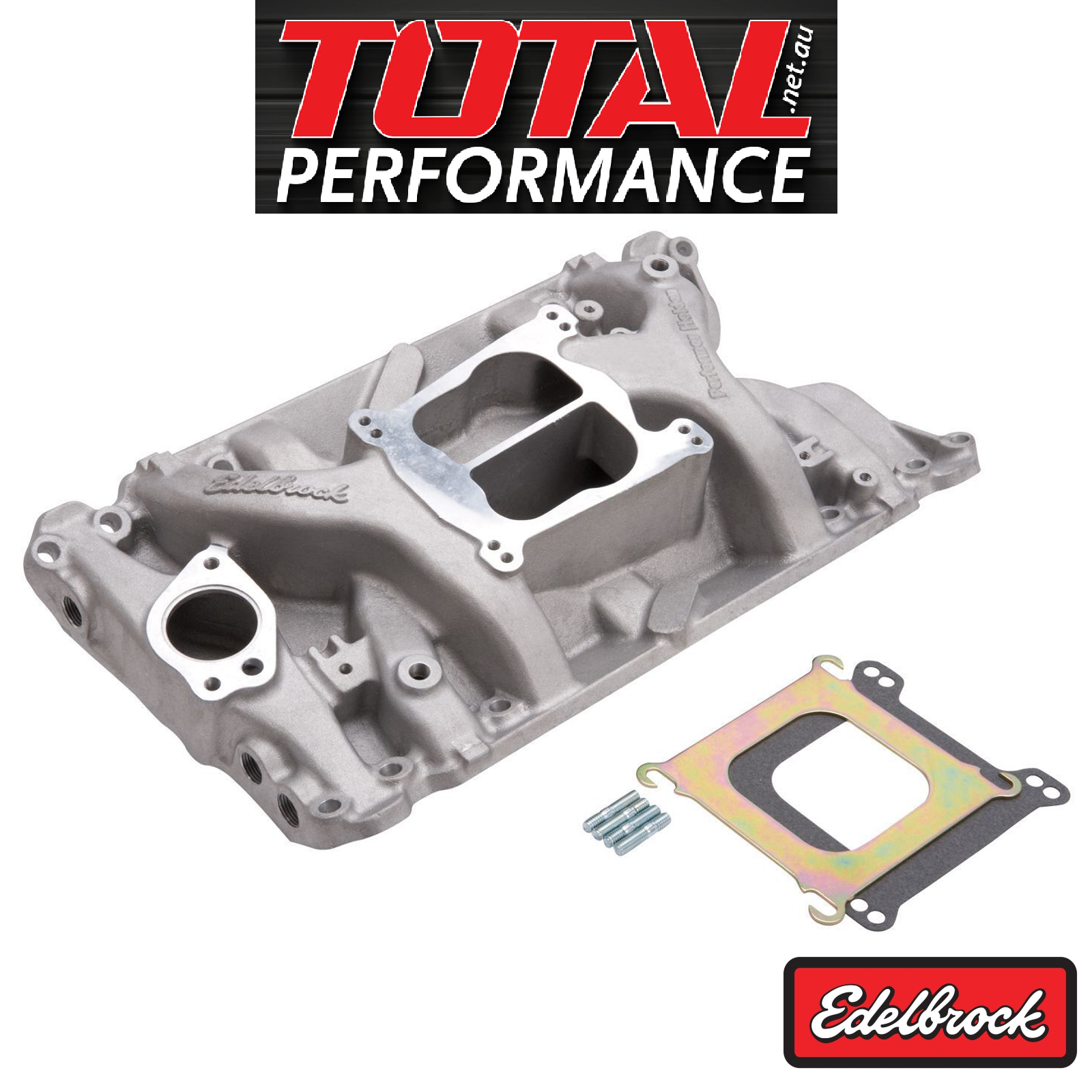

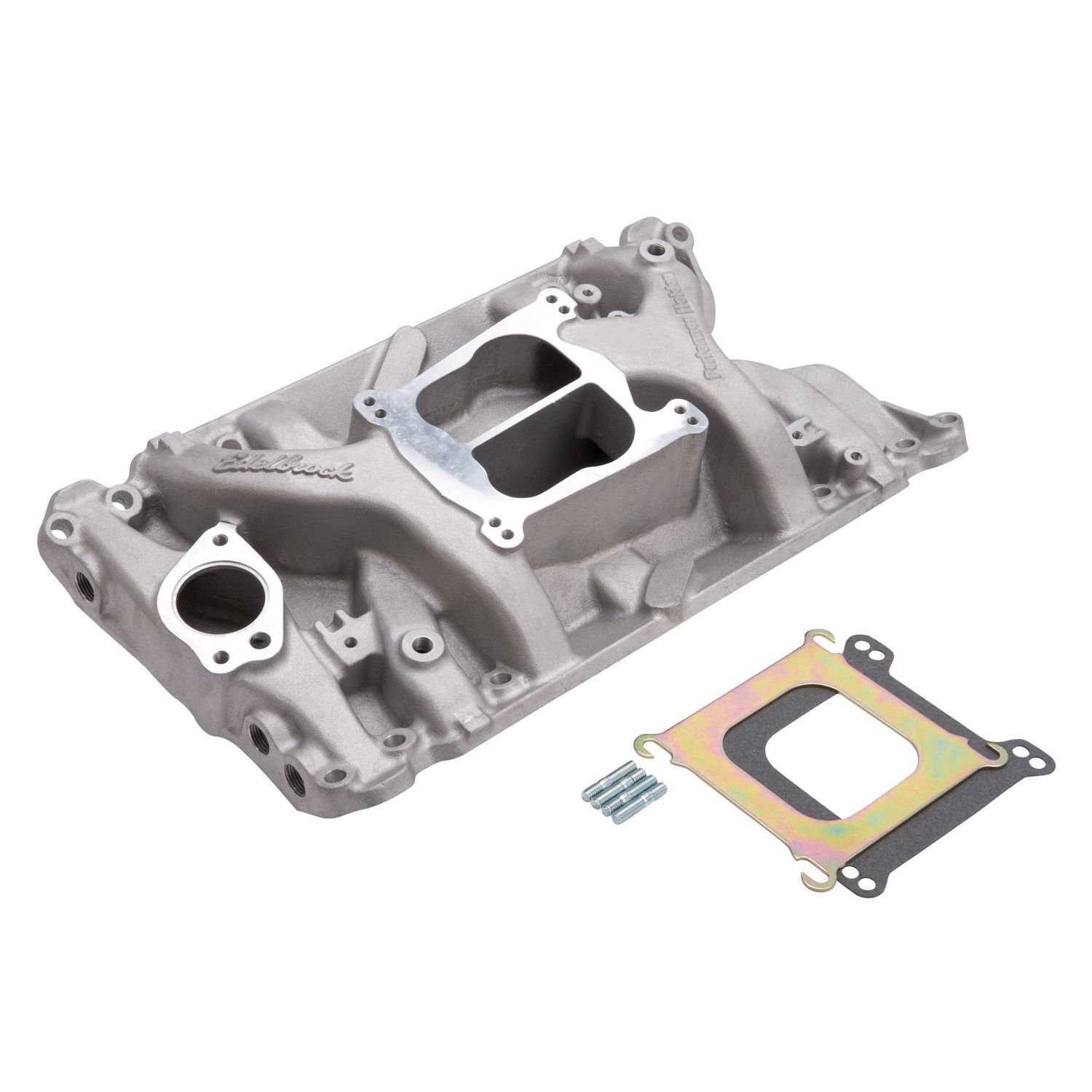

  • Includes Edelbrock square-bore carb adaptor plate #2732, carb gasket and carb studs.
  • #1 selling 308 Intake Manifold
  • Utilises the holden thermostat housing.

Check out our matching range of Edelbrock Carby's

Edelbrock intakes offer increased performance and improved looks for a most Chevy, Ford & Chrysler engines. The Edelbrock 'Proven performance' is a philosophy that Edelbrock was founded on and it continues to this day with now “Dyno Proven Performance”. Edelbrock has the highest standards for performance and quality. Edelbrock main products are engineered, manufactured, and tested in the USA to have the best quality possible. Edelbrock has some of the best warranties in the industry and Total Performance highly qualified technical support staff to assist when choosing an Edelbrock performance product.

Specifications

Holden:Small-Block:253 (4.1L)/304 (4.9L)/308 (5.0L)/355 (5.7L)

SKU ED2194
Barcode # 00085347021949
Brand Edelbrock
