Hydraulic Flat Tappet Cam & Lifter kit, 204/214 LSA 112 Ford 302 351C Cleveland Performer RV camshaft

Description

Ford 351 Cleveland, Hydraulic Flat Tappet Camshaft & lifters Kit - Towing / Economy

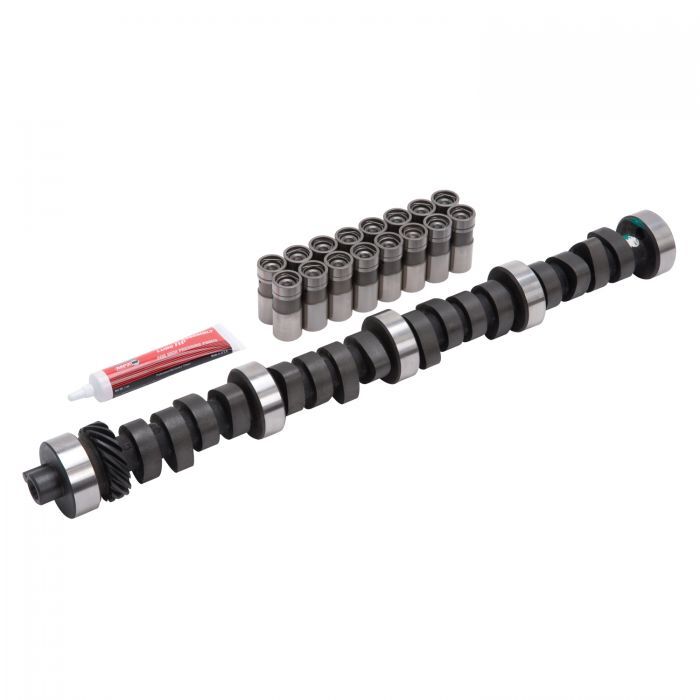

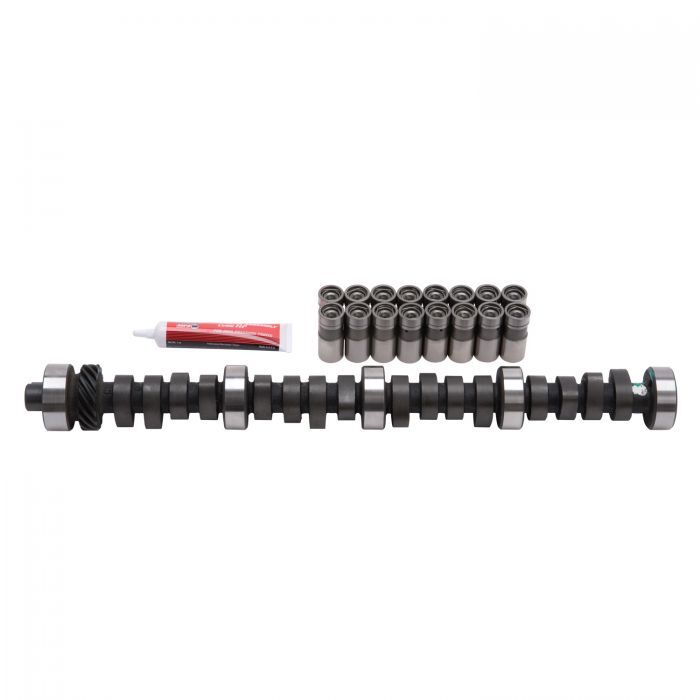

Edelbrock Performer-Plus camshaft & Lifter kit

Ford Cleveland 302 351C 351M-400 V-8 applications.

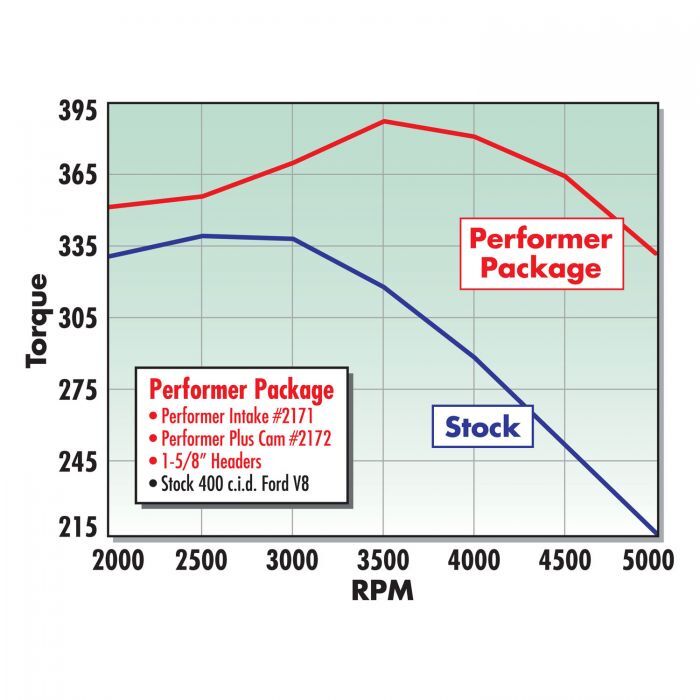

This Edelbrock cam kit produced 390 ft-lbs. of torque when used with #2171 intake and stock iron cylinder heads on a 400 engine.

The camshaft will produce optimum torque from the low-end to the mid-range, Performer-Plus camshafts match with Performer manifolds for vehicles operating from off-idle to 5500 rpm. This Performer-Plus is a smooth idling cam for daily drivers, trucks, vans, RVs and 4x4s. You can expect a major improvement in throttle response and torque. All camshafts include flat tappet lifters, assembly lube and instructions.

Camshaft Specifications: -

RPM Range: 800 - 5500 rpm

Duration @ .050 Intake: 204 degrees -

Duration @ .050 Exhaust: 214 degrees -

Lift @ Valve Intake: .484" -

Lift @ Valve Exhaust: .510" -

Lobe Separation: 112 Degrees -

Intake Centerline: 107 Degrees - Idle Vacuum @ 1000 RPM's: 14"

Specifications

SPECS

Grade Type	PERFORMANCE
Lifter Materials	Hardened Steel
Computer Controlled Compatible	No
Intake Duration .050 Inch Lift	204 deg
Installation Notes	Recommended Valve Springs for OEM heads: Edelbrock part #5872 non-rotator/# 5972 Rotator; In order for this Performer-Plus cam and lifter kit to be covered under ANY WARRANTY you must use either the correct Edelbrock Sure Seat valve springs or the stock original equipment valve springs.; Oil/additive must contain Zinc designed for use with flat tappet camshafts.; Coat cam lobes and bottoms of each lifter with MoS2 lube (supplied) to prevent cam lobe and lifter wear from occurring during initial start-up.; Do not allow the engine to run under 2000 rpm for the first 1/2 hour. Slow idle speeds may result in severe cam and lifter wear. Start the engine and bring to break-in rpm.
Advertised Exhaust Duration	292 deg
Advertised Intake Duration	282 deg
Cam Type	Cast
Exhaust Duration at .050 inch Lift	214 deg
Exhaust Valve Lift	0.510 in
Intake Valve Lift	0.484 in
Lifter Type	Hydraulic
Lobe Separation	112 deg
