7 AMP 1 step/rev limiter Ignition Control Box, with Boost Retard- Street Series - Turbo/Blowers
Boost Retard - suits Turbo & Blowers.
or 4 payments of $162.53 with
Info
*FREE SHIPPING ON ORDERS OVER $200!
Description

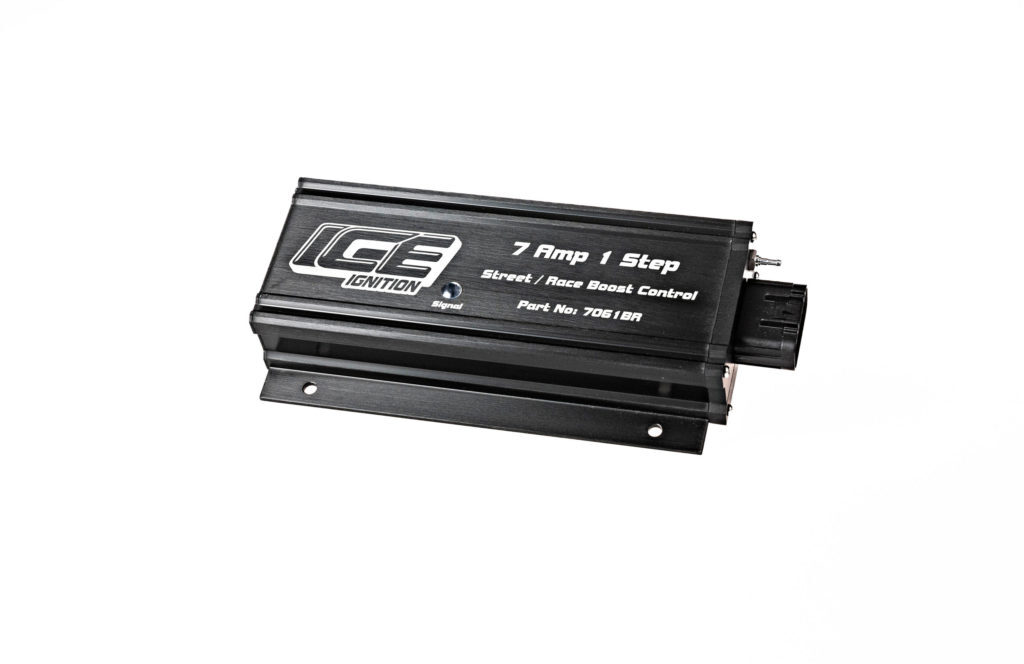

7 AMP 1 step/rev limiter Ignition Control Box with a Boost Retard function. Suits Street Series Blown & Turbo set ups.
The 7061BR kit is a popular package aimed at mildly to highly modified street cars with forced induction such as turbochargers or blowers.
The 7061BR features a built in non adjustable 10 degree advance curve. It derives its tune-ability through its 2.5 bar MAP sensor providing vacuum advance and adjustable boost retard that can give as little as 1/10th of a degree up to 1 degree of timing retard per pound of boost as well as a single fully adjustable RPM limiter.
This provides easy and effective tune-ability for all combinations with the added security of an RPM limiter to protect the engine.
Warranty
12
Features
Full power, multi-strike CD ignition control designed for carbs and EFI;Modern digital controller, transformer and capacitor for improved efficiency;High energy sparks from idle to redline ensure complete combustion for increased power;Completely encased in soft urethane for protection against moisture and vibration
Specifications
| SKU | ICE-7061BR |
| Brand | ICE IGNITION |
| Title | E6 CD Ignition Box |
| Height | 2.00 |
| Peak Spark Gap Current | 510 |
| Primary Energy Output | 1.2 |
| Primary Voltage Output | 450 |
| Multi-strike Duration (crankshaft Rotation) | 20 |
| Operating Range | 12,000 |
| Current Draw | 7.0 |
| Operating Voltage | 6-18 |
| Weight | 4.250 |
| Coil Shape | N/A |
| Rev Limiter Included | Yes |
| Minimum Operating Voltage | 6 |
| Instruction Manual Included | Yes |
| Coil Wire Included | No |
| Width | 4.50 |
| Length | 8.00 |
