SKU: JH-2616HNR

Reduced Travel Tie Bar Hydraulic Roller lifters Retro Fit Holden 304, 308 5.0L V8

Reduced Travel | NO Axle Oiling

$1,452.00

or 4 payments of $363.00 with Info

IN STOCK  FREE SHIPPING

*FREE SHIPPING ON ORDERS OVER $200!


Description

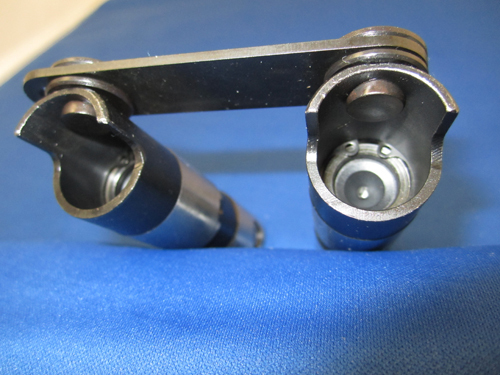

Johnson Hydraulic Roller Lifters, Tie Bar, Retro-Fit for Holden 304, 308 5.0L

FEATURES: Reduced Travel.

*NO Axle Oiling*

  • Accept No Imitation ~ Insist On Johnson Lifters
  • Best street / race hydraulic roller lifter in the WORLD!!!
  • Cold forged steel body heat treated for exceptional wear resistance.
  • Precision ground needle roller bearing with high chromium steel axle for long life and minimal friction.
  • Cold forged extra long piston, precision ground and fitted for controlled leak down and pump up.
  • High flow disc style quick reacting check valve for better reaction at higher RPM.
  • Precision oil metering assuring proper oiling to the rocker arms without sacrificing oil pressure.
  • Proprietary tie-bar system.
  • All hydraulic lifters are available with short travel, variable duration lift, and axle oiling features.

SPECIFICATIONS

  • Johnson Part # 5208HR
  • Engine Family: Holden V8 - 253, 304, 308, 5.0L - Early & late blocks
  • Hydraulic-Roller - TIE BAR
  • Will Accommodate Higher Open Spring Pressures of 500+ lb.
  • .093" Total Plunger Travel (REDUCED Travel)
  • .035" Recommended Pre-Load +-.010"
  • Set of 16 Lifters
  • NOTES:

Specifications

SKU JH-2616HNR
Brand JOHNSON
Lifter Diameter 0.842
Lifter Type Retro-Fit Link Bar Hydraulic Roller
Seat Height 2.66
Plunger Travel Short
Link Bar Included Yes
