Description

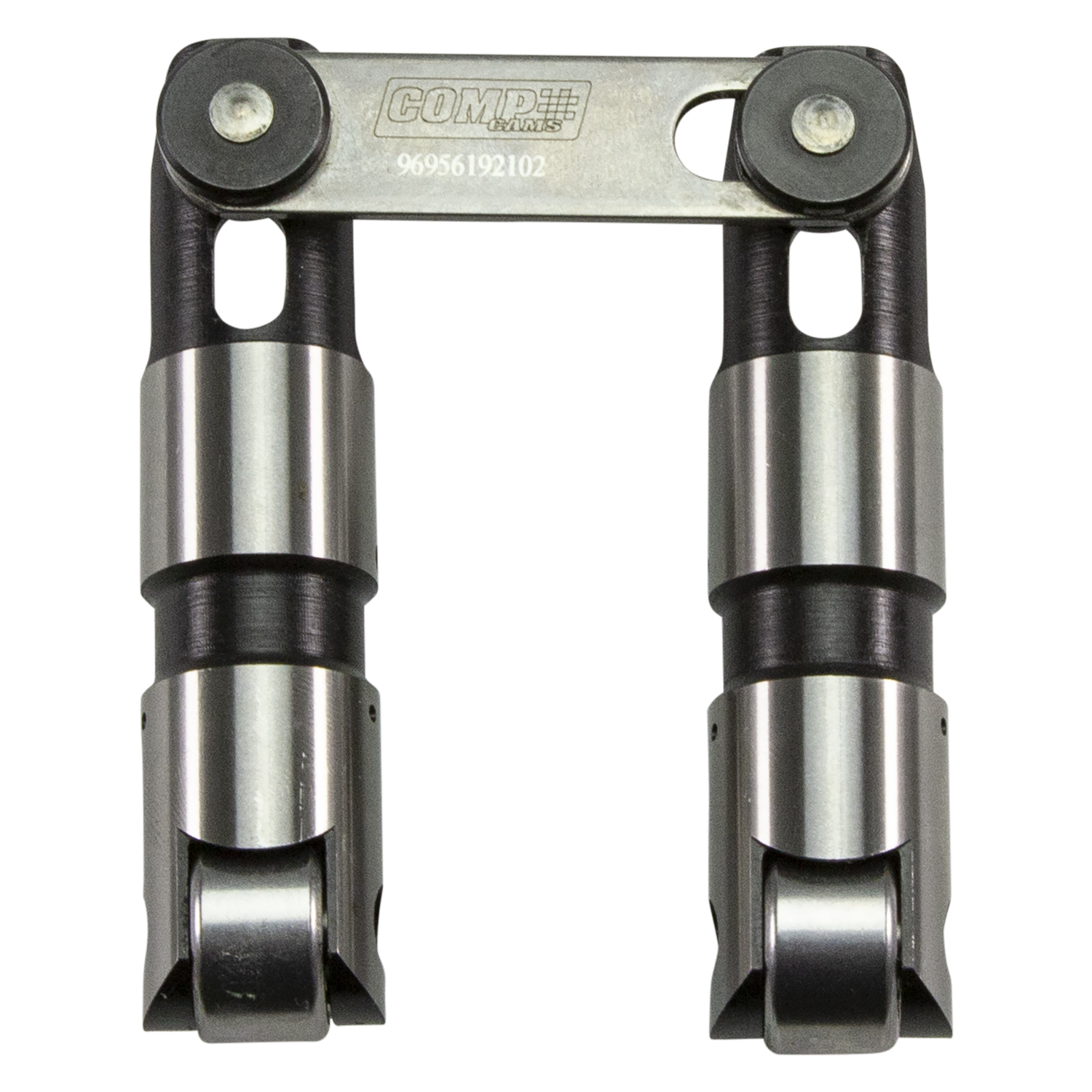

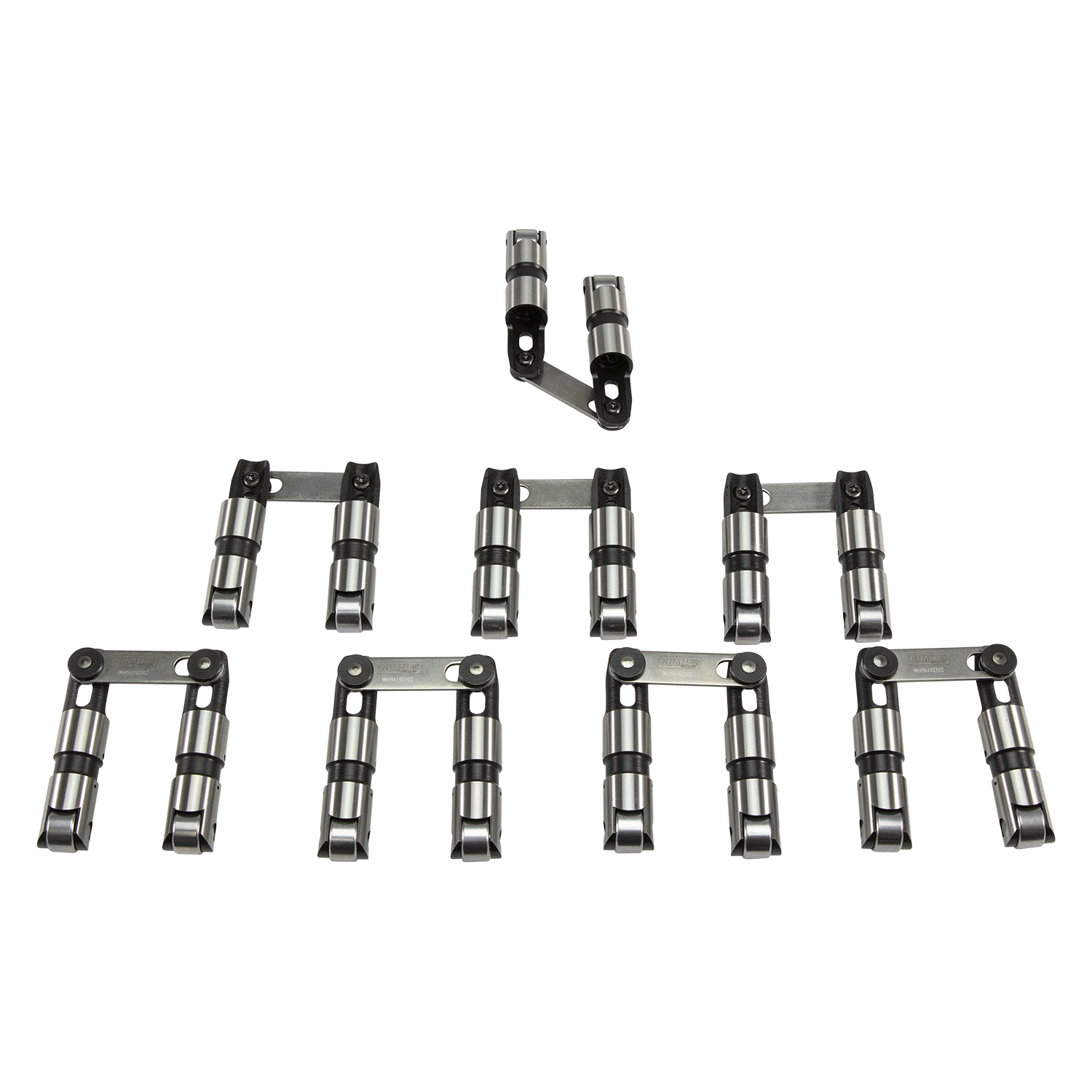

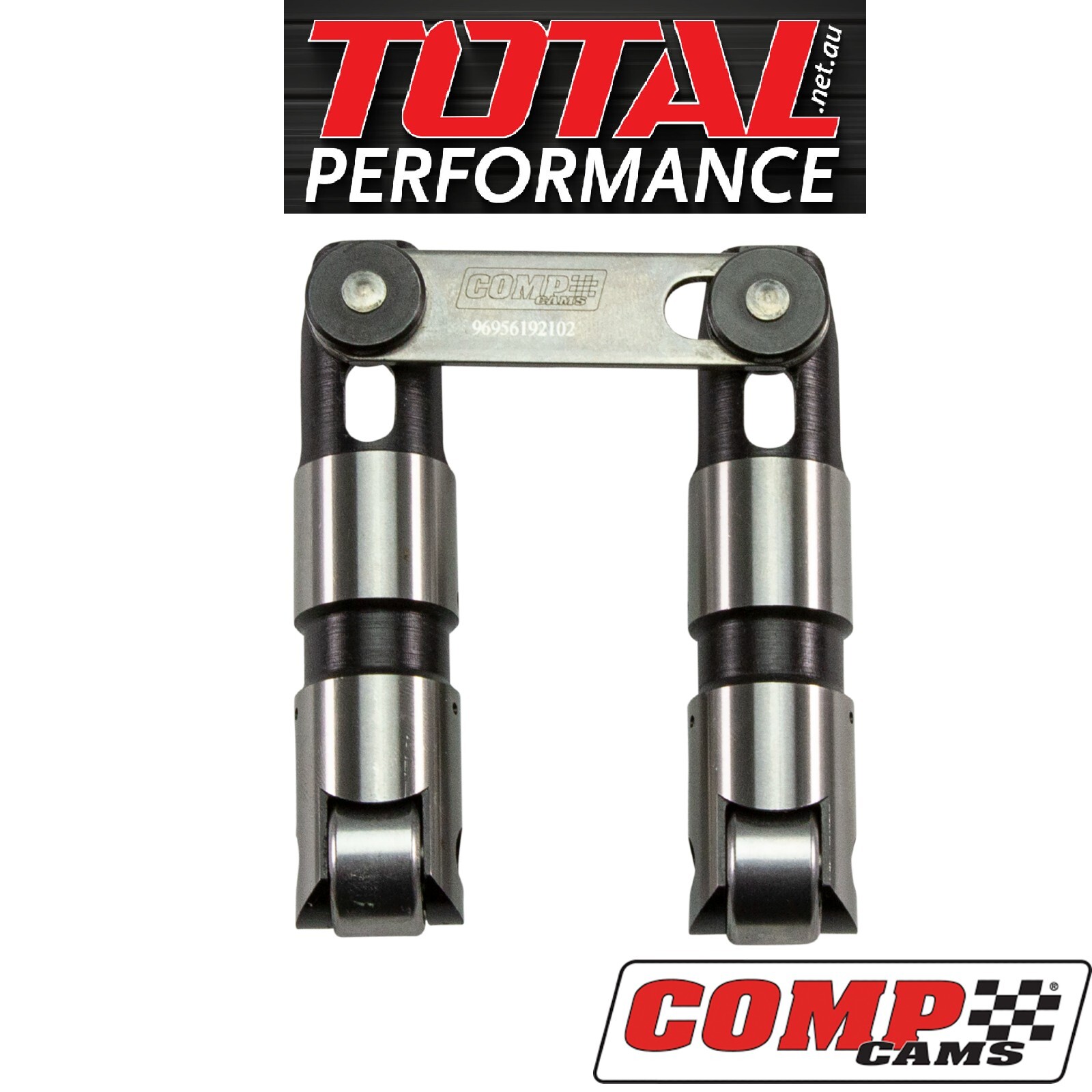

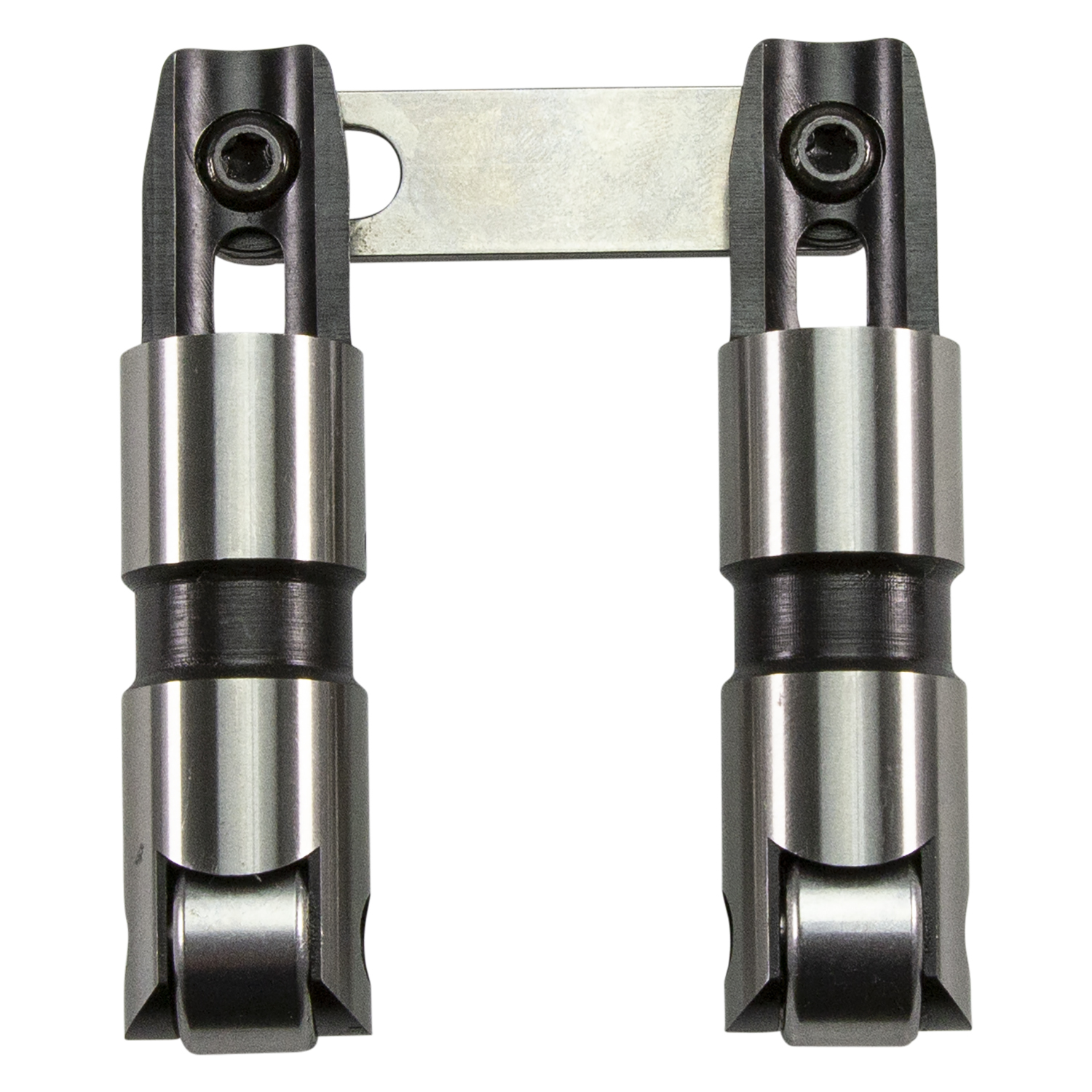

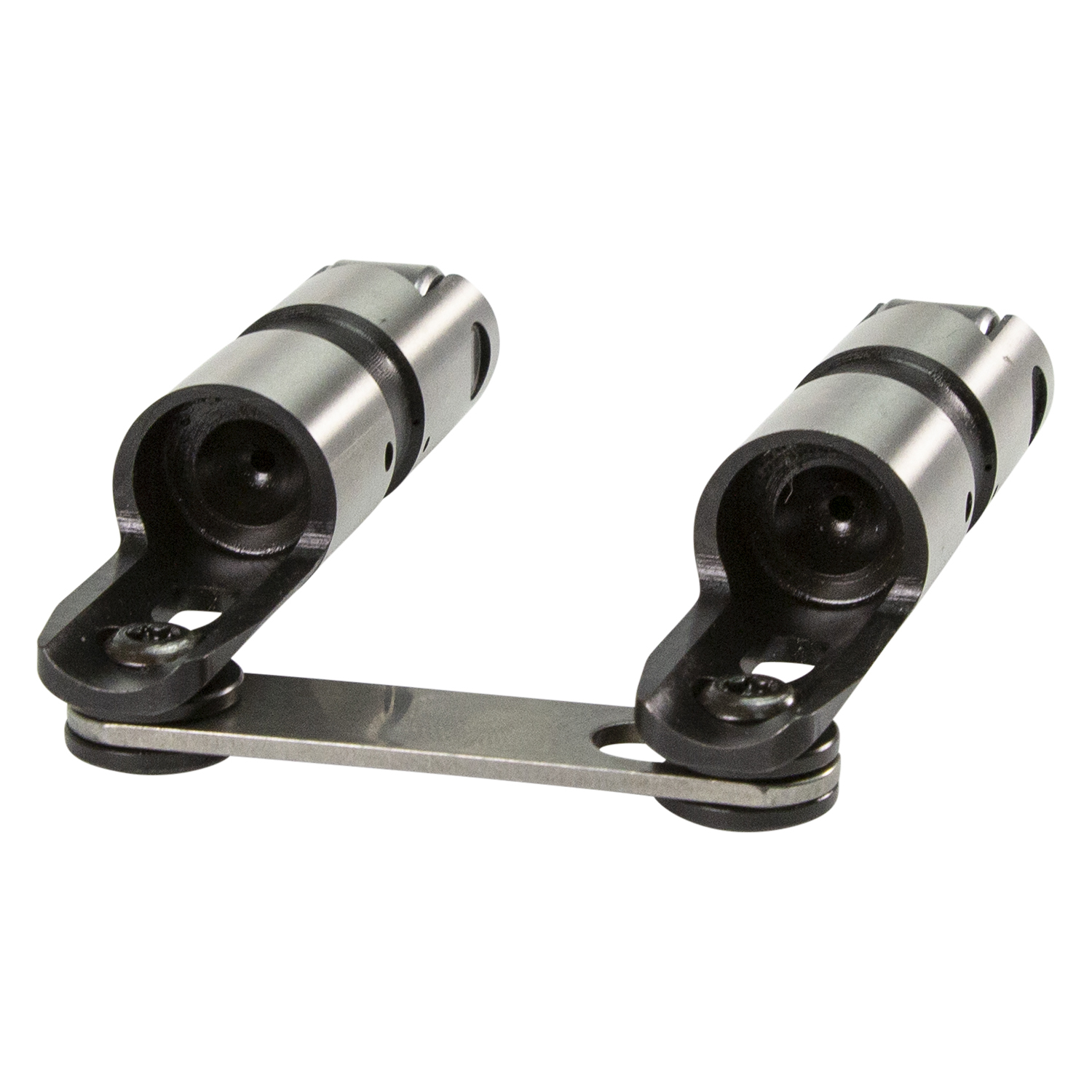

COMP CAMS 96956-16 LS1 LS2 LS3 SOLID MECHANICAL ROLLER TIE BAR LIFTERS DROP IN.
COMP Cams Sportsman Solid Roller Lifters
COMP Cams Sportsman solid roller lifters feature premium-quality, high-value components designed for sportsman and professional racing, along with high-end street machines. They're available in both needle-bearing and bushing configurations. Each design features two pressurized EDM oil feeds, as well as an edge-orifice feed to the wheel. This delivers a more reliable oil feed than most competing options. COMP Cams Sportsman solid roller lifters are also designed with a shallower oil band than competitors' versions for increased strength and rigidity, while internal machining helps to reduce weight. The body utilizes a skirted wheel that strengthens the lifter ears, and the skirt also provides more contact area with the lifter bore for further lifter stabilization. In addition, staked axles eliminate clips and provide robust axle retention. This feature increases the stiffness of the lifter ears and helps to prevent the ears from spreading. The COMP Cams Sportsman solid roller lifters are built from 8620 premium steel for increased strength and wear resistance and they feature a captured, stainless steel link bar design. The lifters also utilize a tapered and slotted link bar tower for reduced weight and improved aesthetics.
Lifter Diameter: 0.842”
Lifter Type: Solid Roller
Lifter Series: Sportsman
Lifter Weight: 137
Lifter Seat Height: 2.21
Pushrod Seat Location: Centered
Bushing/Needle Bearing: Needle Bearing
Specifications
SKU | 96956-16 |
Barcode # | 036584318040 |
Brand | COMP CAMS |
Weight | 137 |
Lifter Diameter | 0.842 |
Lifter Type | Solid Roller |
Lifter Series | Sportsman |
Bushing Or Needle Bearing | Needle Bearing |
Pushrod Seat Location | 8 Pairs Centered |
Wheel Diameter | 0.75 |
