Description

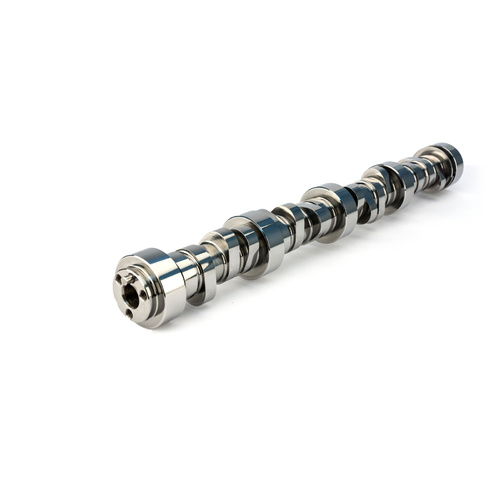

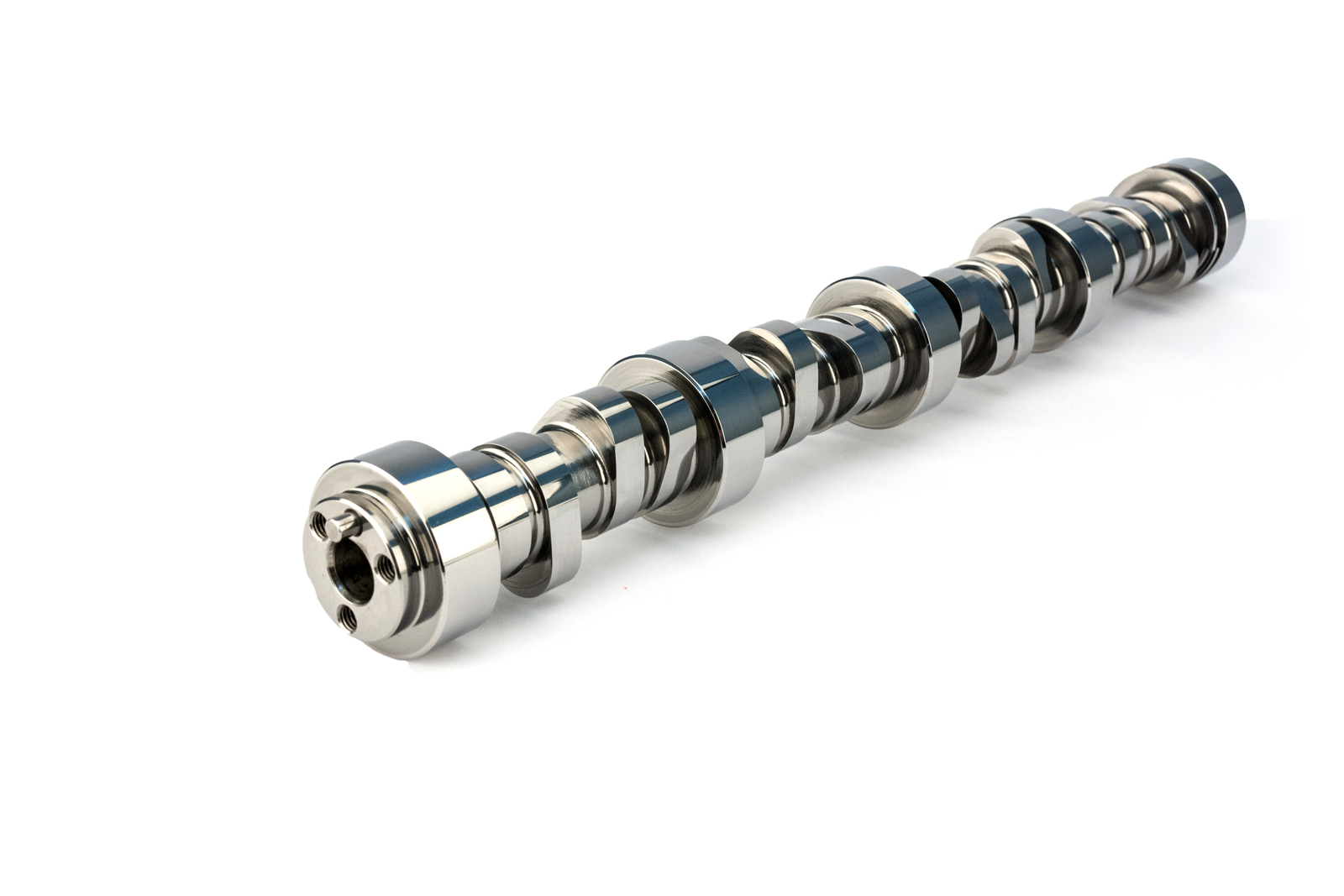

Lunati Camshaft, suits 5.7L & 6.0L Cathedral Port, Good street/strip camshaft with wide range. Must have substantial airflow upgrades, inlet and exhaust.
Hydraulic Roller Camshaft.
Fair idle, strong bottom and mid range,works with small nitrous kit or up to 8 psi of boost from a Turbo or Blower.

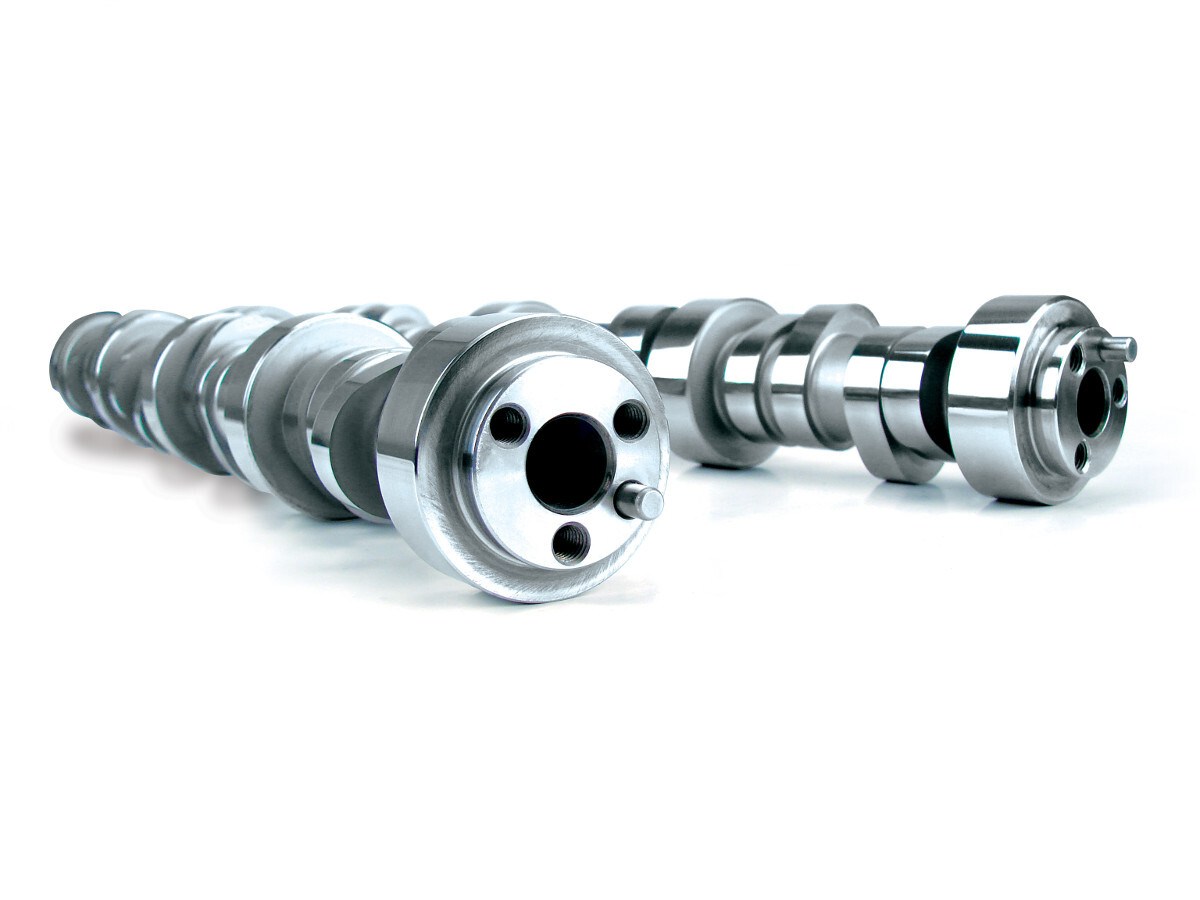

Lunati's Black Magic series offers incredible power at a great price that won't break the bank. These proven lobe designs ensure reliability while still making great power and sound. Lunati's in-house all black surface finish adds durability, hardness and surface area to the cams, as well as a unique and awesome look. The finish remains intact after initial break-in and aids in identifying the "surface ride" area of the cam while the cam "stages" simplify the selection process for your specific performance goals. Black Magic Camshafts are an excellent choice for a wide range of GM LS performance applications. Only "black magic" can provide this kind of power at this price
Advertised Duration (Int/Exh): 281/286
Duration @ .050 (Int/Exh): 226/231
Gross Valve Lift (Int/Exh): .605"/.598"
LSA: 113
ICL: 109
RPM Range: 2200-6800
Specifications
| SKU | 20540TBS2LUN |
| Brand | LUNATI |
| Lifter Type | Hydraulic Roller |
| Cam Type | Hydraulic Roller |
| Camshaft Series | LSR Cathedral Port Small Displacement/Max Torque |
| Basic Operating Rpm Range | 1,900-7,000 |
| Lifters Included | No |
| Valve Springs Required | Yes |
| Camshaft Gear Attachment | 3-Bolt |
| Camshaft Material | Billet Steel |
