6.125" Connecting Rods, LS1 Conrods SBC CHEV LS1 LS2 LS3 W/ ARP 2000 Rod Bolts H Beam 6612521A - Voodoo

LUNATI H-Beam 6.125 Connecting Rods - Suits the LS Connecting Rods.

Features: ARP 2000 Rod bolts.

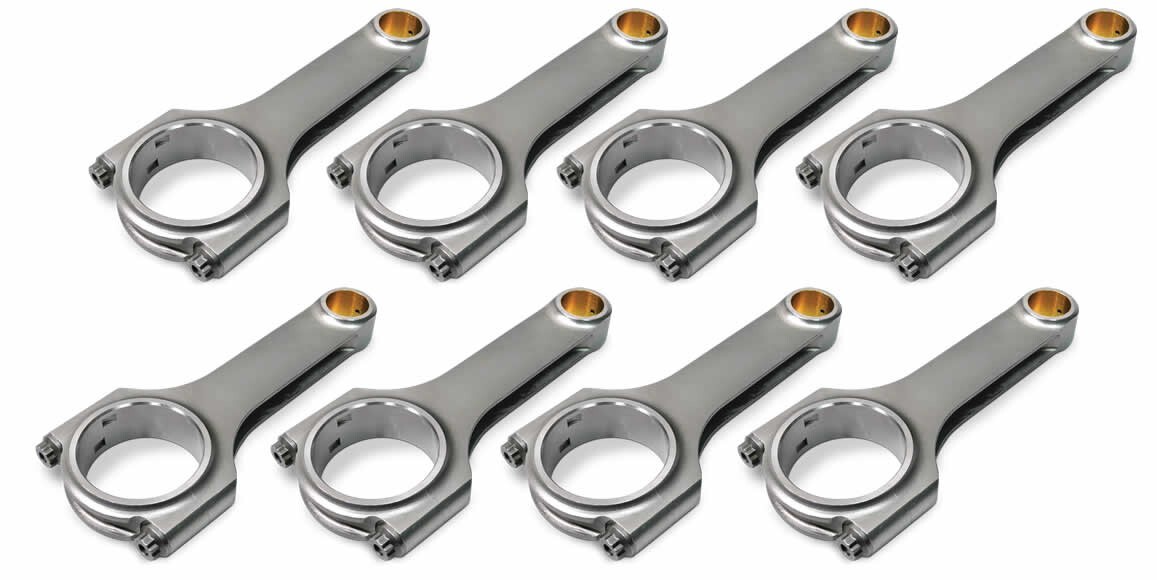

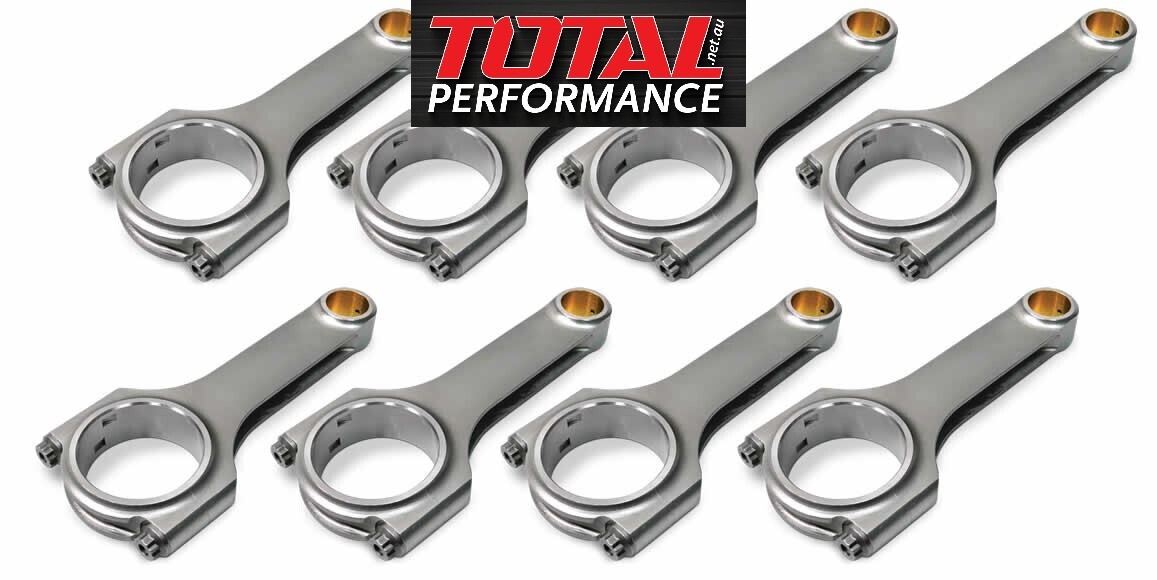

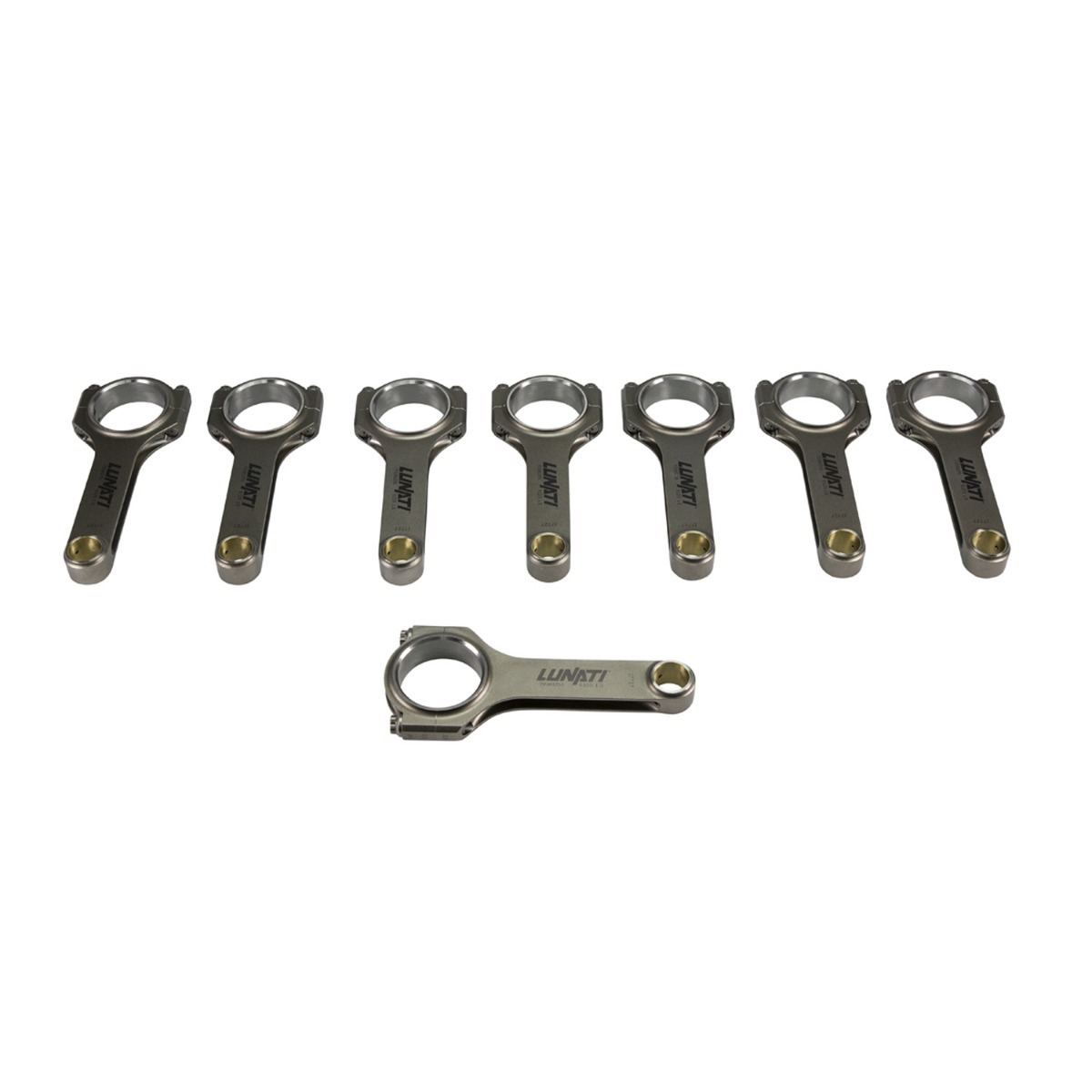

Lunati 4340 forged steel H-beam connecting rod set for Chevrolet small block LS1, LS2, LS6 applications; Rod Length: 6.125 in; Big End Diameter: 2.100 in; Small End Diameter: 0.928 in; Weight: 655 grams

These LS connecting rods are the H-beam style & strongest Scat connecting rods available. These Scat H-beam connecting rods are perfect for supercharged and nitrous LS applications. These rods incorporate a special doweled cap for specific cap-to-rod alignment and are profiled with extra clearance for stroker applications. Popular upgrade over stock to 6.125 connecting rods. These conrods are know as LS1 conrods, however fit LS2 LS2 standard strokes (piston pin height change required) and LS strokers.

Scat short part number: 6612521A

Connecting Rod Length Center to Center (in.):   6.125 in.

Connecting Rod Beam Style:   H-beam

Connecting Rod Material:   Forged 4340 steel

Connecting Rod Finish:   Shot-peened and tumbled

Wrist Pin Style:   Floating

Rod Journal Diameter (in):   2.100 in.

Big End Bore Diameter (in.):   2.2250 in.

Big End Width (in.):   0.940 in.

Pin End Bore Diameter:   0.927 in.

Clearanced for Stroker:  Yes

Cap Retention Style:   Cap screw

Connecting Rod Bolt Brand:  ARP

Connecting Rod Bolt Diameter:   7/16 in.

Connecting Rod Bolt Material:   ARP2000 alloy

Fastener Tensile Strength (psi):   200,000 psi

Connecting Rod Bolt Head Style:   12-point

Weight Matched Set:   Yes

Quantity:   Sold as a set of 8

Notes:   Custom pistons required when using connecting rods with custom wrist pin diameter and longer than stock length.
